Simrad S2009 User Manual

View options

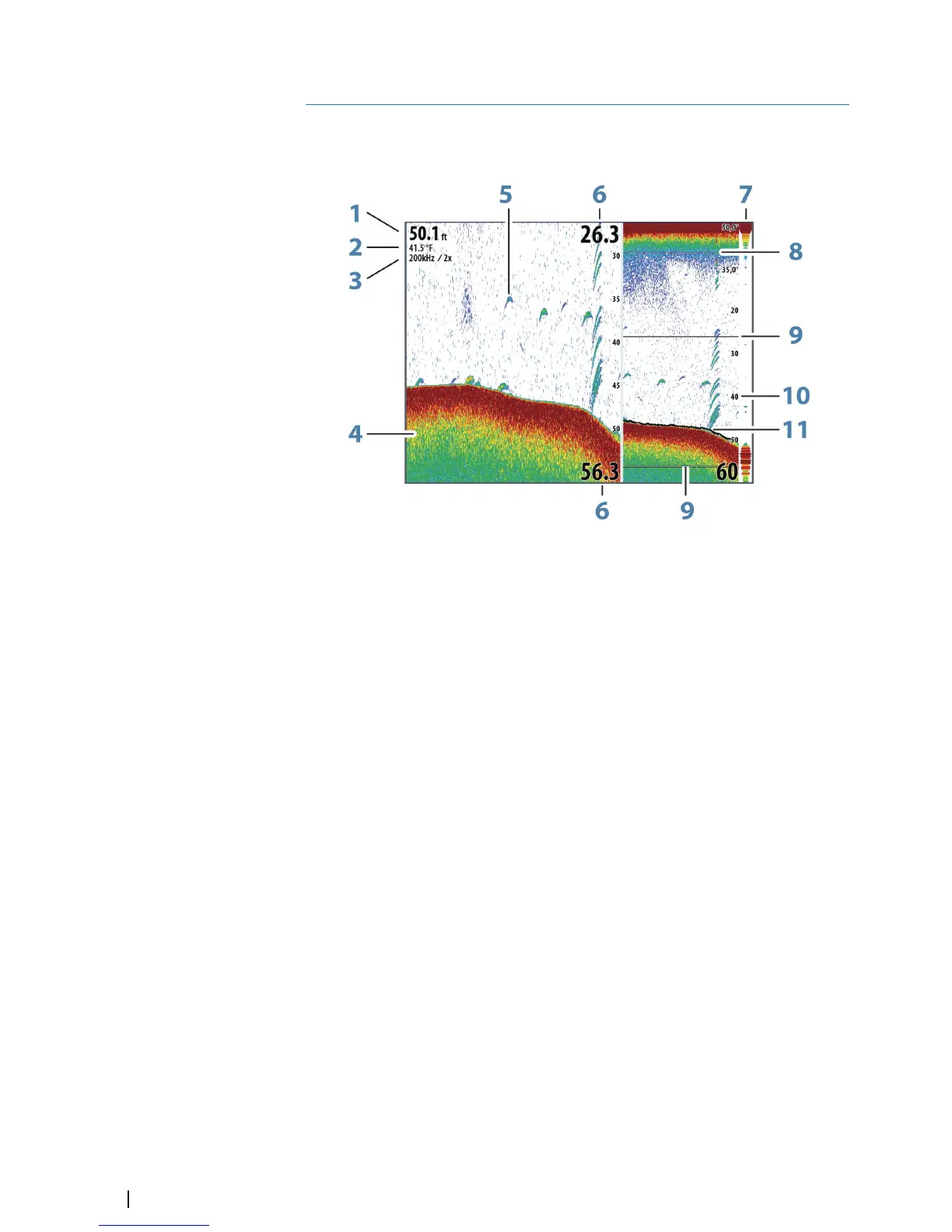

The View menu allows you to display a split image, choose a predefined pallete, to change a
specific color on the image to white, to illustrate changes in water temperature, to show a
bottom line, amplitude scope and zoom bar.
1 Depth
2 Temperature
3 Frequency / Zoom level
4 Bottom
5 Fish arches
6 Upper and Lower range
7 A-Scope*
8 Temperature graph*
9 Zoom bars*
10 Range scale
11 Bottom line*
* Optional image items.
Ú
Note: You can turn the optional image items on/off individually as described in the
following sections.
4
16
View options | S2009-2016 Fish Finder User Manual

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
