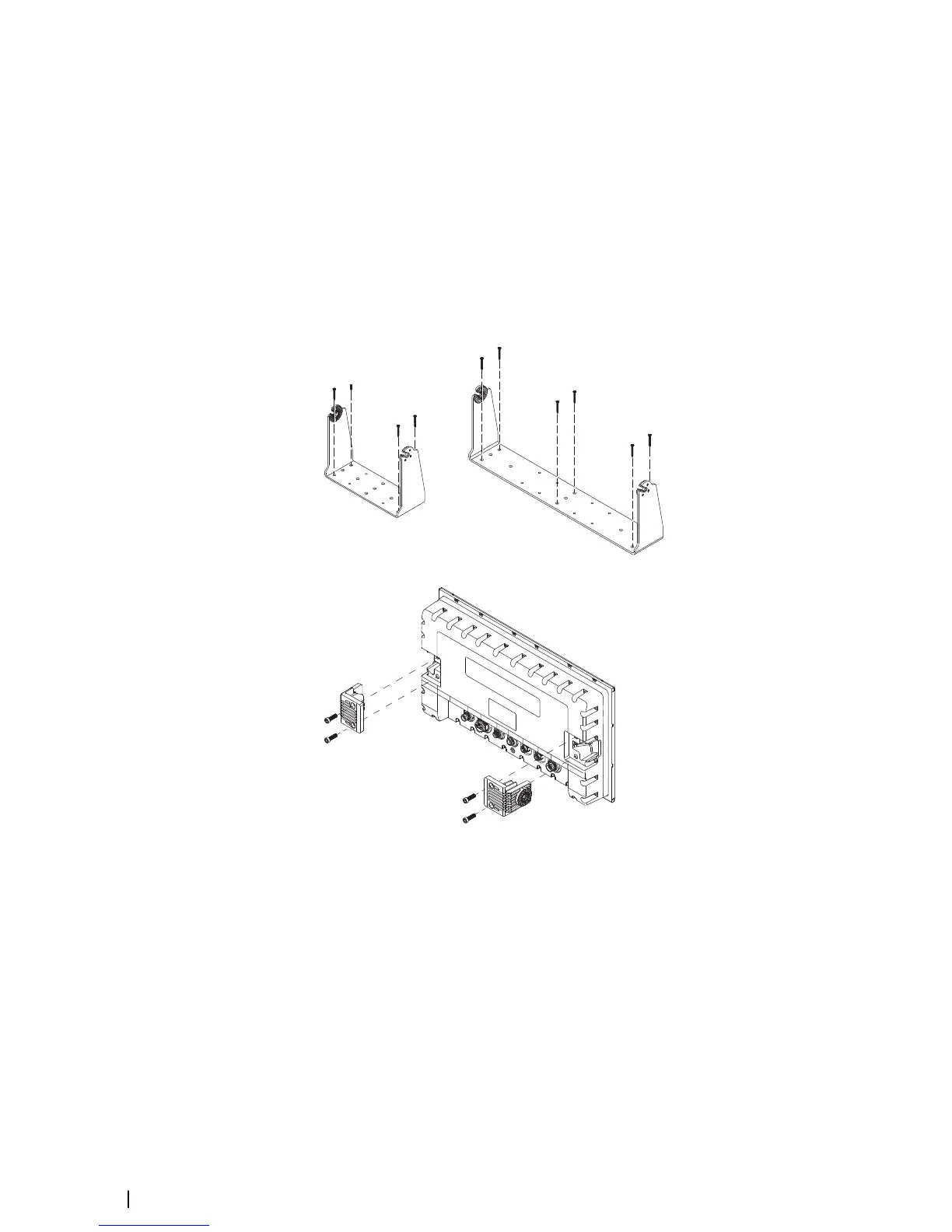

U-bracket mounting
1. Place the bracket in the desired mounting location. Ensure that the chosen location has
enough height to accommodate the unit fitted in the bracket, and allows tilting of the
unit. Also adequate space is required on both sides to allow tightening and loosening of
the knobs.
2. Mark the screw locations using the bracket as a template, and drill pilot holes. Use
fasteners suited to the mounting surface material. If the material is too thin for self-
tappers, reinforce it, or mount the bracket with machine screws and large washers. Use
only 304 or 316 stainless steel fasteners.
3. Screw down the bracket.
4. (16" units only) Using the screws provided in the gimbal kit, fasten the gimbals to the unit.
5. Mount the unit to the bracket using the knobs. Hand tighten only. The ratchet teeth in the
bracket and unit case ensure a positive grip and prevent the unit from changing from the
desired angle.
26
Installation | S2009-2016 Fish Finder User Manual

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
