Simrad S2009 User Manual

Simulator
The simulation feature lets you see how the unit works in a stationary position and without
being connected to the transducer, or other devices.
Use the simulator to become familiar with your unit before using it on the water.
The status bar indicates if the simulator is toggled on.

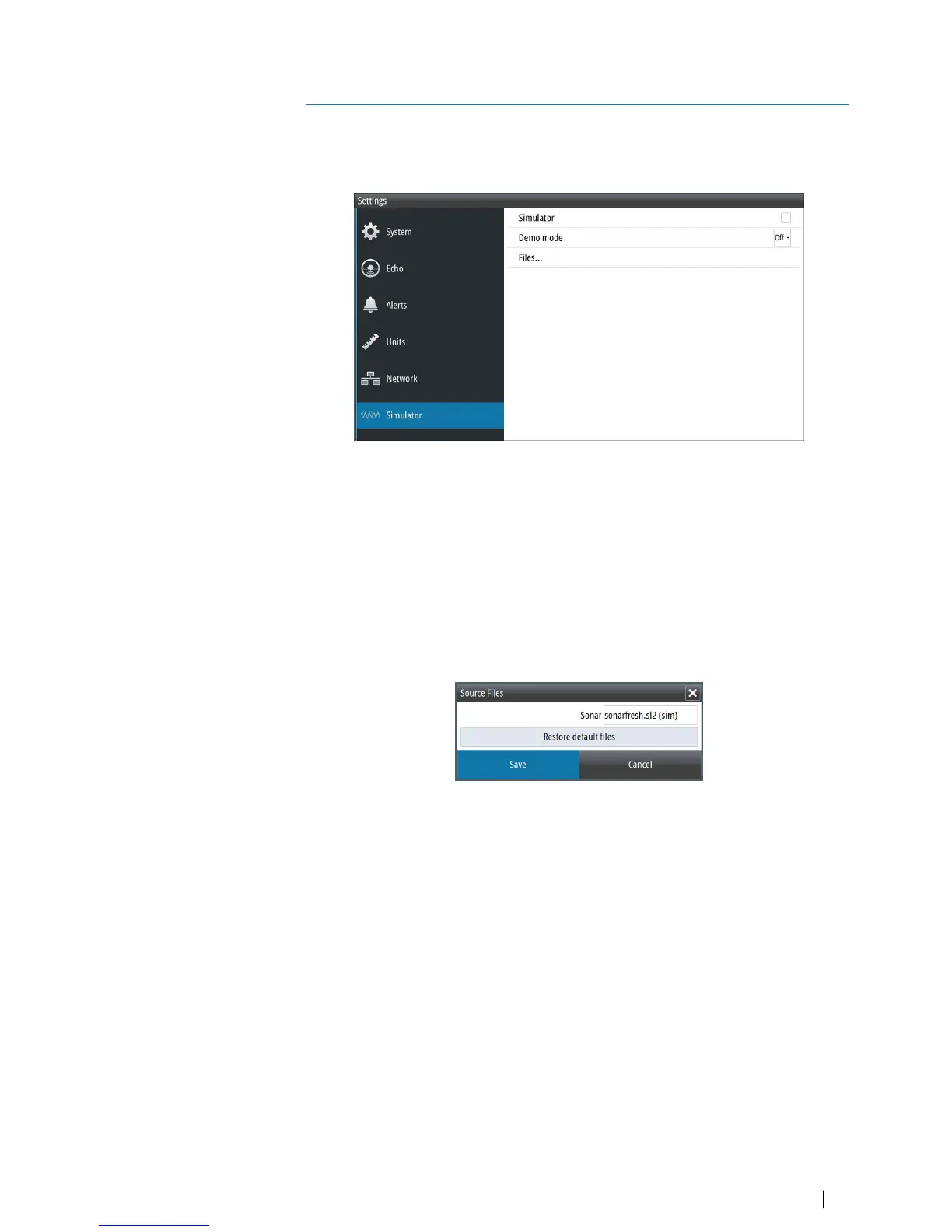

Turning the simulator on/off
Select the simulator option to toggle the simulator on/off. A check-mark in the check box
indicates the simulator is running.
Simulator source files
You can select which data files are used by the simulator. A set of source files is included in
your system, and you can import files by using a card inserted into the card reader. You can
also use your own recorded log data files in the simulator.
8
Simulator | S2009-2016 Fish Finder User Manual
23

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
