Transducer type
Transducer type is used for selecting the transducer model connected to the sonar module.
The transducer selected will determine what frequencies the user can select during sonar
operation. In some transducers with built-in temperature sensors, the temperature reading
may be inaccurate or not available at all if the wrong transducer is selected. Transducer
temperature sensors are one of two impedances - 5k or 10k. Where both options are given
for the same model transducer, refer to paperwork supplied with transducer to determine
impedance.

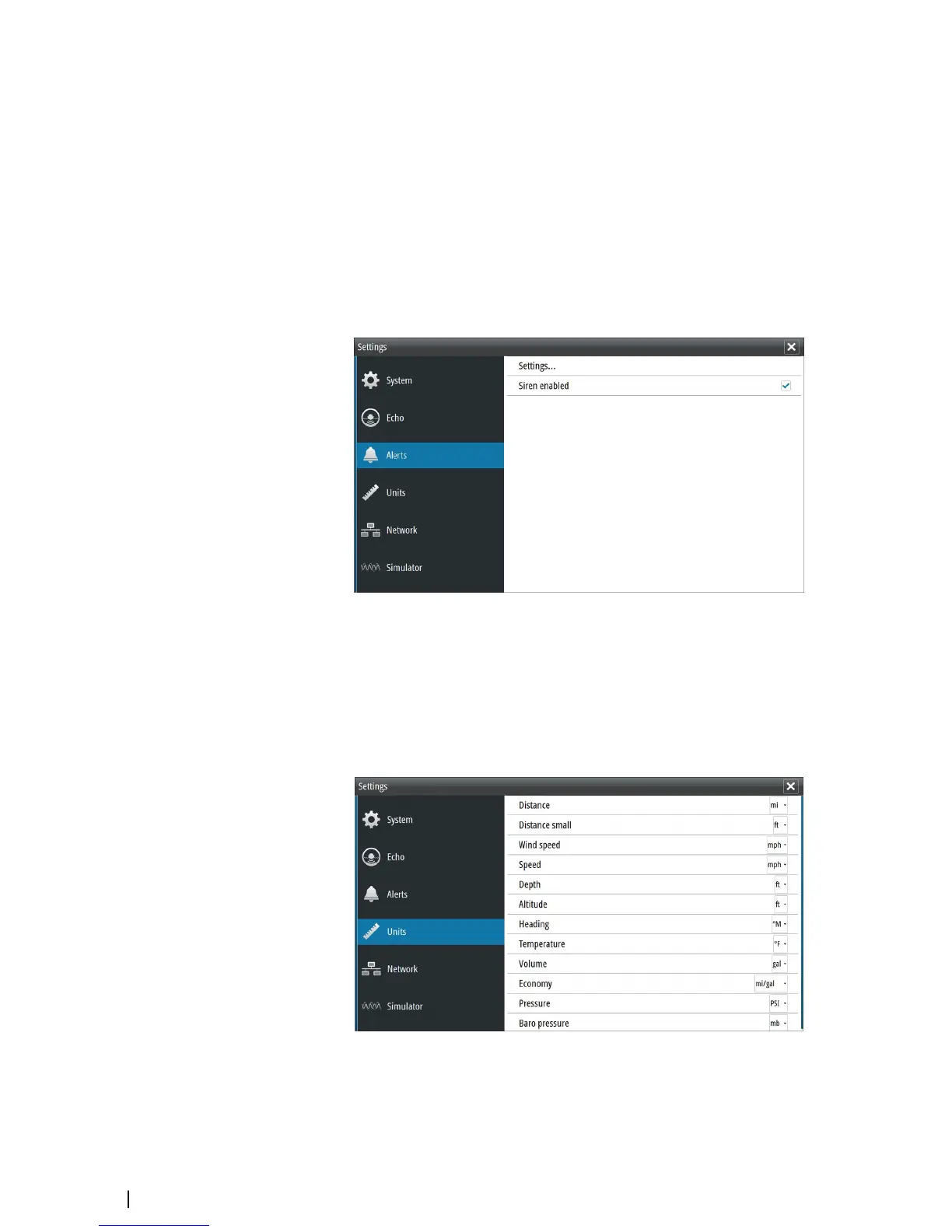

Alerts settings
You can access the Alerts settings dialog from the Alerts option in the Main menu and from
the Settings option in the Main menu.
Use the Alerts settings dialog to turn on/off alerts and set conditional values. You can also
enable the internal siren.
For more information about the alert message pop-up, and active and historical alert
messages, refer to "Alerts" on page 19.
Units settings
Use the units settings dialog to specify the units of measure displayed.
Network settings
The unit has Ethernet, NMEA 0183 and NMEA 2000 port connections on the back allowing
you to connect the unit to your network. Use the Network settings dialog to setup networks
and connect to network devices.
40
Software Setup | S2009-2016 Fish Finder User Manual
