Simrad S2009 User Manual

The user interface

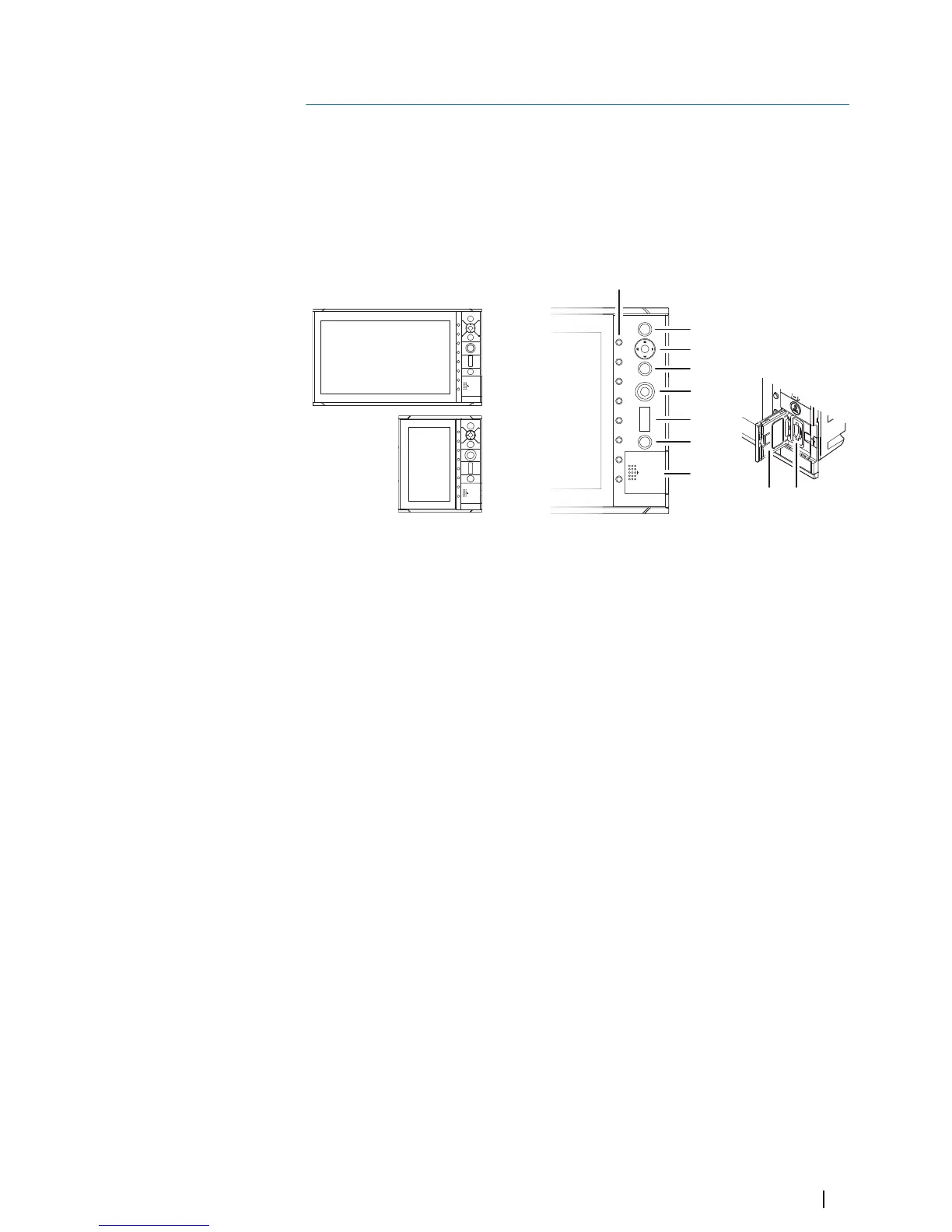

Front panel and keys
Ú
Note: The S2009 Fish finder unit has a 9" display in portrait orientation. The S2016 Fish
finder unit has a 16" display in landscape orientation. The keypad and card reader on
portrait and landscape units are the same. The diagrams and screenshots in this manual
are taken from the S2016.
1
2
3
4
5
6
7
8
8 9
1 Softkeys
Press a key once to access options for the corresponding function.
2 Enter key
Press to select an option or to save settings.
3 Arrow keys
Press to activate the cursor and to move the cursor on the image.
Menu operation: press to navigate through menu items and to adjust a value.
4 Exit key
Press to return to previous menu level or to exit a dialog.
5 Rotary knob
Rotate to scroll through menu items and to adjust values. Press to select or save
settings.
6 Range keys
Press the + or the - key to increase or decrease the range.
7 Power key
Press once to turn ON the unit.
Press and hold to turn OFF the unit.
Short press when the unit is ON opens the System Controls dialog.
8 Card reader door
9 SD card reader
1
The user interface | S2009-2016 Fish Finder User Manual
7

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
