Simrad S2009 User Manual

Save to
Select whether the recording is to be saved internally or to a memory card in the card reader.
Bytes per sounding
Select how many bytes per seconds that are to be used when saving the log file. More bytes
yield better resolution, but cause the record file to increase in size compared to using lower
byte settings.
Time remaining
Shows the remaining allocated space available for recordings.

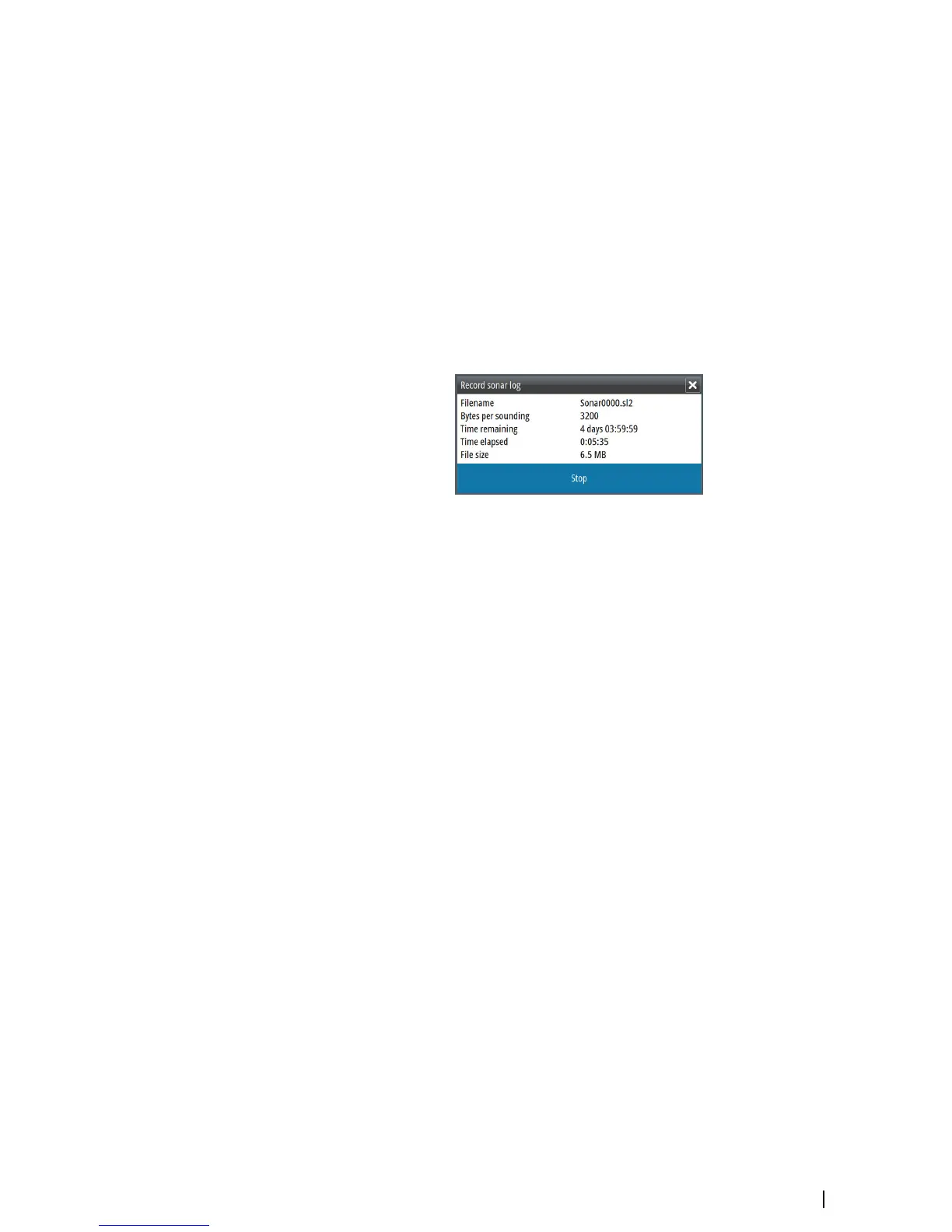

Stop recording log data
Select Stop in the Record sonar log dialog to fully stop the recording of all log data. The
Record sonar log dialog is activated by selecting the record option in the Advanced menu.
Viewing recorded log data
Use the Simulator to view recorded logs. Both internally and externally stored sounder
records may be reviewed when selected in the simulator.
You stop viewing the recorded image by turning off the simulator. Refer to "Simulator" on page
23.
Advanced options | S2009-2016 Fish Finder User Manual
21

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
