Simrad S2009 User Manual

1
3
2
4
ETHERNET NMEA2000 POWER
NMEA0183 ECHOHDMI
HDMI-1 DVI-2
VIDEO-3 VIDEO-4 NMEA2K
SERIAL USB
POWER

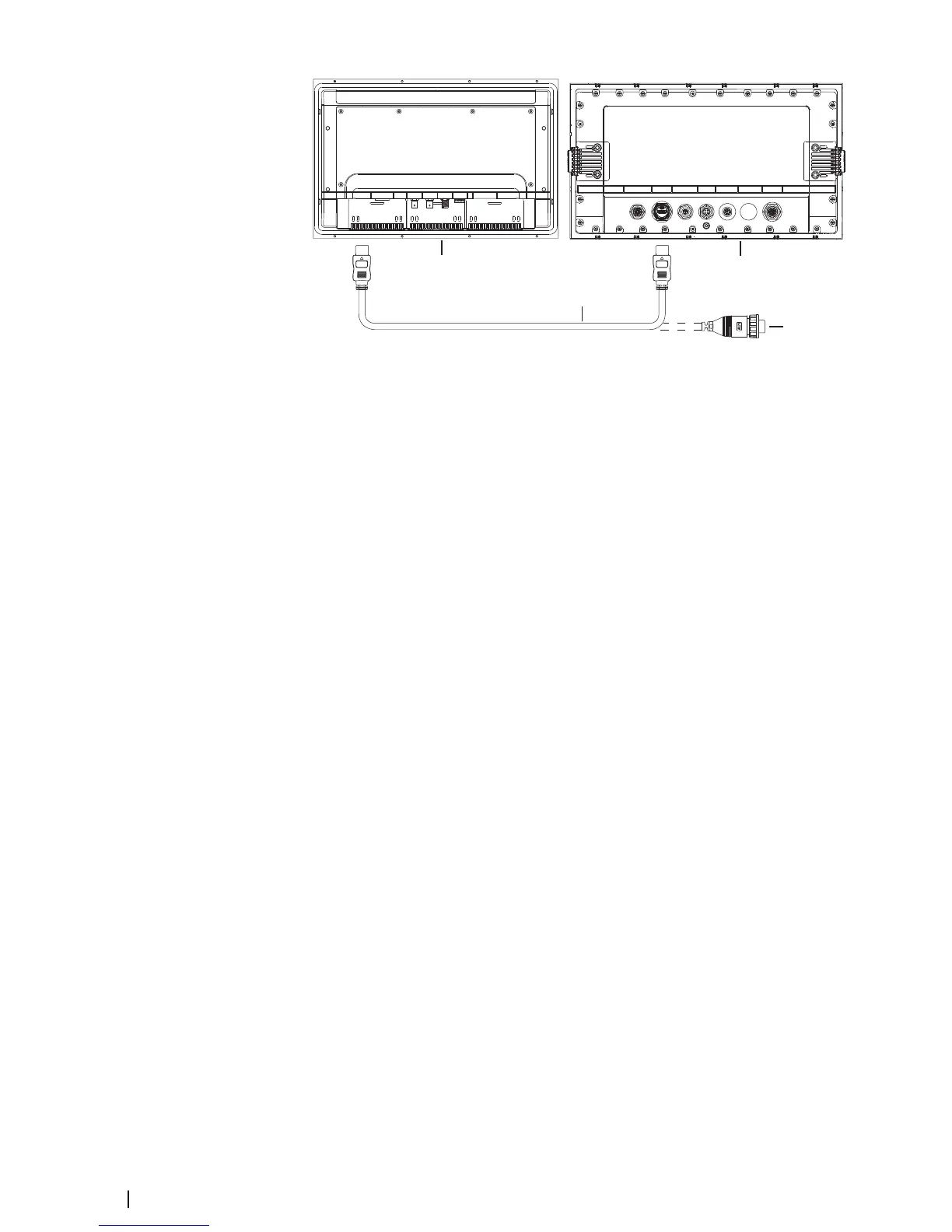

1 MO series monitor
2 HDMI cable
3 S2016
4 HDMI cable - waterproof connector (use in exposed installations)
Ú
Note: While the HDMI standard does not state maximum cable length, signal may be
compromised on long runs. Only use Navico or other high quality HDMI certified cables.
3rd party cables should be tested before installation. On runs over 10m it may be
required to add an HDMI amplifier or use HDMI-CAT6 adaptors.
Ú
Note: Some HDMI TV displays may apply over-scan, which will in effect crop the image
possibly causing loss of important content. Check the display manual for an option to
disable over-scan or adjust scaling
34
Installation | S2009-2016 Fish Finder User Manual

Simrad S2009 Specifications

General

Display Size	9-inch
Display Type	LCD
Resolution	800 x 480 pixels
Interface	Keypad
Waterproof Rating	IPX7
NMEA 2000 Connectivity	Yes
Display	Color LCD
Operating Voltage	10-31.2 V DC
Operating Temperature	-15°C to +55°C
Storage Temperature	-30°C to 70°C
Ethernet Ports	1
NMEA 0183 Ports	1 x NMEA 0183
Frequency	50 kHz, 200 kHz
Depth Range	Up to 3000 m
Transducer Type	Compatible with multiple transducer options
