MULTIFUNCTION DISPLAY - NSS8
MARK
MOB
GOTO
MENU
PAG ES
STBY
IN
MOB
OUT
AUTO
SIMRAD
NSS 7
P
U
S
H
T
O
E
N
T
E
R
12 23
4
5
6
7
8
9
10

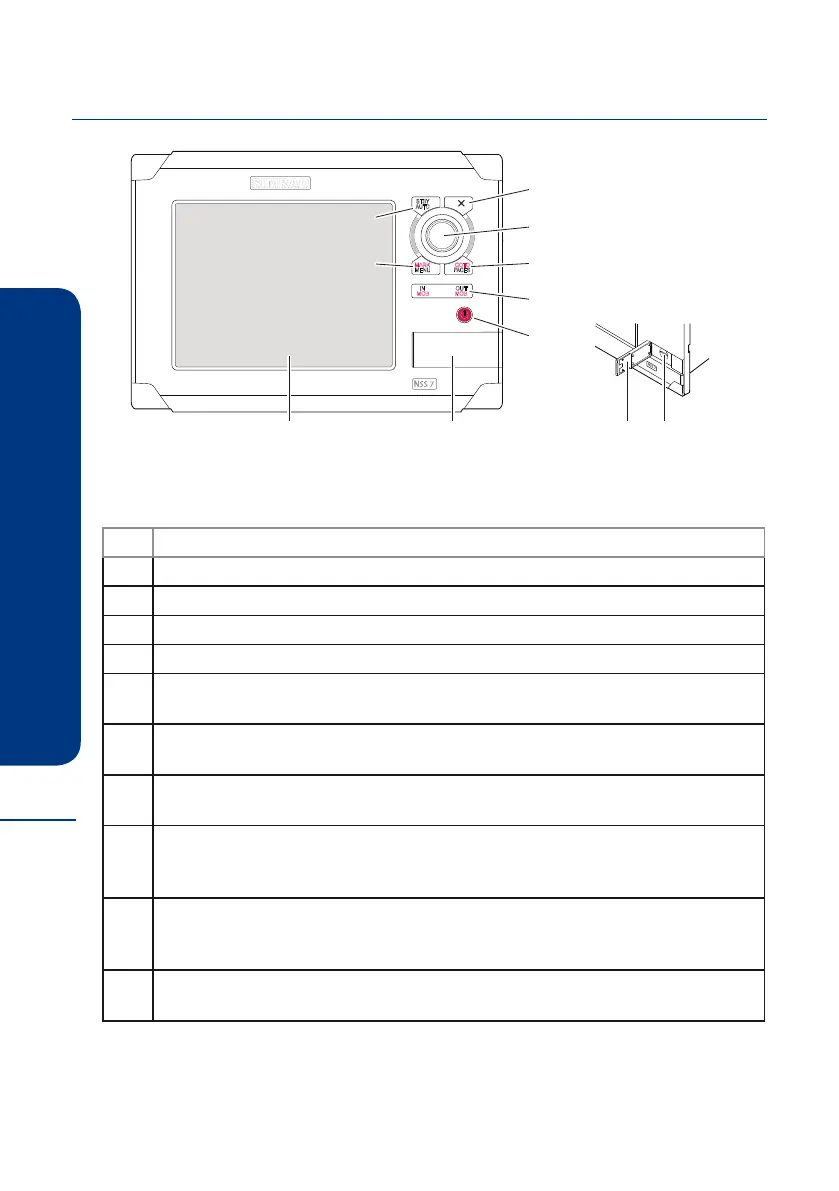

No. Description
1 Touch screen.
2 Chart card reader door.
3 Micro-SD Card reader.
4 STBY Auto key. Used for Autopilot operation.
5 MARK / MENU key. A short press activates active panel’s menu.
A long press places a mark at vessel’s position.
6 X key. Used to close dialogs, to return to previous menu level and to re-
move the cursor from the screen on chart, radar and echosounder panels.
7 Rotary knob. Used for zooming chart and for maneuvering in menus.
Press rotary knob to enter selection.
8 GOTO / PAGES key. A short press displays the Pages (Home) panel.
Repeated short presses toggles between Pages, Tools, and Settings pan-
els. A long press displays the GoTo menu.
9 IN / OUT key. Zoom key for chart, radar and echosounder panels.
A simultaneous press on both key ends will position a MOB mark at ves-
sel’s position.
10 Power key. Used for turning the unit ON/OFF and for brightness adjust-
ment.
