SIMNET -
EXAMPLES
OR
12V DC
OR
12V DC

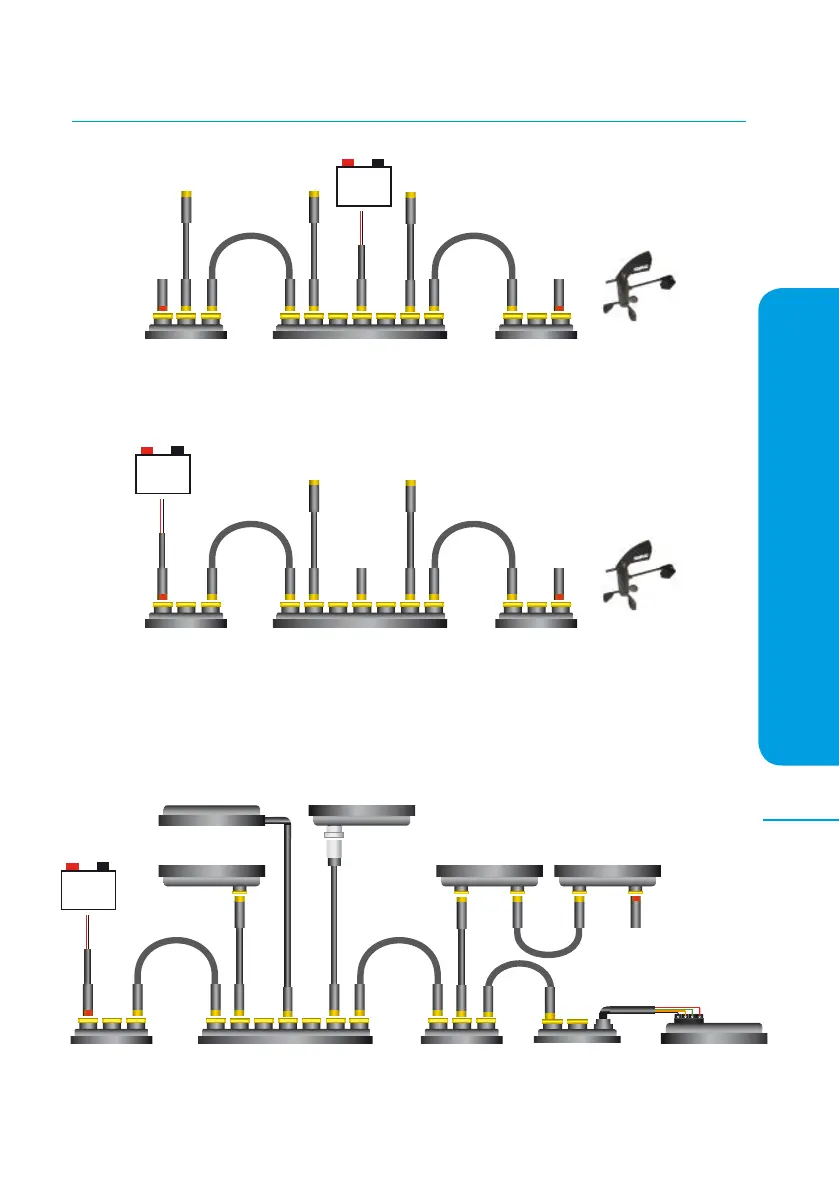

Example 1: SimNet with one terminator (or IS20 masthead unit) on each extremity and pow-
ered with SimNet power cable without terminator (yellow).
Example 2: SimNet with one terminator (or IS20 masthead unit) on one extremity and powered
with SimNet power cable with terminator (red) at the other extremity
.
Example 3: SimNet with different type connections and "Daisy Chain".
12V DC
Daisy Chain
5
7
