Simrad TP32 User Manual

14 |
Installation
Fitting the Tillerpilot
The Tillerpilot is a very sophisticated piece of equipment and,
therefore, in order for it to function to its full capabilities, it is
essential that it is installed correctly. Please read this section
thoroughly before attempting installation and use.

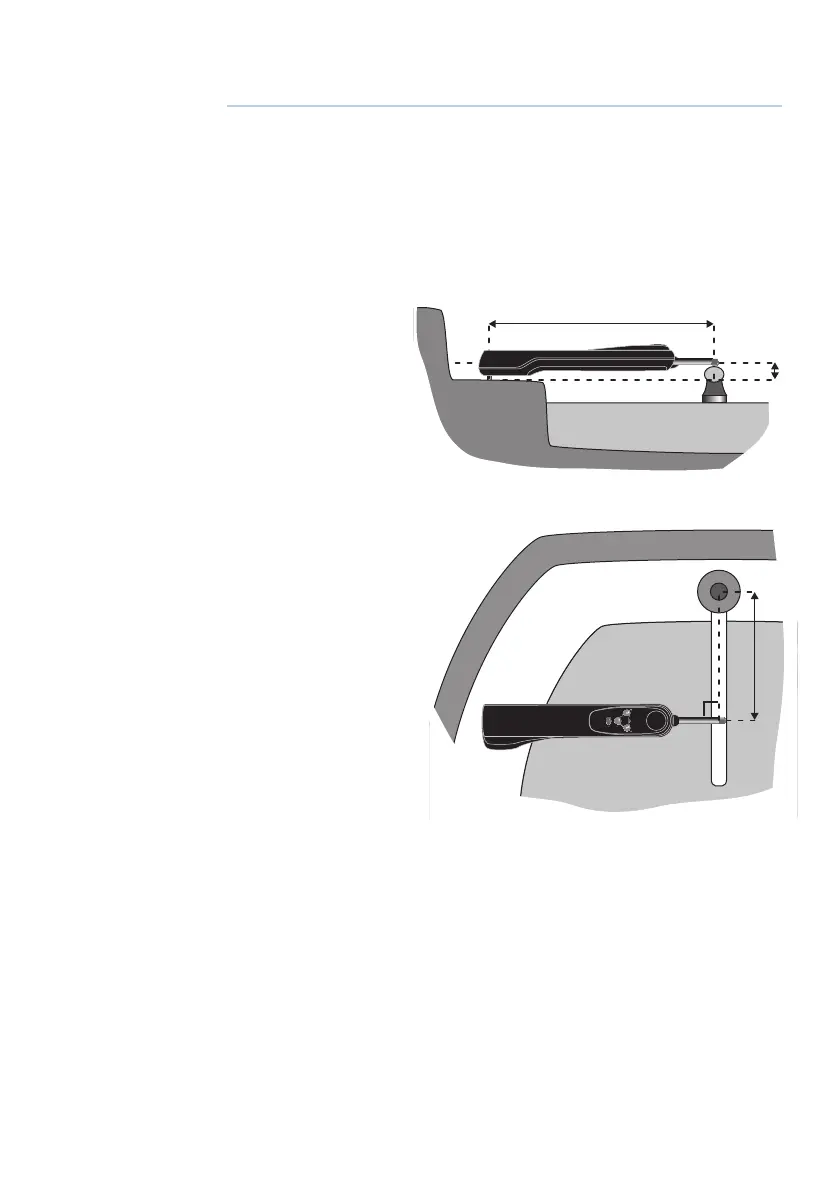

The Tillerpilot
should be
horizontally level
when fitted to the
tiller.
Hori-
zontal
Pushrod at
mid-stroke
595 mm (23.5in)
38 mm
With the tiller
amidships and
the pushrod in
the midstroke
position, the
Tillerpilot should
be exactly 90º to
the tiller.
STBY
90º
460 mm
(18in)
¼ Note: The pilot is factory preset to be mounted on the starboard
side as shown, but this can be reconfigured for port-side mounting
(see “Porthand mounting” on page 10).
The dimensions should be adhered to as closely as possible.
¼ Note: If the dimensions given are not practical for the vessel to
which the Tillerpilot is to be fitted, a range of fitting accessories are
available to facilitate correct installation. (Please refer to “Spares &
accessories” on page 27 for more details.)
5

Simrad TP32 Specifications

General

Type	Autopilot
Operating Voltage	12 V
Auto Seastate	Yes
Course Accuracy	± 1°
Operating Temperature	-15°C to +55°C
Keypad	Yes
Power Supply	12 V DC
Power Consumption	0.5 A
Peak Thrust	80 kg (176 lbs)
Display	No
