Simrad TP32 User Manual

28 |

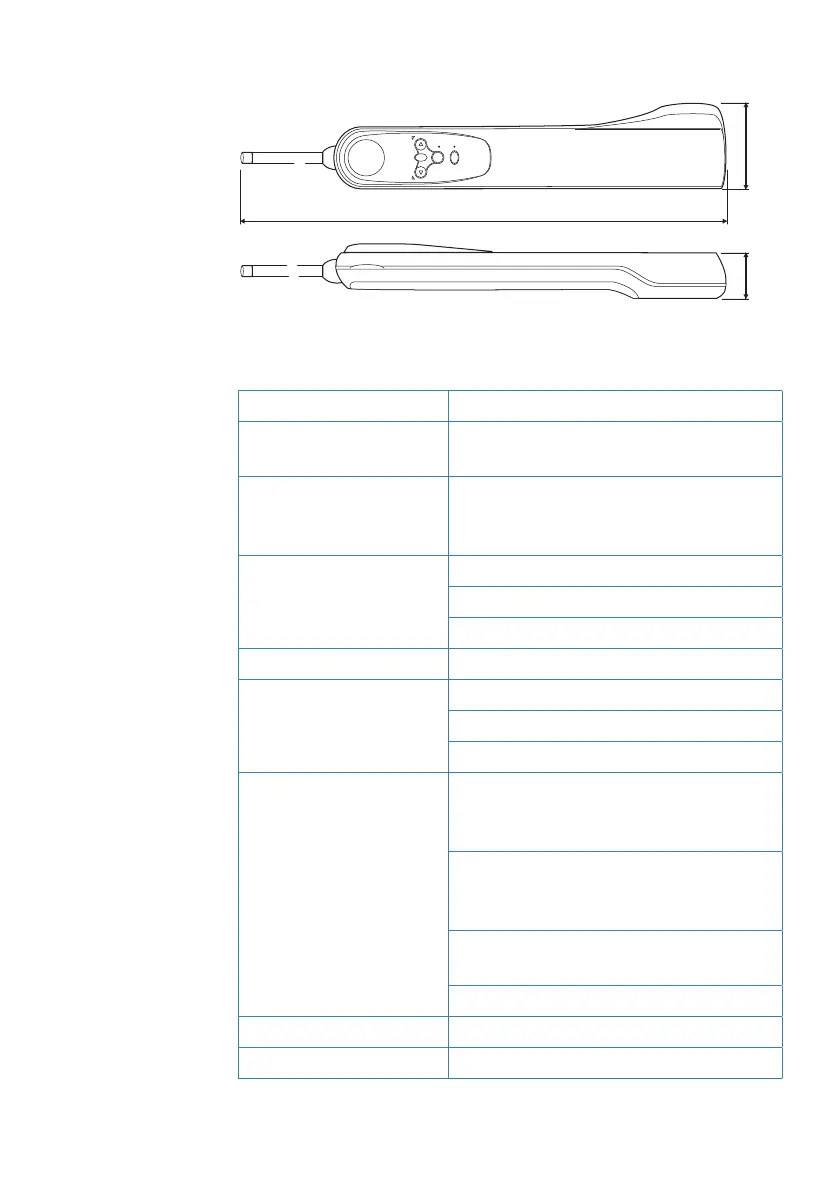

Dimensions
610 mm (24 in) MID STROKE
105 mm
(4 in)
60 mm
(2.3 in)
Specication
Supply Voltage 12 V (10–16 V) DC
Current Consumption
(Typical)
Standby – 60 mA
Auto – 500 mA
NMEA Format
(TP22 & TP32)
Compliant with NMEA0183 versions 2.0,
2.3 and 3.0 (4800 baud, no parity, 8 bits,
1 stop bit)
Drive System
TP10 – Screw thread
TP22 – Screw thread
TP32 – Recirculating ballscrew
Operating Stroke 250 mm (10 in)
Peak Thrust
TP10 – 65 kg (143 lbs)
TP22 – 70 kg (154 lbs)
TP32 – 85 kg (187 lbs)
Hardover time
0 kg P10 – 6.9 secs
TP22 – 6.9 secs
TP32 – 4.0 secs
20 kg TP10 – 8.0 secs
TP22 – 8.0 secs
TP32 – 4.7 secs
40 kg TP22 – 12.0 secs
TP32 – 6.0 secs
50 kg TP32 – 8.0 secs
Ambient Temp Range -10ºC to +55ºC (14ºF to 131ºF)
Mounting Starboard as default (can be reversed)
Accept no compromises, choose only quality marine autopilots.

Simrad TP32 Specifications

General

Type	Autopilot
Operating Voltage	12 V
Auto Seastate	Yes
Course Accuracy	± 1°
Operating Temperature	-15°C to +55°C
Keypad	Yes
Power Supply	12 V DC
Power Consumption	0.5 A
Peak Thrust	80 kg (176 lbs)
Display	No
