5.7 ASSEMBLING THE FLOOR SENSOR PLATE
NEVER go under the cabin to install or service the floor pressure sensor
system when the main power is ON. Serious injury can result if the system
malfunctions. Alway
Turn the main power off when it is necessary to go under the cabin.
Be careful not to damage the springs and micro switches on the bottom
frame when assembling the floor sensor plates
1) Make sure there are no objects or debris on top of the lower frame structure where
the floor plates must be installed.
2) Two persons should lift each of the 4 sections of the floor plate and place them in
the specified position. Be careful not to damage the springs and micro switches.
3) There are two guide holes in each of the floor plate sections as in the figure.
Insert the provided spacer, washer, and bolt assembly into each of the guide holes
and tighten securely.
4) After assembly, make sure each floor plate section moves about 1/2 inches up and
down freely.

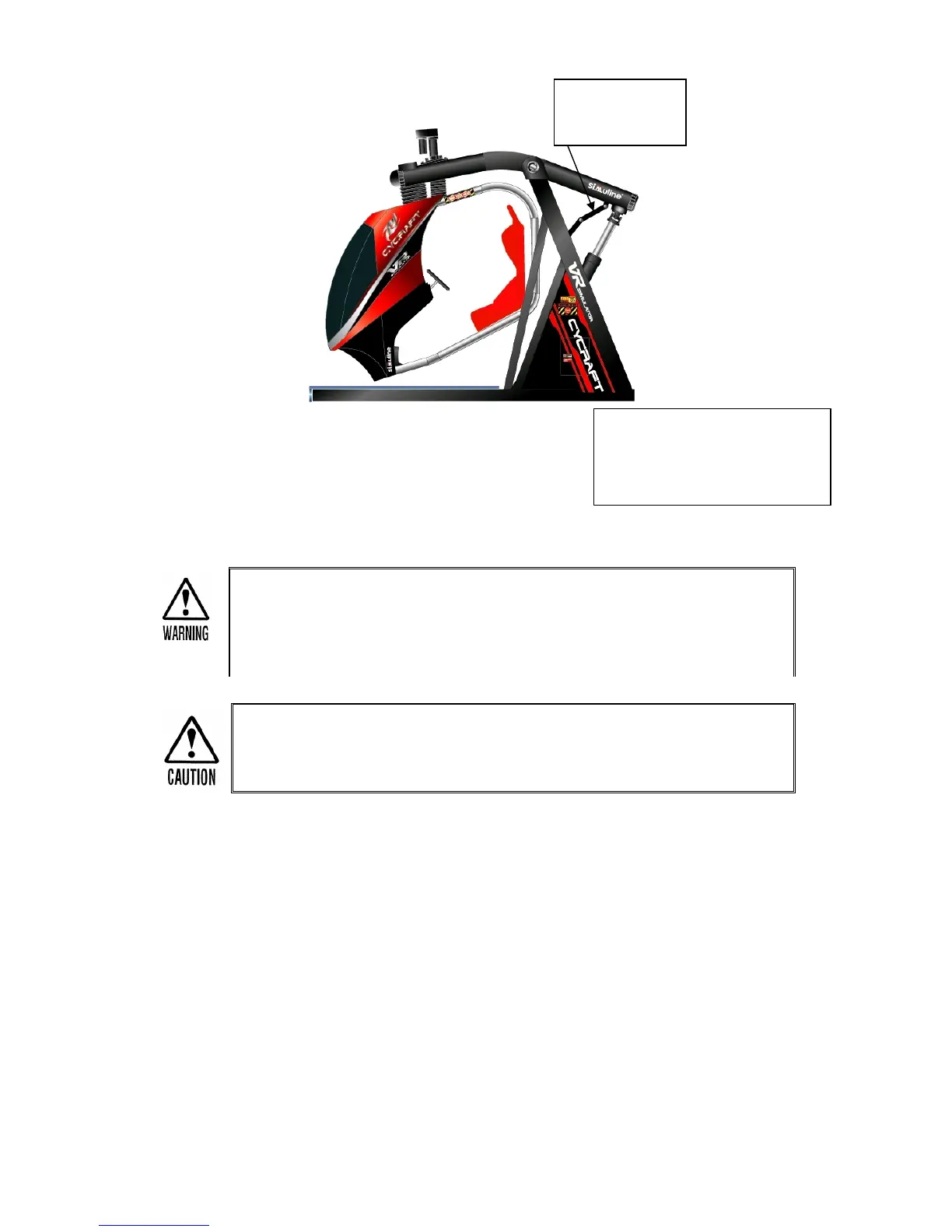

Figure of Cycraft after
assembling the heave
actuator and safety link
