7.7 LUBRICATING THE ACTUATORS
This maintenance work should be performed every 6 months.
1) Prepare grease gun with grease specified as below or equivalent:
KLUBER HIMONAX WS433
2) Take off the actuator bellows and bearing covers and identify the grease nipples

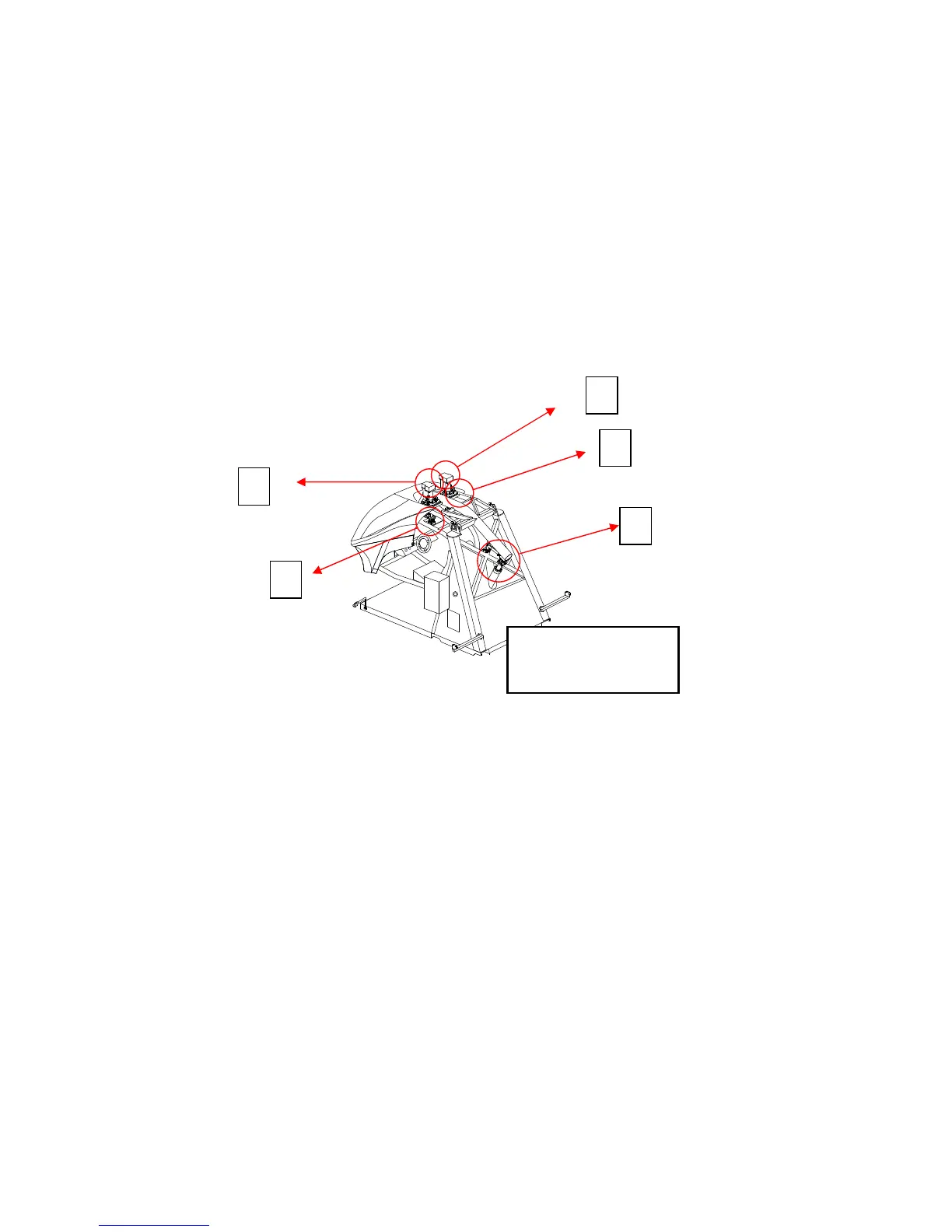

as shown in the figure below:
3) Inject grease in the amounts given in the table below for each of the components:
4
1
ACTUATOR GREASE
NIPPLE POSITIONS
2
3
5
