Page 62

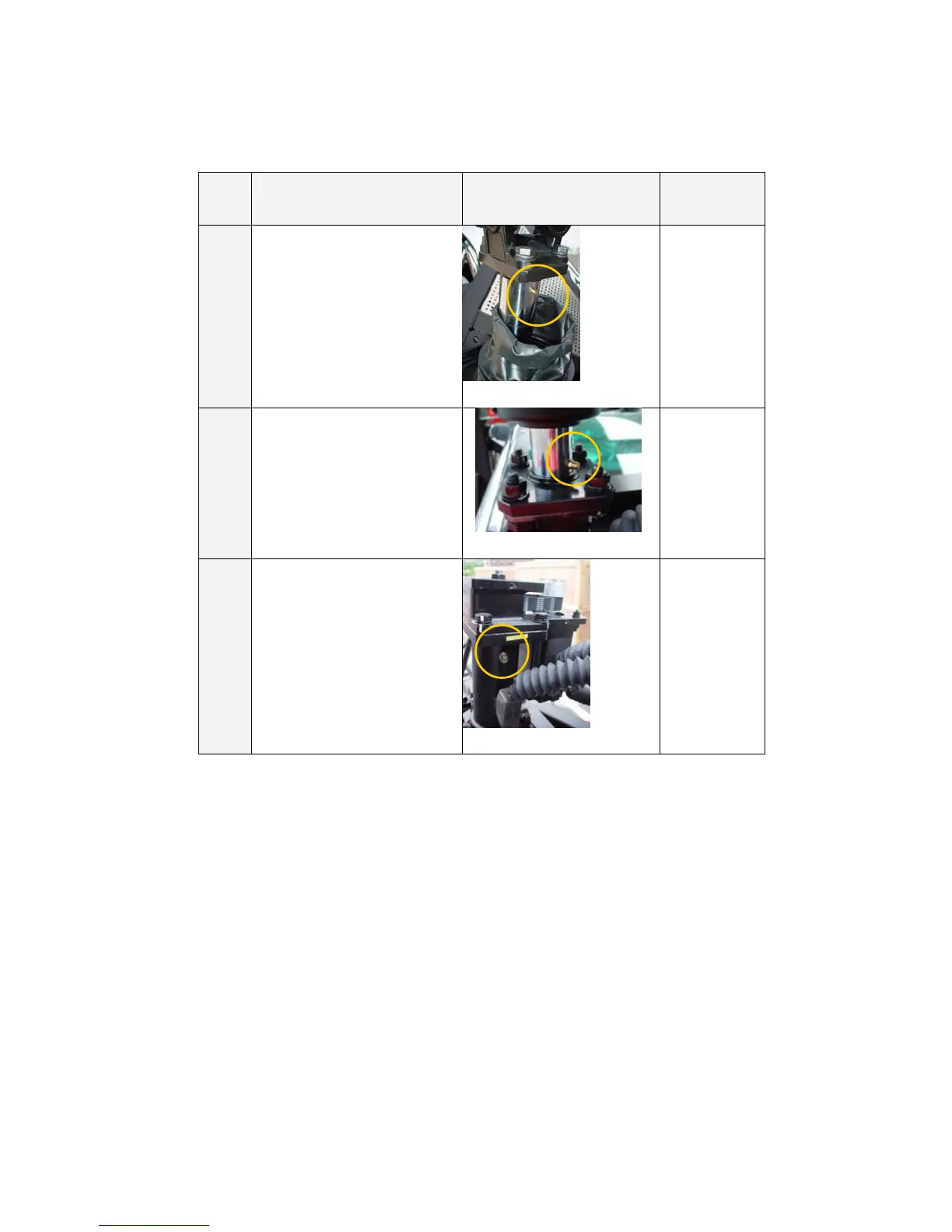

No. Part Picture Amount of
Grease
1 Heave Actuator Cylinder 60 grams
2,4 Top Actuators Cylinder 30 grams
3,5 Top Actuators Bearing 10 grams
4) Wipe away any excessive grease.
5) Play the game for at least three games and wipe away all excessive
grease.
6) Replace all covers and bellows.
7.8 LUBRICATING THE JOINTS
This maintenance work should be performed every 18 months.
1) Prepare grease gun with grease specified as below or equivalent:
KLUBER HIMONAX WS433
2) Identify the grease nipples as shown in the figure below.
