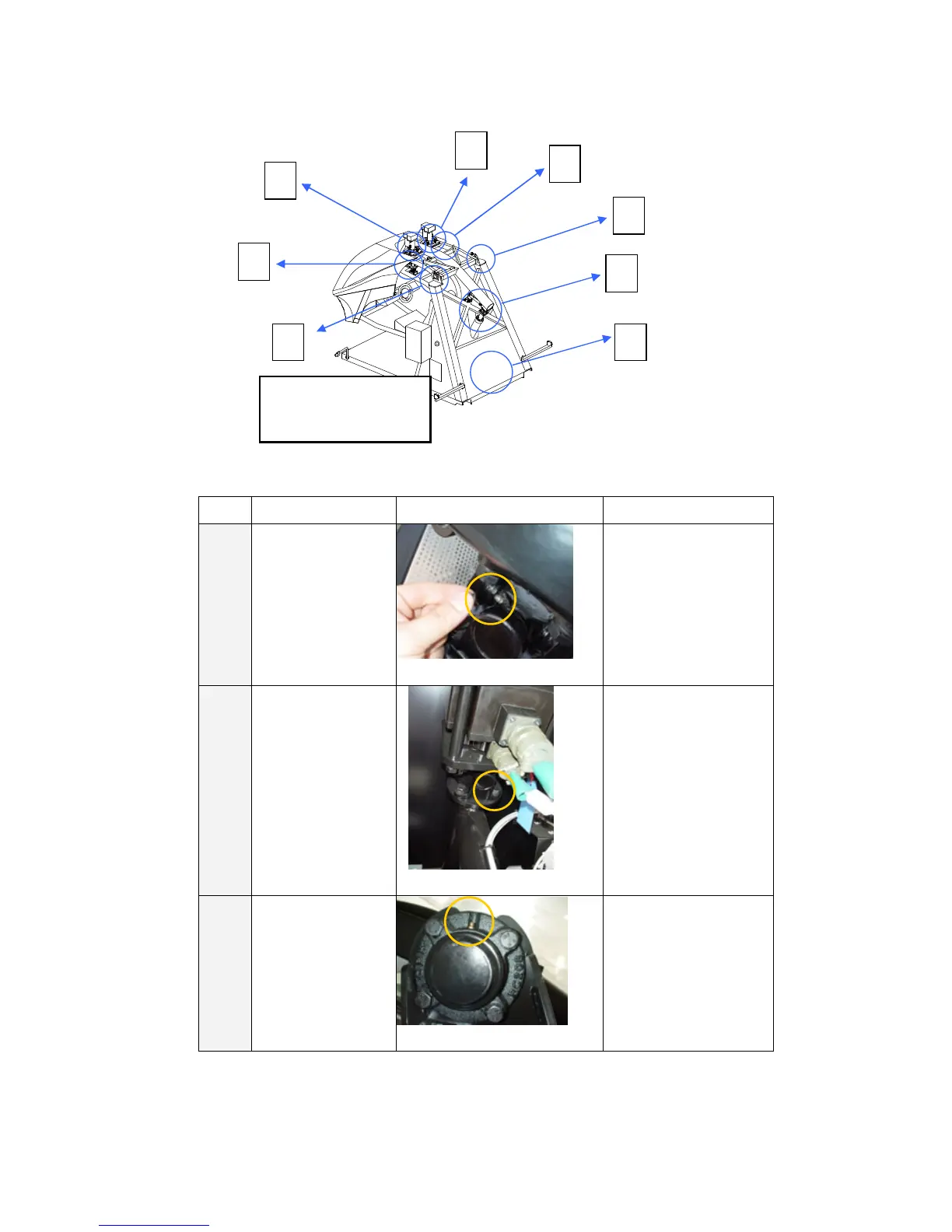

3) Inject grease in the amounts given in the table below for each of the components
:
No. Part Picture Amount of Grease
1 He a ve Actuator
Universal joint
(Upper)
5 grams
2 He a ve Actuator
Universal Joint
(Lower)
5 grams
3,4 Rocker Arm Joint 5 grams
8
1
5
3
4 2
7
6
JOINT GREASE
NIPPLE POSITIONS
