5.8 ASSEMBLING THE BOARDING STEP AND COIN CHUTE TOWER

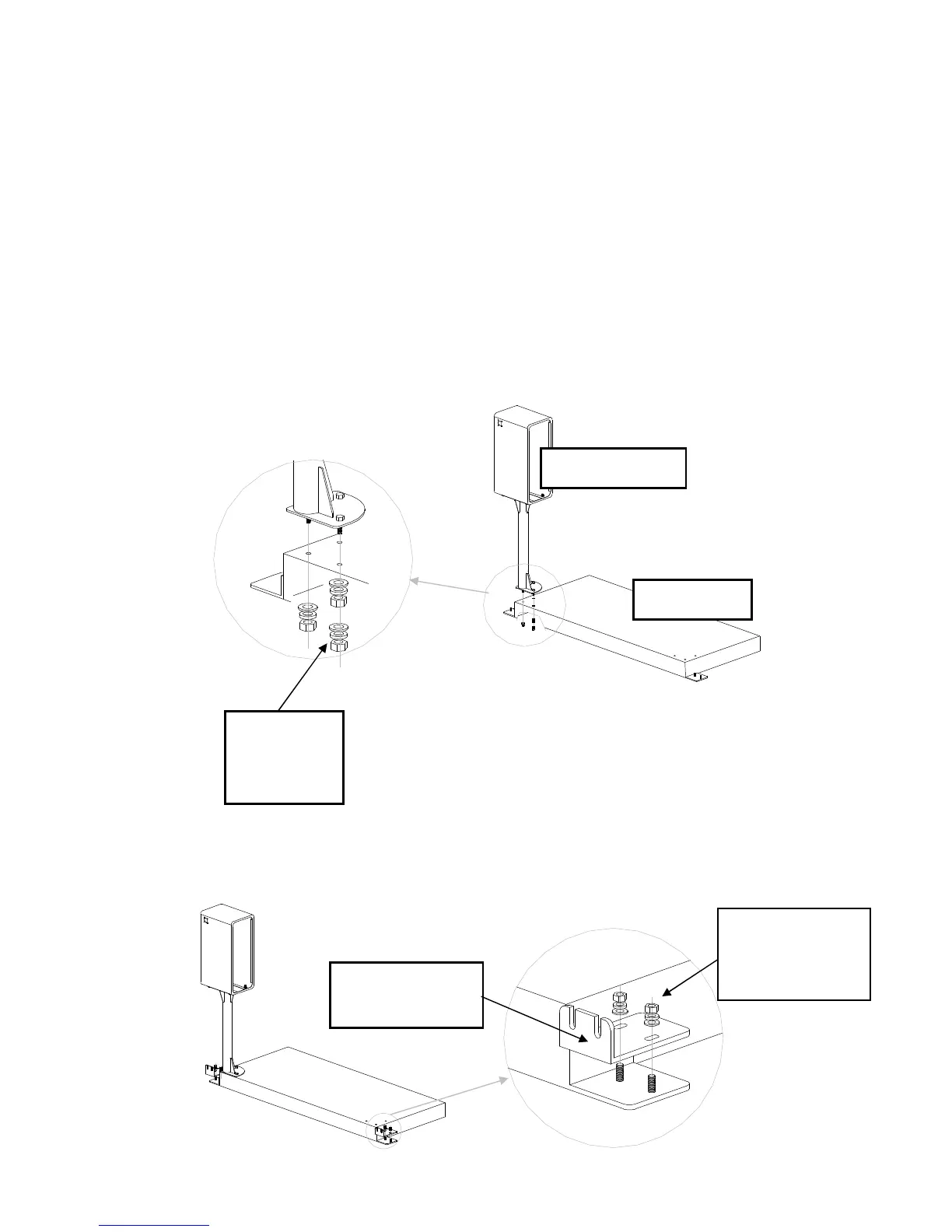

The boarding step and coin chute tower should be assembled at this stage so that
electrical connections to the coin mechanism can be made and functional testing of
Cycraft can be performed before final assembly of the fence. To assemble the
boarding step and coin chute tower, follow the next procedure.
1) Attach the coin chute tower on the boarding step.
2) Then attach two boarding step joint bracket to the boarding step.
Flat Washer
Spring
Washer
Boarding Step
Coin Chute Tower
Hex head Bolt M8
Spring Washer
Flat Washer
Boarding Step Joint
Bracket
To Next Page
