Caution '
Be sure to disconnect the machine flora the
eiectric outlet before removing needie(s)

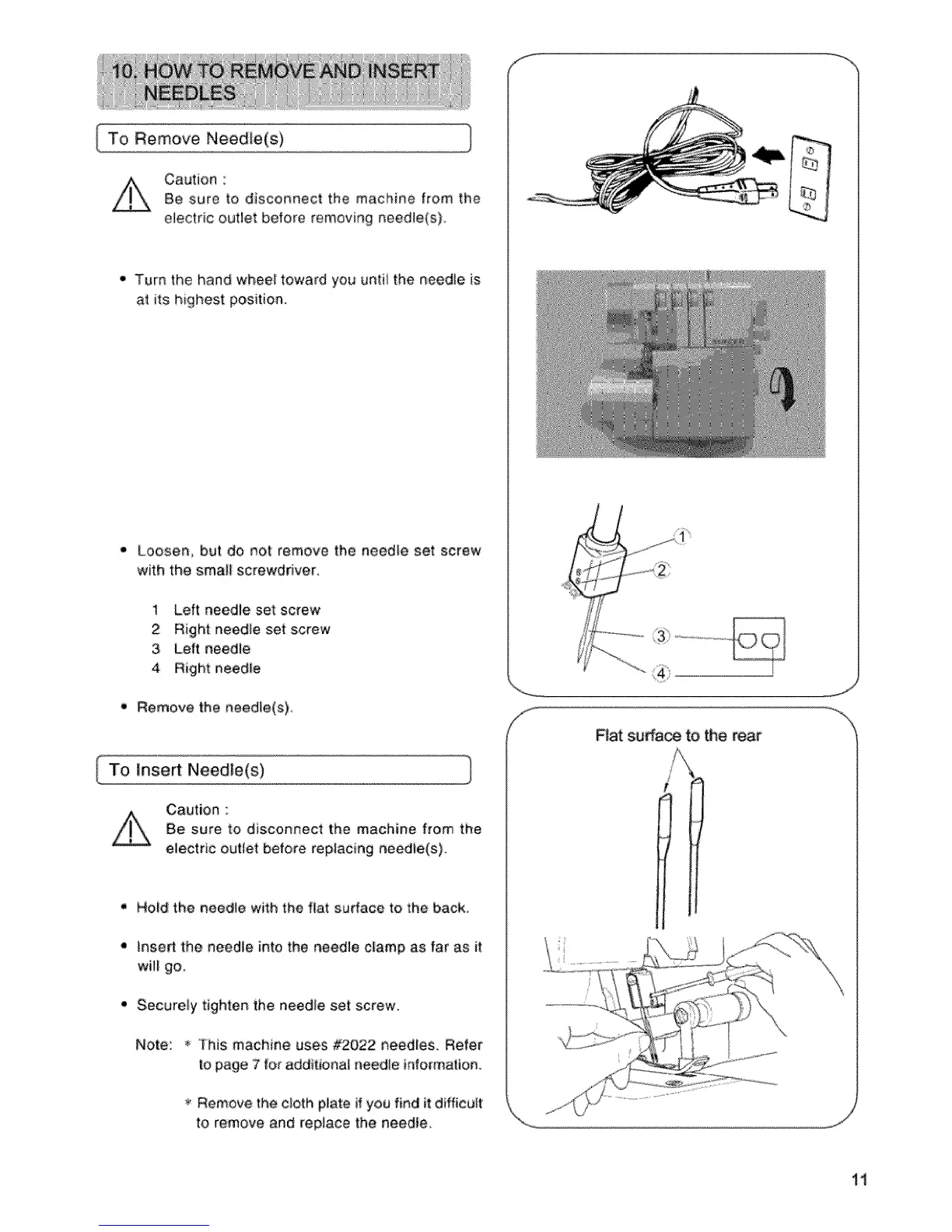

• Turn the hand wheel toward you unfi_ the needle is
at its highest position
Loosen, but do not remove the needte set screw
with the smaii screwdriver.
1 Left needle set screw
2 Right needle set screw
3 Left needle
4 Right needle
Remove the needle(s)
To Inse_ Needle(s)
Caution:
Be sure to discennect the machine from the
electric outlet before replacing needle(s}.
t
Hold the needie with the flat eudace to the back,
lnse_ the needle into the needle clamp as far as it
wiii go.
Securely tighten the needle set screw.
Note: _ This machine uses #2022 needles. Refer
Io page 7 for additional needle information,
_ Remove the cloth plate if you find it difficult
to remove and replace the needie,
Fiat surfa_ to the rear
j'
_J
lil
