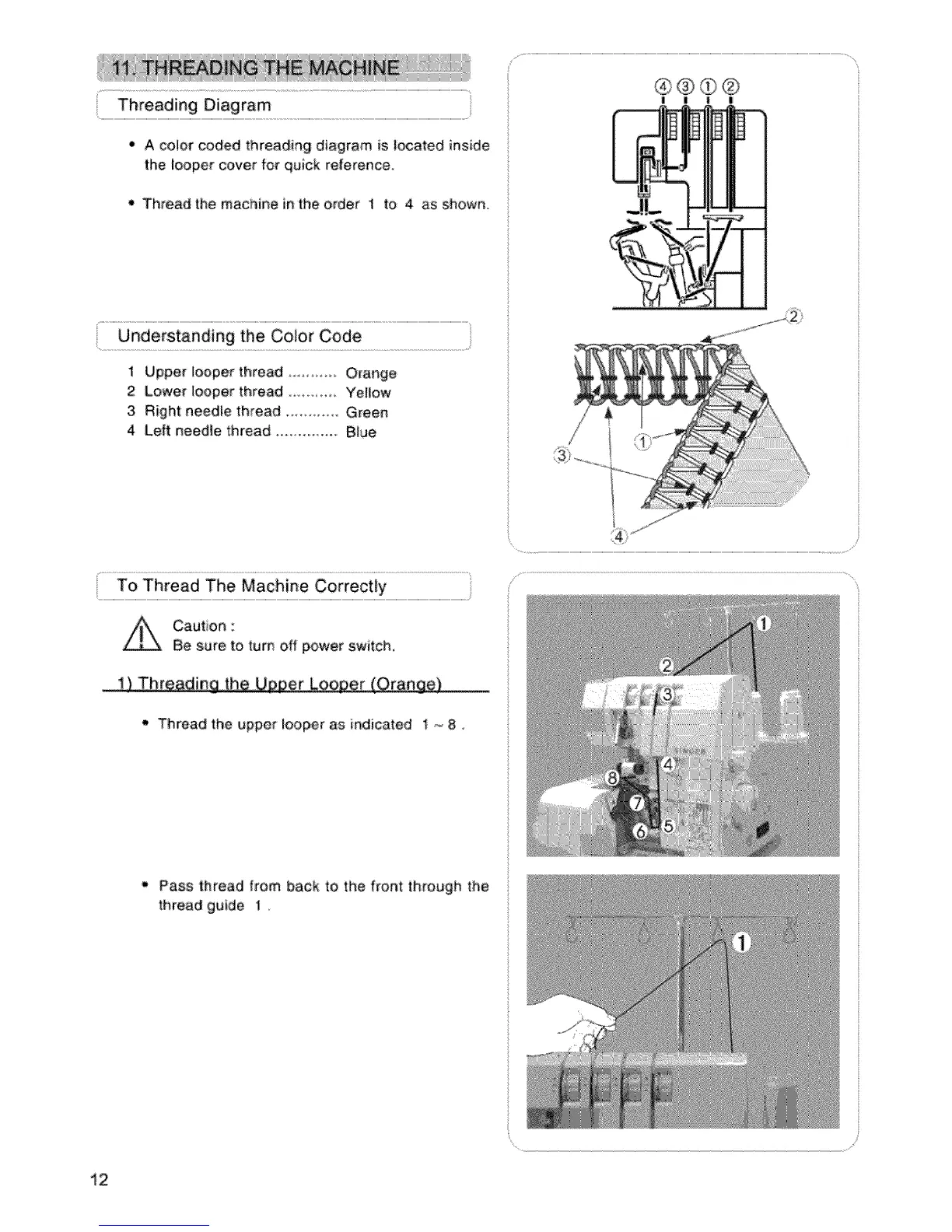

• A color coded threading diagram is located inside
the looper cover for quick reference
• Thread the machine in the order 1 to 4 as shown,
Unde rstand!ng the Co!o[ c£de ;!
I Upper looper thread ....... Orange
2 Lower iooper thread ......... Yellow
3 Right needle thread ........ Green
4 Left needle thread ..............Blue
To Thread The Machine Correctly
Caution :
Be sure to turnoff power switch,
_) Threading the Upper Looper (Orange)
- Thread the upper looper as indicated t ,,_8.
• Pass thread from back to the front through the
thread guide 1 .
! | |
12
