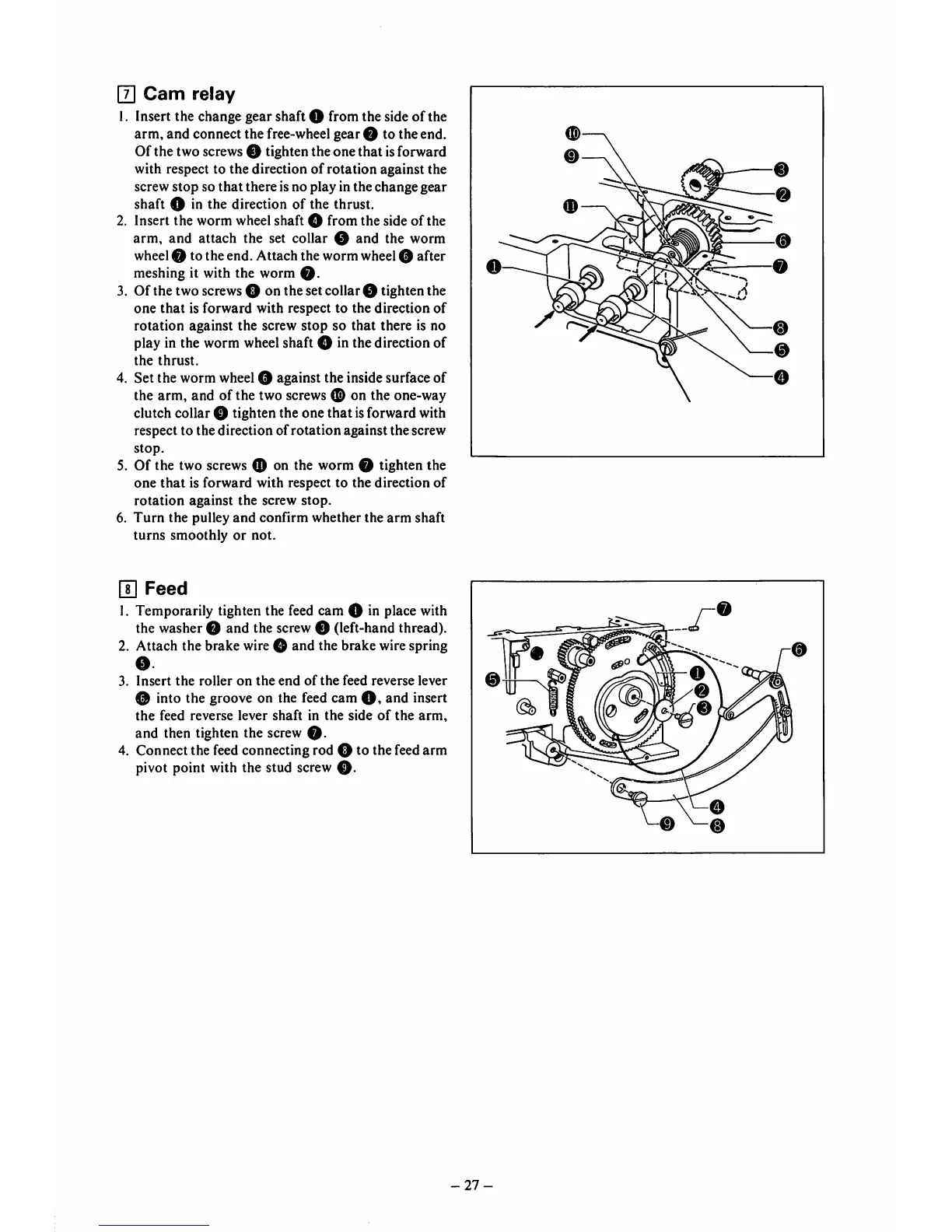

|T|
Cam
relay
1. Insert the change gear shaft O from the side of the
arm, and connect the free-wheel gear O to the end.
Of the two screws O tighten the one that isforward
with respect to the direction of rotation against the
screw
stop
so
that
there is no play in the change gear
shaft O in the direction of the thrust.
2. Insert the worm wheel shaft O from the side of the
arm, and attach the set collar 0 and the worm
wheel0 to the end. Attach the worm wheel0 after
meshing it with the worm
0.
3. Of the two screws0 on the setcollar 0 tighten the
one
that
is
forward
with
respect
to
the
direction
of
rotation against the screw
stop
so
that
there is no
play in the worm wheelshaft 0 in the direction of
the
thrust.
4. Set the worm wheel0 against the insidesurface of
the arm, and of the two screws 0 on the one-way
clutch collar 0 tighten the one that isforward with
respect to the direction of rotation against the screw
stop.
5. Of the two screws 0 on the worm 0 tighten the
one
that
is forward with respect to the direction
of
rotation
against
the
screw
stop.
6.
Turn
the pulley
and
confirm
whether the
arm
shaft
turns
smoothly
or
not.
H]
Feed
1. Temporarily tighten the feed cam 0 in place with
the washer 0 and the screw 0 (left-hand thread).
2. Attach the brake wire 0 and the brake wire spring
0
3.
Insert
the
roller
on
the
end
of
the
feed
reverse
lever
0 into the groove on the feed cam
0,
and insert
the
feed
reverse
lever
shaft
in
the
side
of
the
arm,
and then tighten the screw
0.
4. Connect the feed connecting rod 0 to the feed arm
pivot point with the stud screw
0.
-27-
