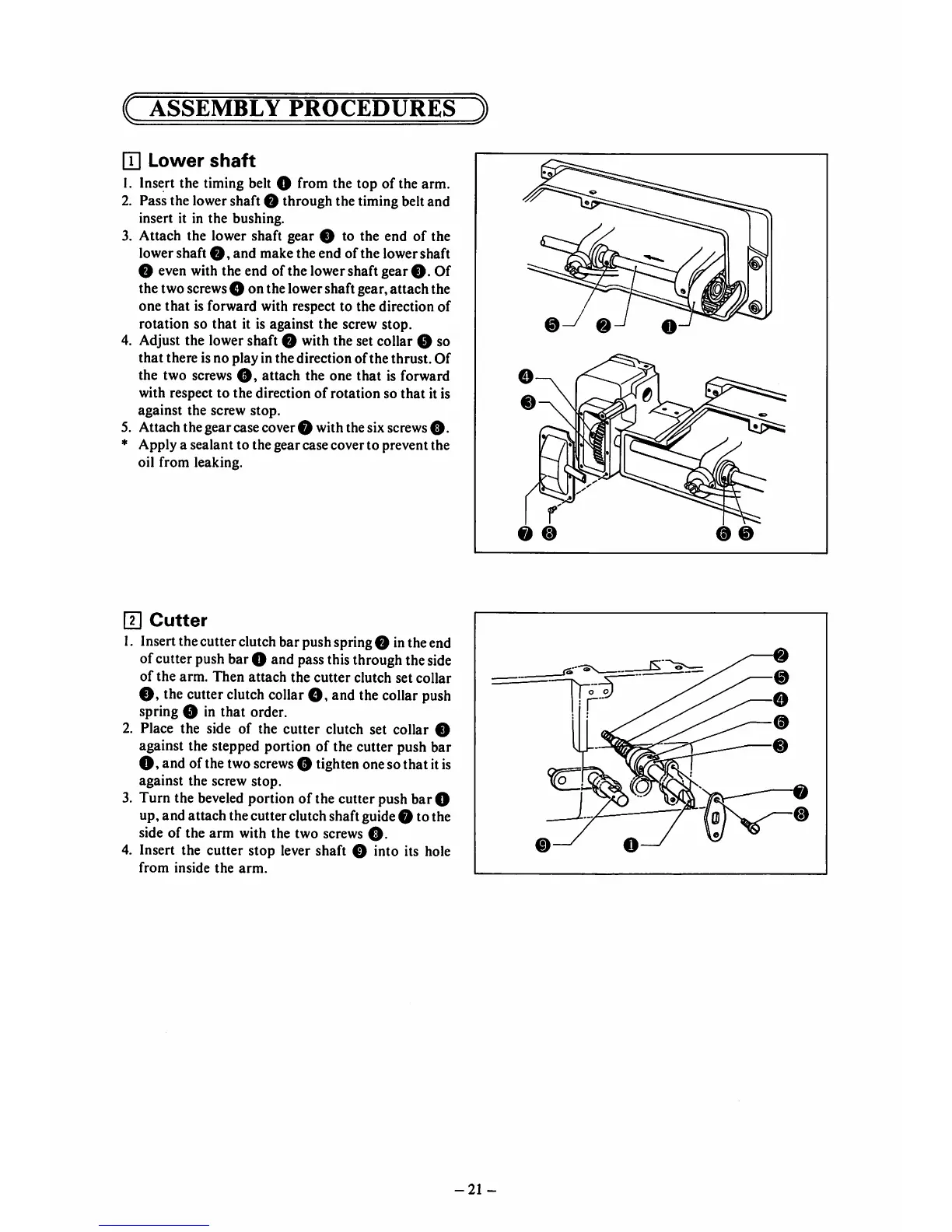

ASSEMBLY
PROCEDURES
))
U]
Lower
shaft
1. Insert the timing belt O from the top of the arm.
2. Pass the lowershaft O through the timing beltand
insert it in
the
bushing.
3. Attach the lower shaft gear O to the end of the
lower shaft
O,
and make the end of the lower shaft
O even with the end of the lowershaft gear
O.
Of
the two screwsO on the lowershaft gear,attach the
one
that
is forward with respect to the direction
of
rotation
so
that
it is against the screw stop.
4. Adjust the lower shaft O with the set collar 0 so
that
there is no play in the direction of the thrust. Of
the two screws
0,
attach the one that is forward
with respect to
the
direction
of
rotation
so
that
it is
against
the screw stop.
5. Attach the gear casecover 0 with thesix screws
0.
♦
Apply
a sealant to the
gear
case coverto prevent the
oil from leaking.
d]
Cutter
1. Insert the cutterclutch bar push spring 0 in the end
ofcutter pushbar 0 and passthisthrough theside
of
the
arm.
Then
attach
the
cutter
clutch
set
collar
0,
thecutter
clutch
collar
0,
and the collar
push
spring 0 in that order.
2. Place the side of the cutter clutch set collar 0
against the stepped portion of the cutter push bar
0,
and ofthe two
screws
0 tightenonesothat itis
against the screw stop.
3. Turn the beveled portion of the cutter push
bar
0
up, and attach the cutterclutch shaft guide 0 to the
side of the
arm
with the two screws
0.
4. Insert the cutter stop lever shaft 0 into its hole
from
inside
the
arm.
-21
-
