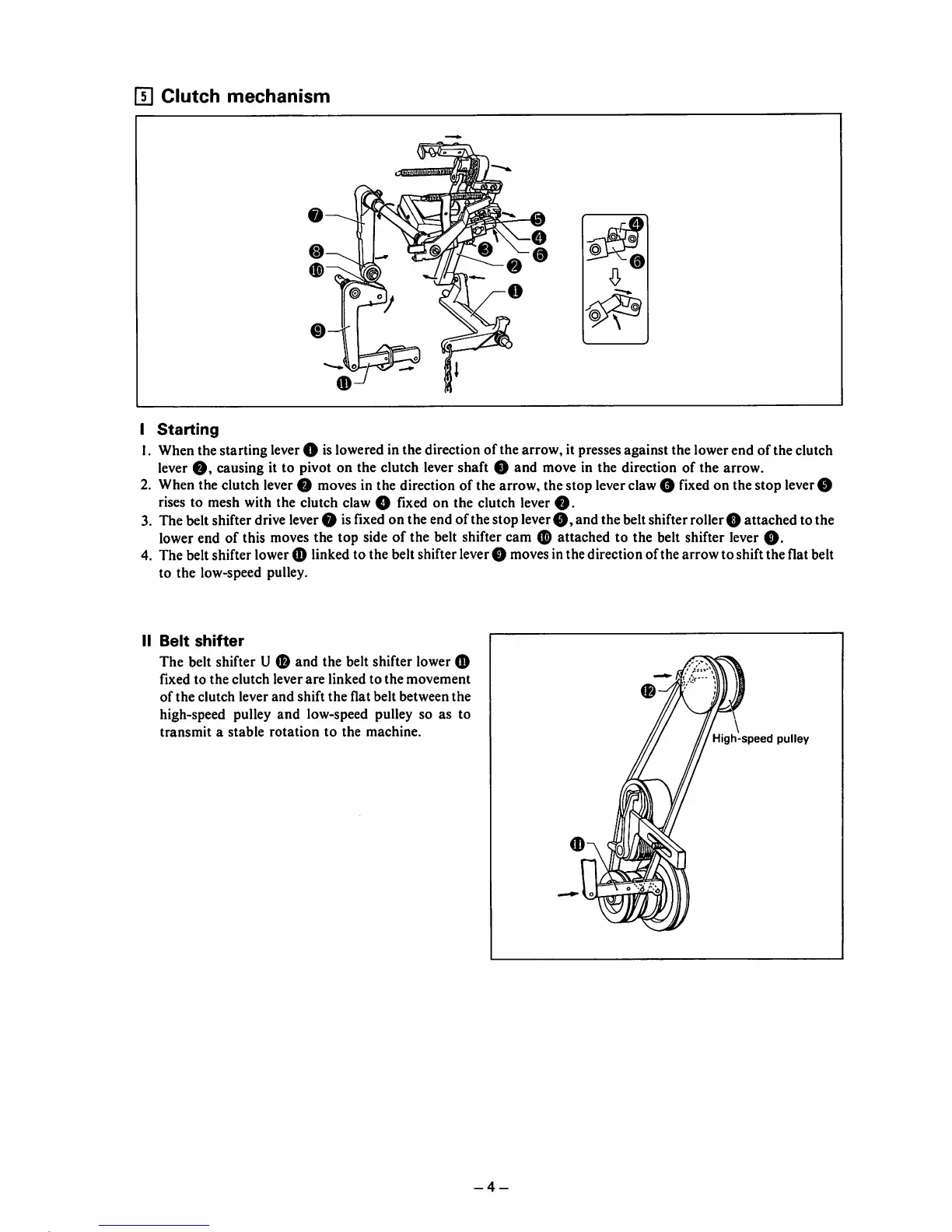

Clutch
mechanism
O
1
Starting
1. When the starting leverO islowered in the direction of the arrow, it pressesagainst the lowerend of the clutch
lever causing it to pivot on the clutch lever shaft O ^nd move in the direction of the arrow.
2. When the clutch levere moves in the direction of the arrow, the stop leverclawO fixed on the stop lever0
rises to mesh with the clutch claw O fixed on the clutch lever 0
3. The belt shifter drive lever0 isfixed on the end ofthe stop lever
0,
and the beltshifter roller 0 attached to the
lower end of this moves the top side of the belt shifter cam 0 attached to the belt shifter lever
0.
4. The belt shifter lower 0 linked to the belt shifterlever 0 moves in the direction of the arrowto shift the flat belt
to
the
low-speed pulley.
II
Belt
shifter
The belt shifter U 0 and the belt shifter lower 0
fixed
to
the
clutch
lever
are
linked
to
the
movement
of
the
clutch
lever
and
shift
the
flat
belt
between
the
high-speed pulley
and
low-speed pulley so as to
transmit
a
stable
rotation
to
the
machine.
0-^
1)1
///
//
High-speed
pulley
-4-
