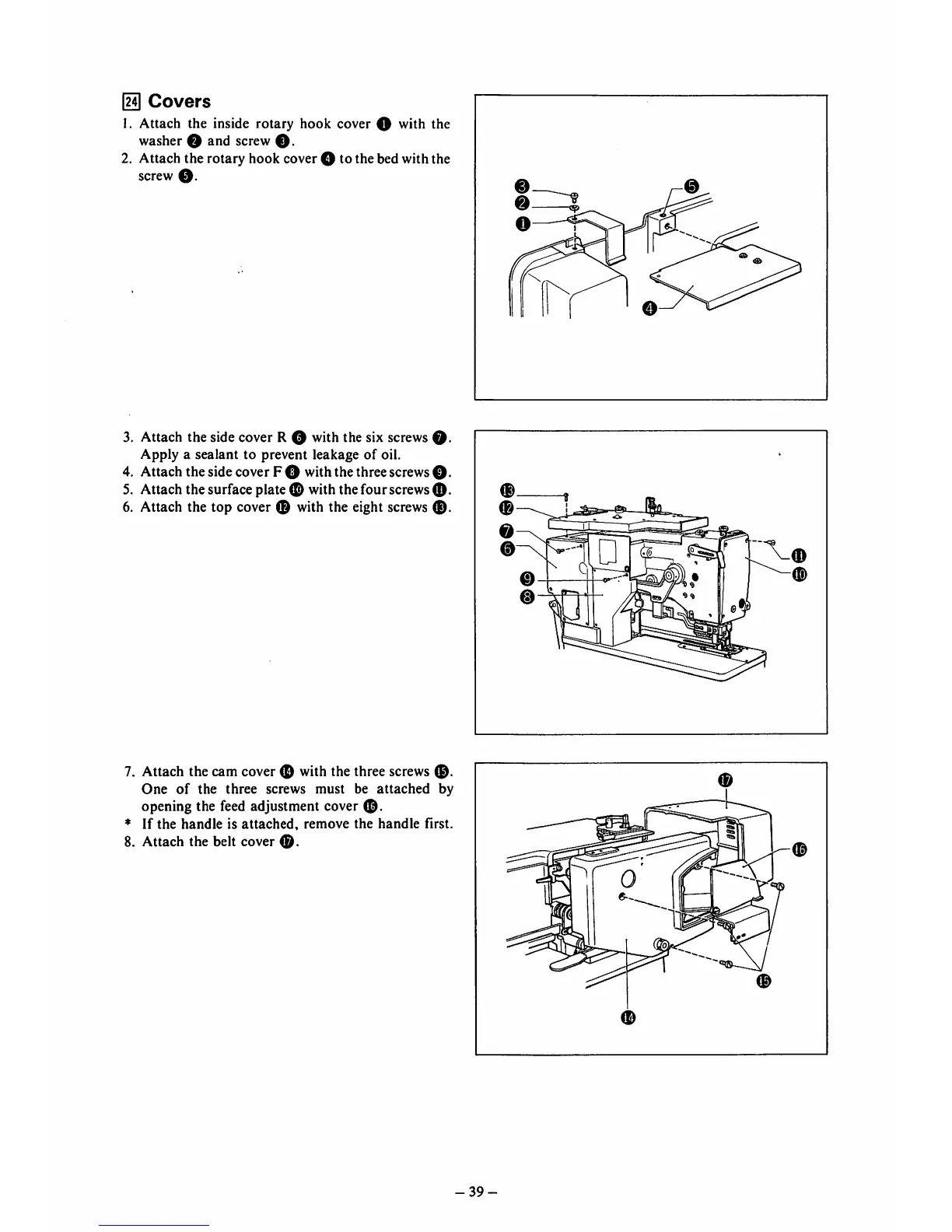

Covers
Attach the inside rotary hook cover O with the
washer O and screw
0.
Attach the rotary hook cover O to the bed with the
screw
0.
3. Attach the side cover R 0 with the six screws
0.
Apply
a
sealant
to
prevent
leakage
of
oil.
4. Attach the side cover F 0 with the three screws
0.
5. Attach the surface plate 0 with the four screws
0.
6. Attach the top cover 0 with the eight screws
0.
7. Attach the cam cover 0 with the three screws
0.
One
of
the
three
screws
must
be
attached
by
opening the feed adjustment cover
0.
*
If
the
handle
is
attached,
remove
the
handle
first.
8. Attach the belt cover
0.
0
-39-
