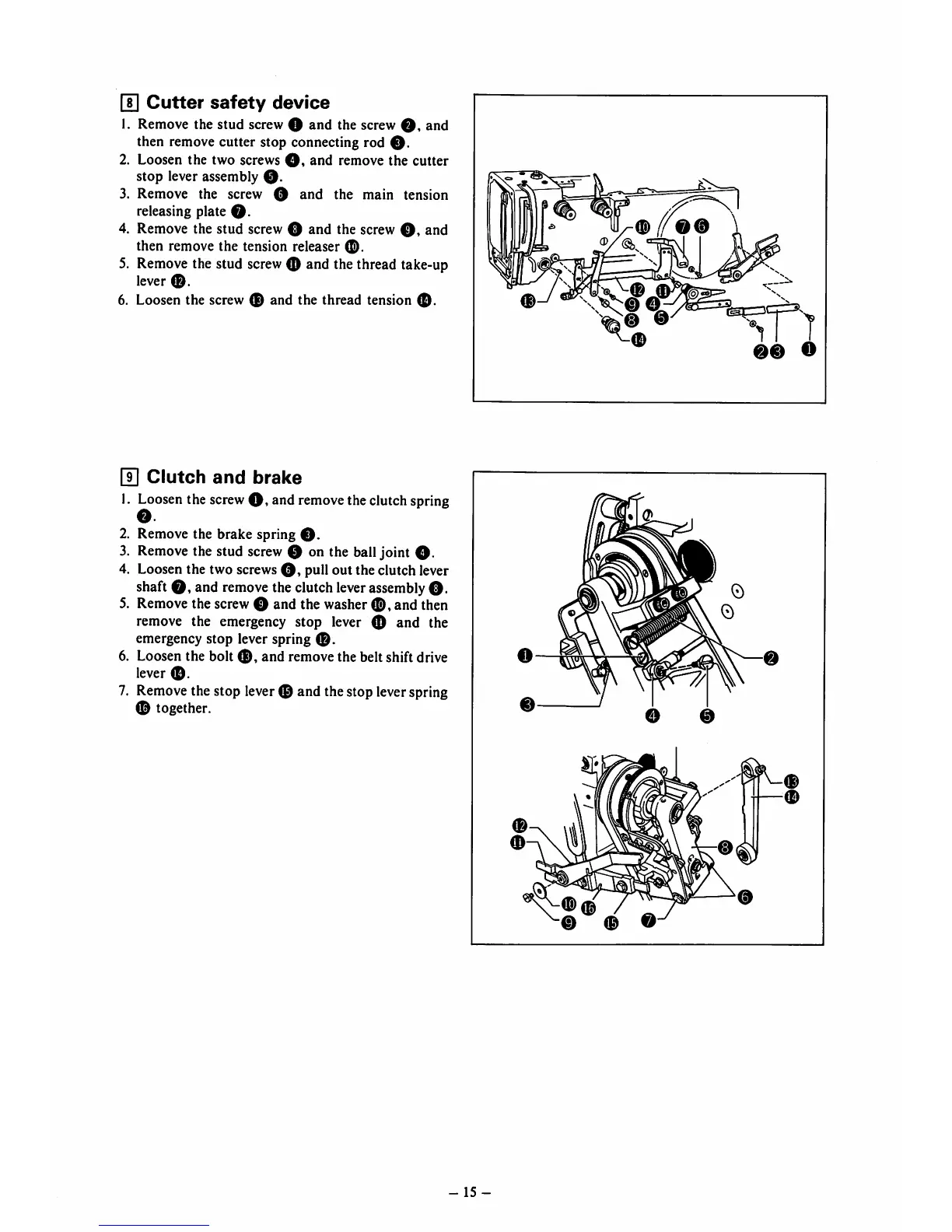

H] Cutter safety device
1. Remove the stud screw O and the screw O, and
then remove cutter stop connecting rod O-
2. Loosen the two screws 0, and remove the cutter
stop lever assembly 0.
3. Remove the screw O and the main tension
releasing plate O-
4. Remove the stud screw O and the screw O, and
then remove the tension releaser
5. Remove the stud screw O and the thread take-up
lever 0.
6. Loosen the screw 0 and the thread tension 0.
Ul Clutch and brake
1. Loosen the screw O, and remove theclutchspring
0
2. Remove the brake spring 0.
3. Remove the stud screw 0 on the ball joint 0.
4. Loosen the two screws 0, pull out the clutch lever
shaft 0, and remove the clutch lever assembly 0.
5. Remove the screw 0 and the washer 0, and then
remove the emergency stop lever 0 and the
emergency stop lever spring
0.
6. Loosen the bolt 0, and remove the belt shift drive
lever
0.
7. Remove the stop lever0 and the stop leverspring
0 together.
- 15 -
0
0
00 O
0 0
