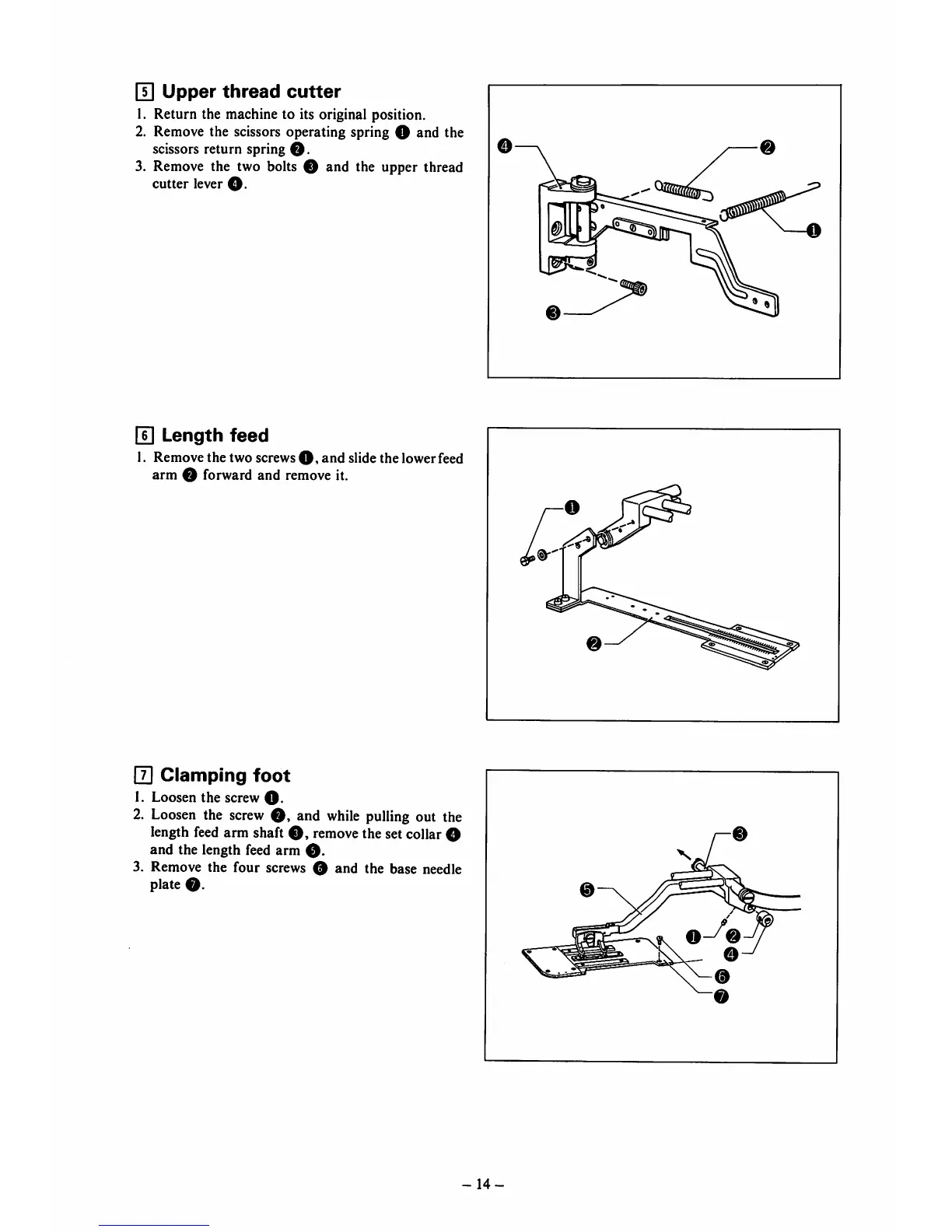

U] Upper thread cutter
1. Return the machine to its original position.
2. Remove the scissors operating spring O and the
scissors return spring
O.
3. Remove the two bolts O and the upper thread
cutter lever O-
[U Length feed
1. Remove the two screws and slide the lower feed
arm o forward and remove it.
Q] Clamping foot
1. Loosen the screw O*
2. Loosen the screw O, and while pulling out the
length feed arm shaft O, remove the setcollarO
and the length feed arm 0.
3. Remove the four screws 0 and the base needle
plate 0.
