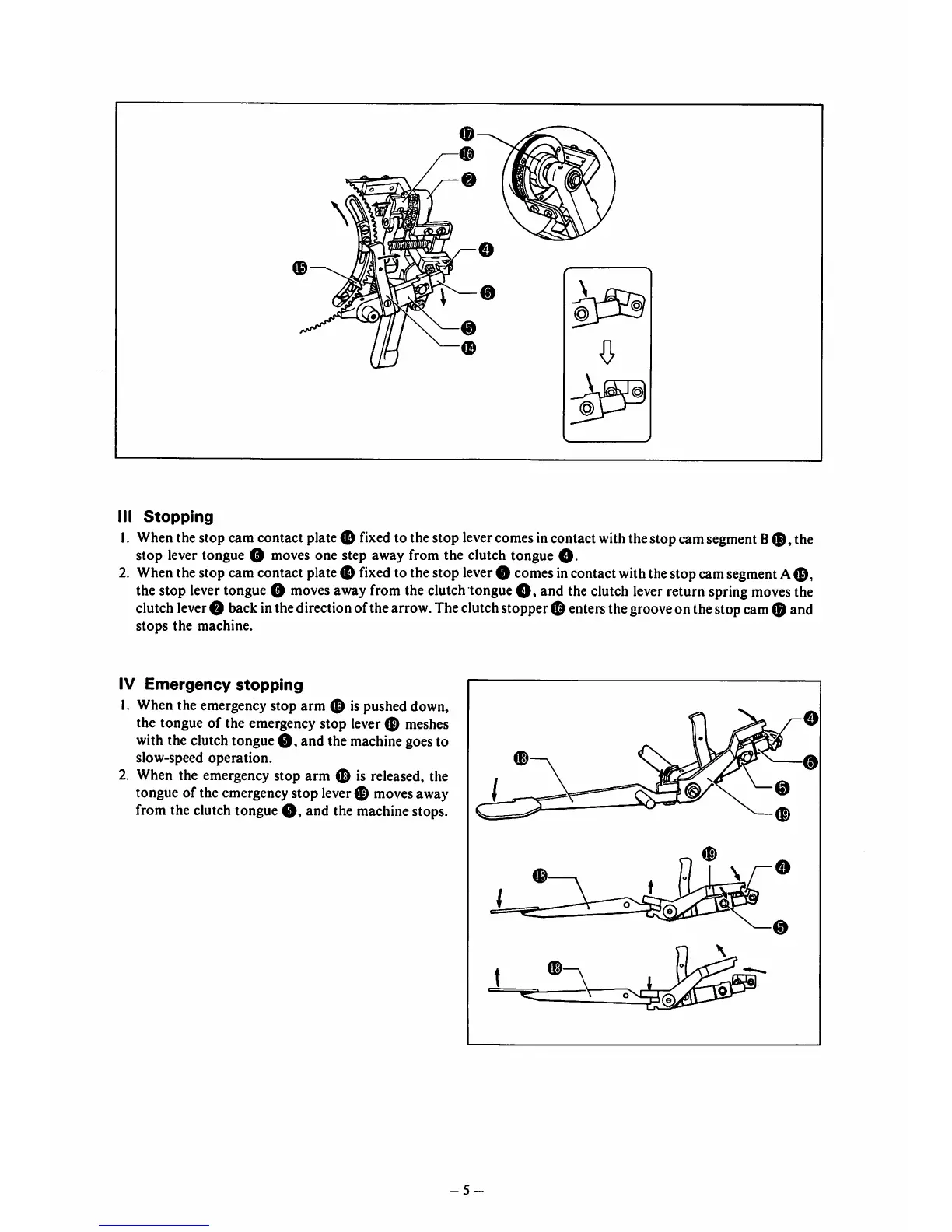

III Stopping
1. When thestopcamcontact plate0 fixed to thestop lever comes incontact with thestopcam segment B ®, the
stop lever tongue O moves one step away from the clutch tongue O-
2. When thestopcamcontactplate0 fixed to thestop lever 0 comes incontactwiththestopcam segment A 0,
thestop lever tongue 0 moves away from the clutch tongue 0, and the clutch lever returnspring moves the
clutch lever 0 backinthedirection ofthearrow.Theclutchstopper0 entersthe groove onthestopcam0 and
stops the machine.
IV Emergency stopping
1. When the emergency stop arm 0 is pushed down,
the tongue of the emergency stop lever 0 meshes
with the clutch tongue 0, and the machinegoesto
slow-speed operation.
2, When the emergency stop arm 0 is released, the
tongue of the emergencystop lever0 movesaway
from the clutch tongue
0, and the machinestops.
-5-
