© Jun. 2021 6-2 1323RE&1623RE Operation Manual
PRE-OPERATION FUNCTION TEST

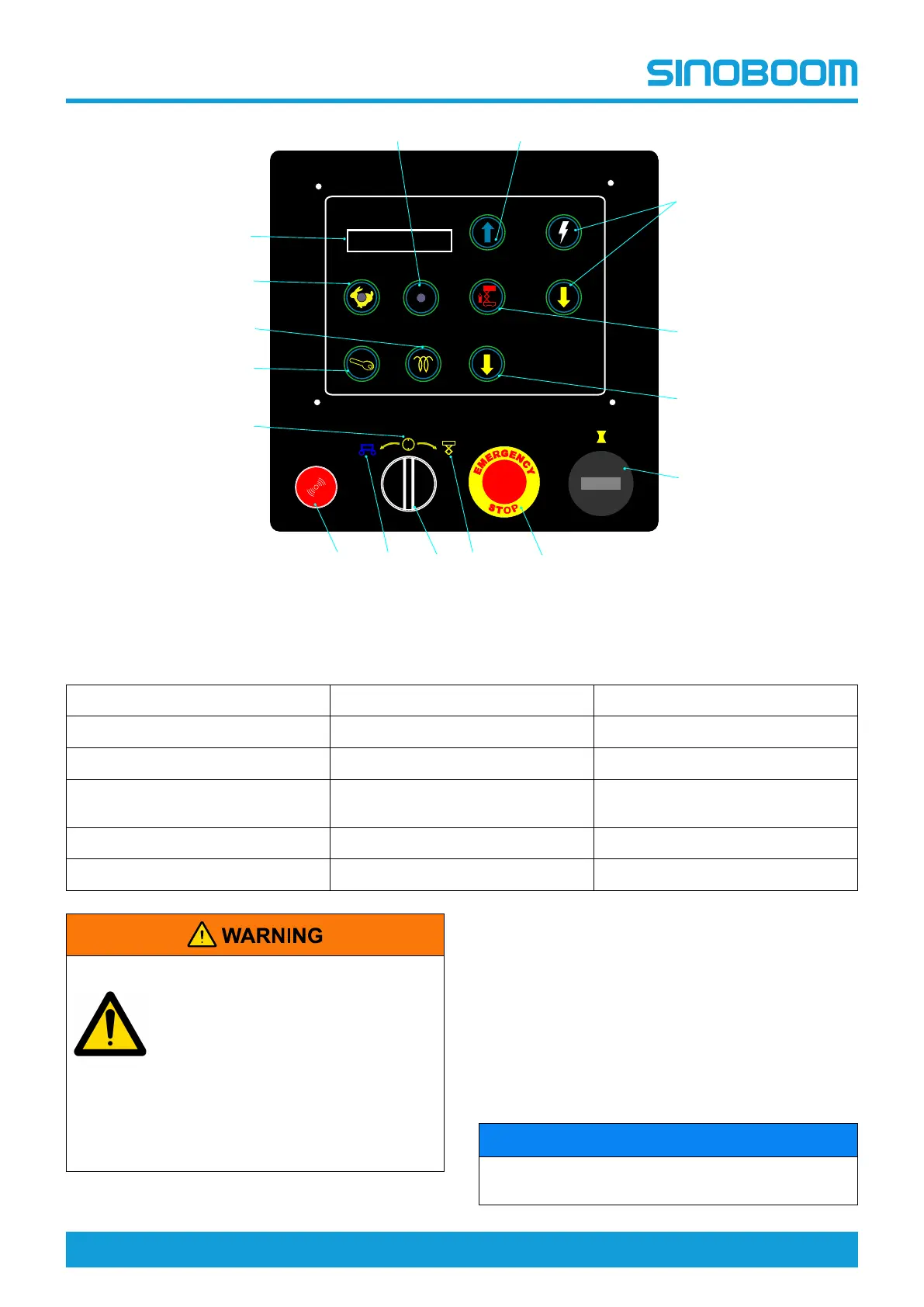

Figure 6-1 Ground controller (DTC system)
Table 6-1
1. Hour meter
7. Neutral position 13. Platform up/down enable switch
2. Emergency stop button 8. Engine start switch (not used)
14. Platform down switch
3. Platform control position 9. Glow plug switch (not used) 15. Overload indicator light
4. Key switch (Ground/Platform
select switch)
10. Engine speed select switch (with
indicator light, not used)
16. Emergency lowering switch
5. Ground control position
11. LCD screen
6. Buzzer
12. Platform up switch
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there is
any person on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
PREPARATION
1. Select a firm, level test surface free of obstructions.
2. Turn the Ground/Platform select switch on ground
controller to Ground control position.
3. Pull out the emergency stop button on ground
controller to ON position.
4. Ensure the LCD screen is lit and reads “SYSTEM
READY”.
NOTICE
In cold weather, the LCD screen needs warming up
before it properly displays anything.
CAUTION
1
2
4 356
7
11
10
15
13
16
12
14
9
8
!
