1323RE&1623RE Operation Manual 8-1 © Jun. 2021
8 TRANSPORTING AND LIFTING THE
MACHINE
TRANSPORTATION AND LIFTING
HAZARD
• Use a forklift or crane with the
proper lifting capacity to lift the
machine. Use good judgment and
a planned movement to control
the machine.
• The transport vehicle must be
parked on level ground.
• The transport vehicle must be
secured from rolling when loading
the machine.
• Ensure that the vehicle capacity,
loading surface, belts or ropes are
sufficient to support the weight of
the machine, refer to .
• Before transportation and lifting,
check if the rigging anchor point
and its attached structure are in
good condition.
• Be sure the machine is on a level
surface or secured before
releasing the brake.
• When removing the wire rope
safety pin, prevent the rails from
falling. The rails must be held
tight at all times when folding
down.
• Never transport persons on the
platform when the machine is
being transported, lifted or towed.
• When using a forklift or crane to
lift the machine, try to prevent the
machine from colliding with the
nearby objects.
• Lock the wheels of the machine
after the machine has been loaded
to prevent it from rolling.
NOTICE
Do not tow the machine unless an emergency, failure
or loss of power occurs.
RELEASING THE BRAKE
1. Choke the wheels to prevent the machine from
rolling. 4WD models: Release and turn over the
manual disengage cap and bolt it down.

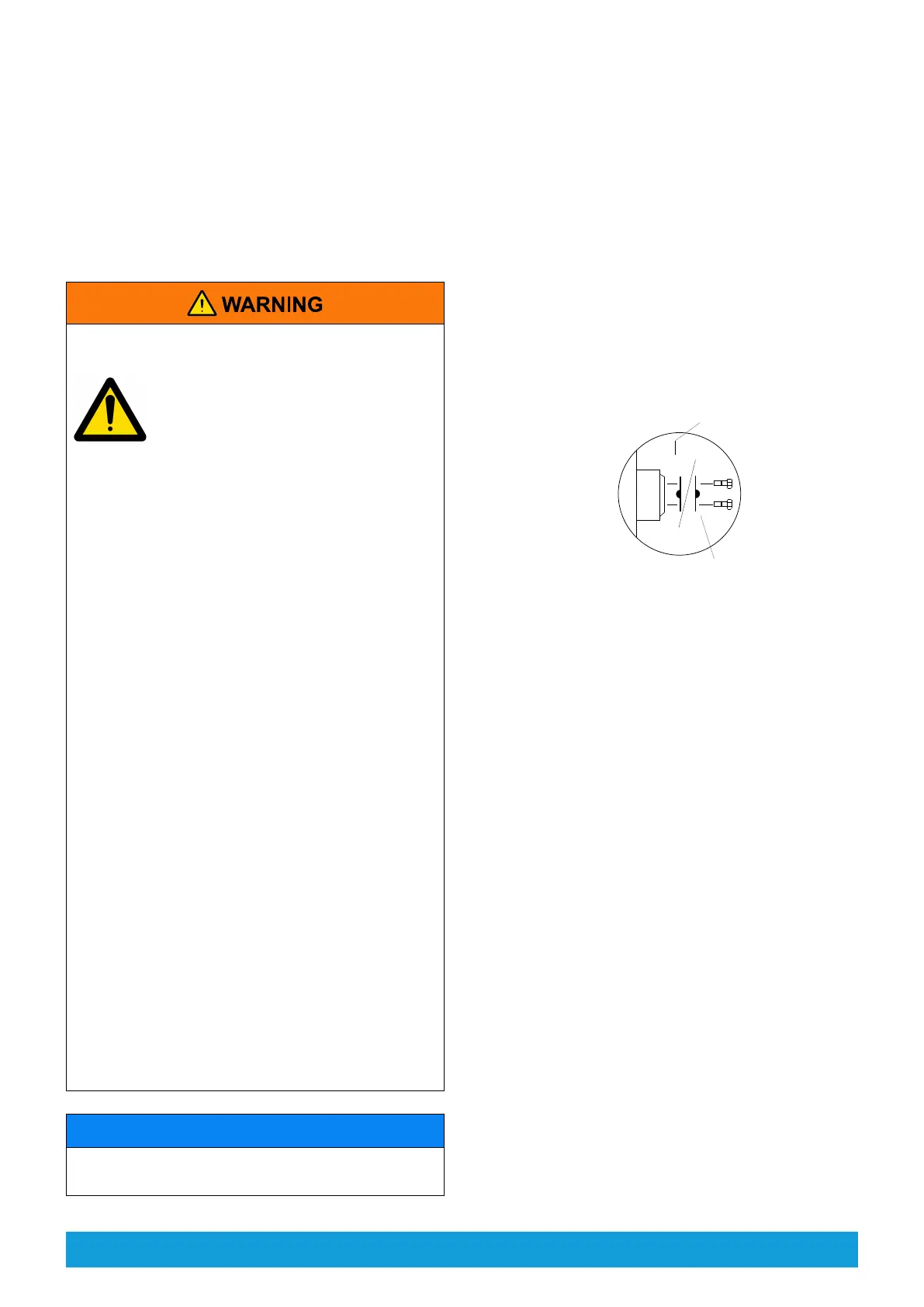

Figure 8-1
2. Be sure the winch line has been properly secured to
the drive chassis tie-down points, and the path is
clear of obstructions.
3. Reverse the procedures described to re-engage the
brake.
TRANSPORTING THE
MACHINE
Follow these requirements when transporting the
machine by truck or trailer:
1. Always choke the machine wheels in preparation
for transport.
2. Retract and lock the extension platforms.
3. Use the tie-down points on the chassis for
anchoring down to the transport surface.
4. Use at least two chains or straps.
5. Ensure the chains or straps are of ample loading
capacity.
6. Turn the key switch to the OFF position and remove
the key before transporting.
7. Inspect the entire machine for loose or unsecure
items. Use straps to secure the fold-down rails
before transporting.
