PRE-OPERATION FUNCTION TEST
1. Press the drive switch, the switch should be lit.
2. Hold the joystick enable switch and press the
steer thumb rocker switch on the left, the wheel
should steer left.
3. Hold the joystick enable switch and press the
steer thumb rocker switch on the right, the wheel
should steer right.

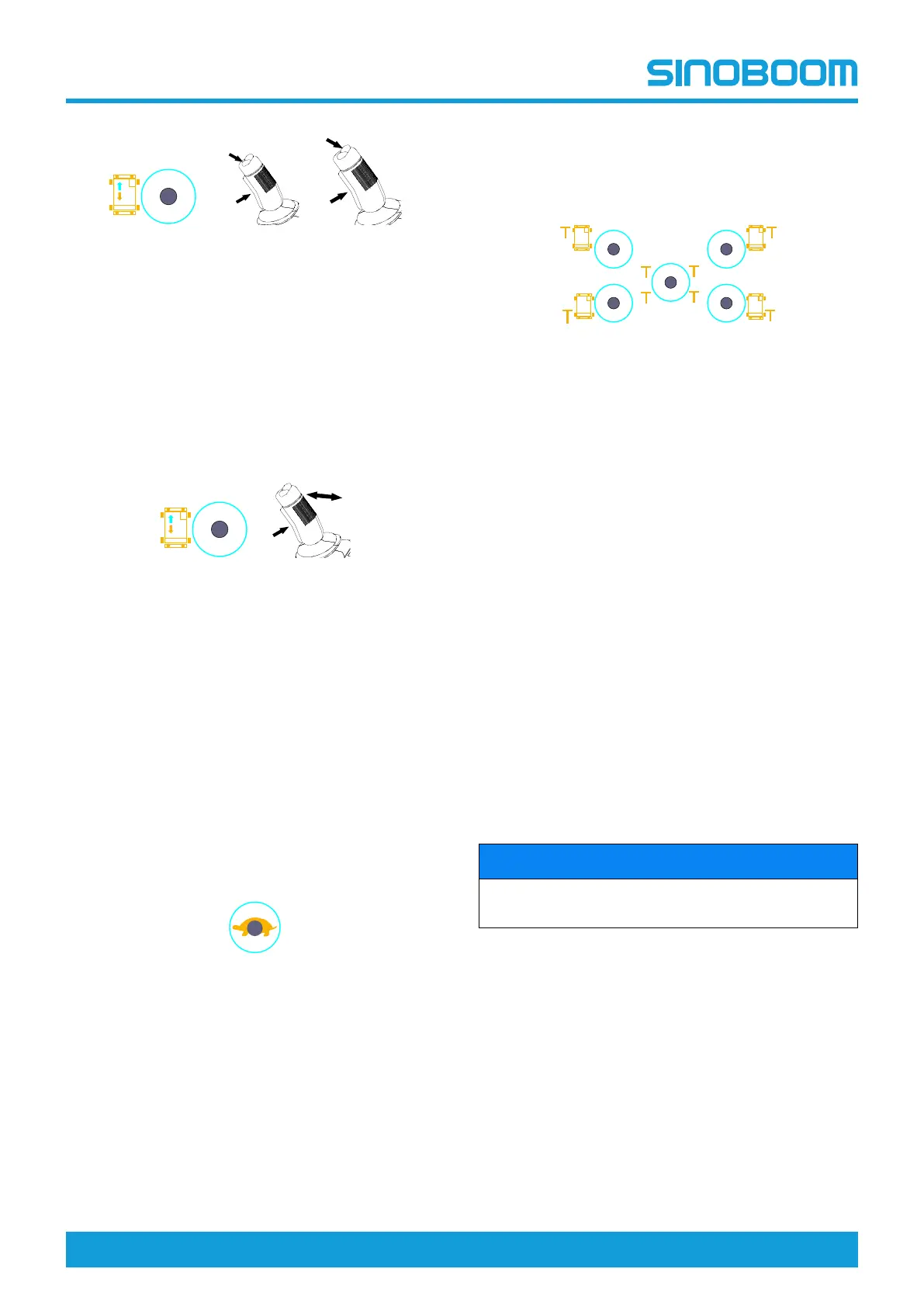

DRIVE FUNCTION
1. Press the drive switch, the switch should be lit.
2. Hold the joystick enable switch and slowly deflect
forward the joystick, the machine should drive
forward.
3. Release the joystick, the machine should come to
an immediate stop.
4. Hold the joystick enable switch and slowly deflect
backward the joystick, the machine should drive
reverse.
5. Release the joystick, the machine should come to
an immediate stop.
DRIVE SPEED SELECT SWITCH
Press the drive speed select switch, the switch
should be lit and the low drive speed should be
selected; press the switch again, the switch light
should go out and the high drive speed should be
selected.
Note: The machine is defaulted to low drive speed.
OUTRIGGER LEVELING
1. Press the outrigger self-level switch, hold the
joystick enable switch and slowly push backward
the joystick.
2. The outriggers should extend to the ground to
level the machine, and the switch should be lit
after the machine is level.
3. Press the individual outrigger level switch, hold
the enable switch on the control joystick and
slowly push forward the joystick.
4. The respective outrigger should retract.
5. Press the individual outrigger level switch, hold
the joystick enable switch and slowly deflect
backward the joystick.
6. The respective outrigger should extend and the
switch should be lit after the outrigger touches the
ground.
TESTING THE PLATFORM
CONTROLLER (SINOBOOM
CONTROL SYSTEM)
NOTICE
All tests on the platform controller should be
completed in one cycle.
