Sinoboom 1323RE - Ground;Platform Select Switch; Emergency Stop Button; Platform Up;Down Function; Emergency Lowering

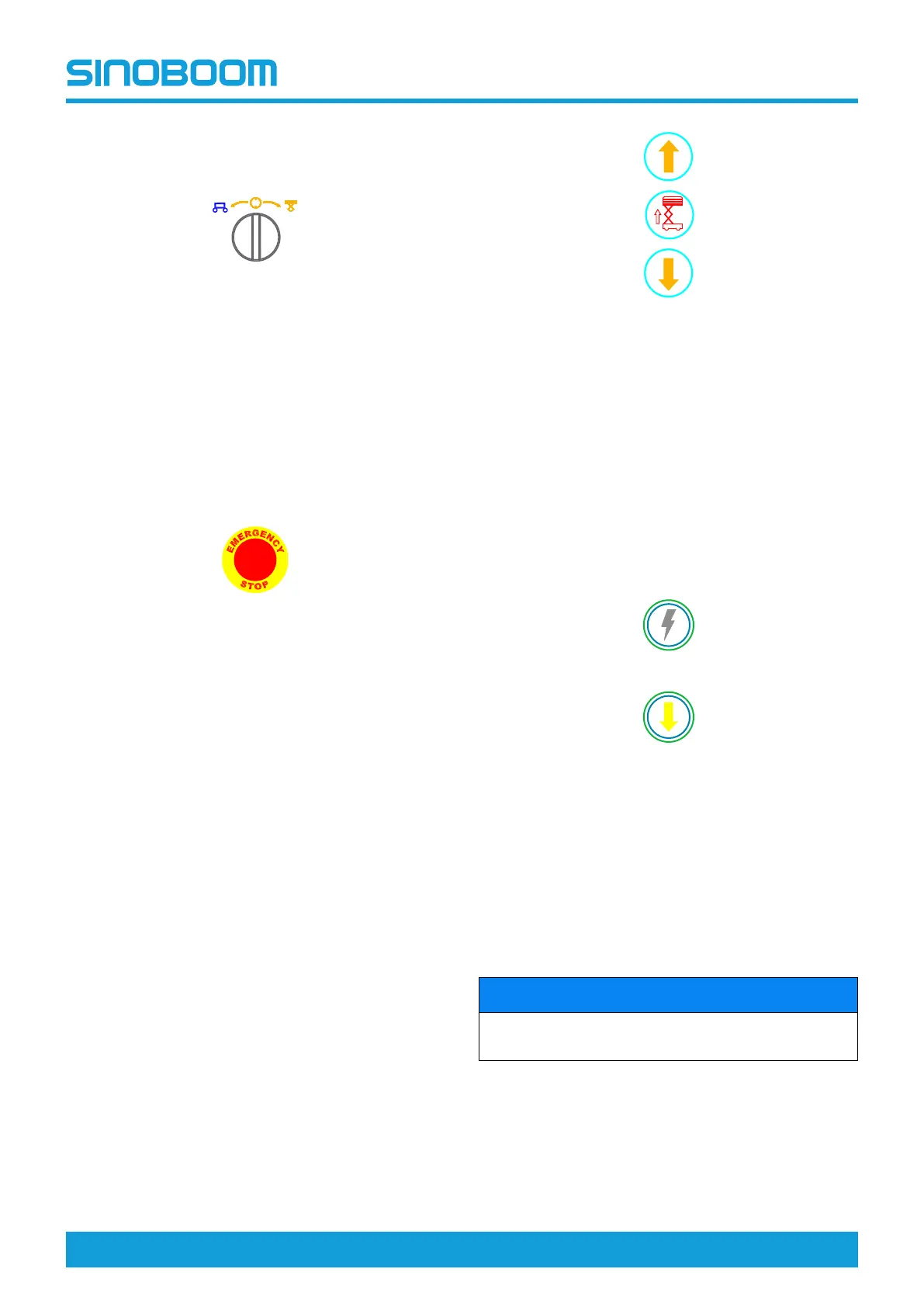

PRE-OPERATION FUNCTION TEST
1323RE&1623RE Operation Manual 6-3 © Jun. 2021
GROUND/PLATFORM SELECT
SWITCH
1. Turn the Ground/Platform select switch on ground
controller to Ground position, all functions should
only be operative on the ground controller, while
the platform controller should be inoperative.
2. Turn the Ground/Platform select switch on ground
controller to Platform position, all functions should
only be operative on the platform controller, while
the ground controller should be inoperative.
EMERGENCY STOP BUTTON
1. Push in the emergency stop button on ground
controller to OFF position, all functions should be
inoperative.
2. Pull out the emergency stop button on ground
controller to ON position, the machine should be
operative.
PLATFORM UP/DOWN FUNCTION
The alarm sounds 60 times/minute while the platform is
lowering, and 180 times/minute while the machine is tilt.
1. Press the platform up switch or down switch
without pressing the platform up/down enable
switch, the intended function will be inoperative.
2. Press the platform up/down enable switch, the
button should be lit.
3. Press the platform up switch, the platform should
rise.
4. Press the platform down switch, the platform
should be lowered with the alarm sounding.
EMERGENCY LOWERING
After pressing the emergency lowering combination
buttons, the platform can be lowered.
TESTING THE GROUND
CONTROLLER (SINOBOOM
CONTROL SYSTEM)
NOTICE
All tests on the ground controller shall be completed
within one cycle.
