PRE-OPERATION FUNCTION TEST
1323RE&1623RE Operation Manual 6-9 © Jun. 2021

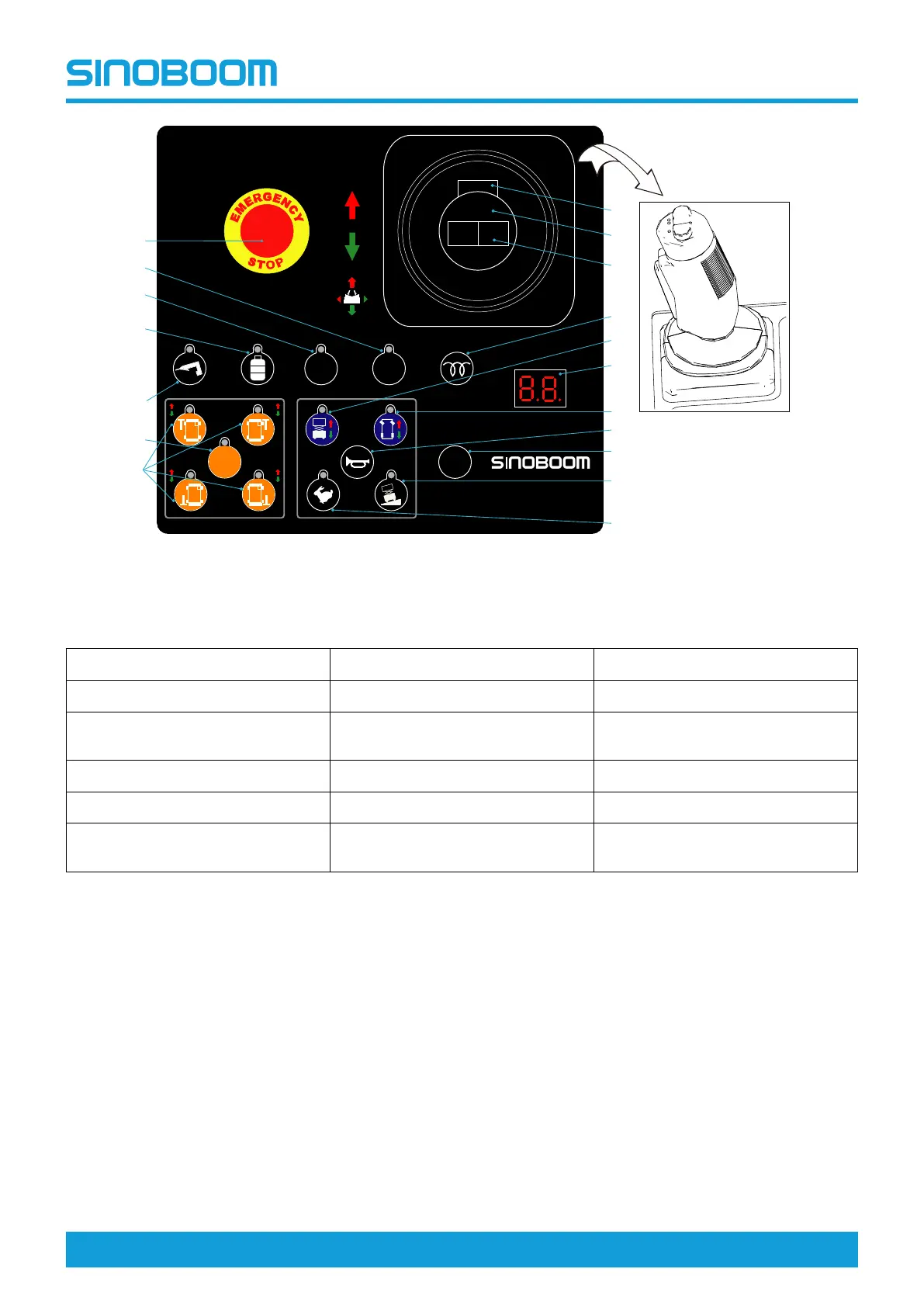

Figure 6-4 Platform controller (Sinoboom control system)
Table 6-4
1. Individual outrigger level switch 7. Emergency stop button
13. LED screen
2. Outrigger self-level switch
8. Enable switch 14. Drive & steer enable switch
3. Hydraulic generator switch (not
used)
9. Drive/lift proportional control
joystick
15. Horn button
4. Natural gas switch (not used)
10. Steer thumb rocker switch
16. Ignition switch (not used)
5. Not used
11. Glow plug switch (not used) 17. Climbing mode enable switch
6. Not used
12. Platform up/down enable switch
18. Engine speed select switch (not
used)
T T
F1 F2
AUTO AUTO AUTO
POWER
1
2
3
4
7
8
9
10
11
13
12
14
15
16
17
18
5
6
