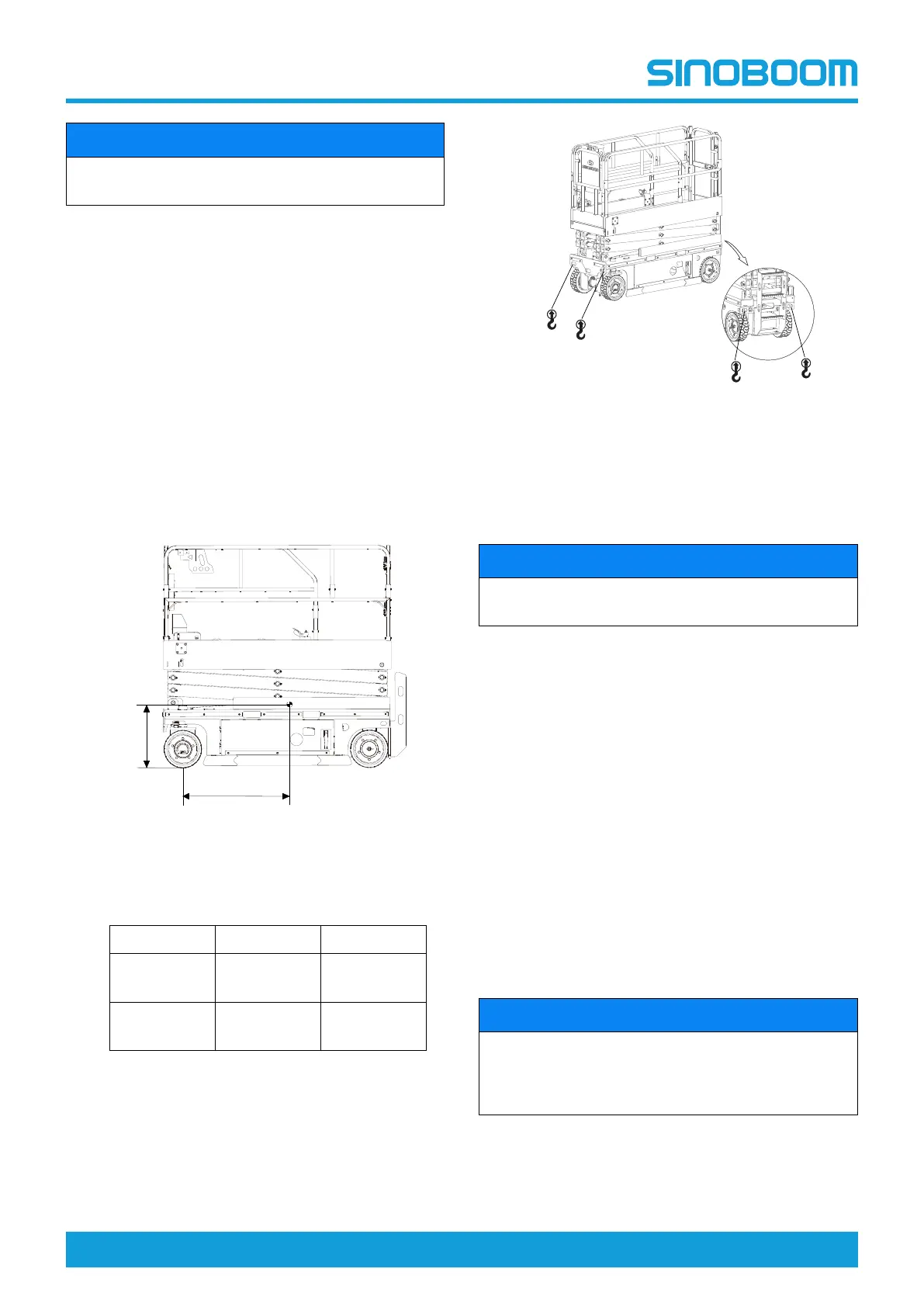

© Mar 2021 8-2 GTJZ0608E&0808E Operation Manual
TRANSPORTING AND LIFTING THE MACHINE
NOTICE
Failure to use the forklift slot while lifting machine will
result in component damage.
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. Fully lower the platform. Keep the platform down
during transportation.
2. Make sure the platform extension, controller and
chassis components are stable.
3. Remove all loose parts from the machine.
4. Determine the center of gravity of the machine, see
Table 8-1 , page 8-2.
Figure 8-2
Table 8-1
Models X Y
GTJZ0608E
955 mm
(37.6 in.)
625 mm
(24.6 in.)
GTJZ0808E
956 mm
(37.6 in.)
672 mm
(26.5 in.)
5. Lift the machine according to the following figure.
Figure 8-3
6. Only connect the rigging to the raised point speci-
fied on the machine. Adjust the rigging to avoid
damaging the machine and to keep the machine
horizontal.
NOTICE
To protect the platform guardrail, choose the appro-
priate length of spreader.
TRANSPORTING THE
MACHINE
Obey the following requirements when transporting
the machine using trucks or trailers:
1. Before transporting, turn the key switch of the
ground controller to the OFF position and then re-
move the key.
2. Inspect the machine thoroughly for loose parts.
3. Ensure the rope or belt has sufficient load strength.
4. Use at least two ropes or straps.
5. Adjust the rigging to prevent damage to the rope or
belt.
NOTICE
During transportation, retract the extension platform
so that the extension platform is secure at the slots.
Ensure that the extension platform cannot extend or
shake out of the main platform during transportation.
To Next Page
