OPERATING THE MACHINE
GTJZ0608E&0808E Operation Manual 7-7 © Mar 2021

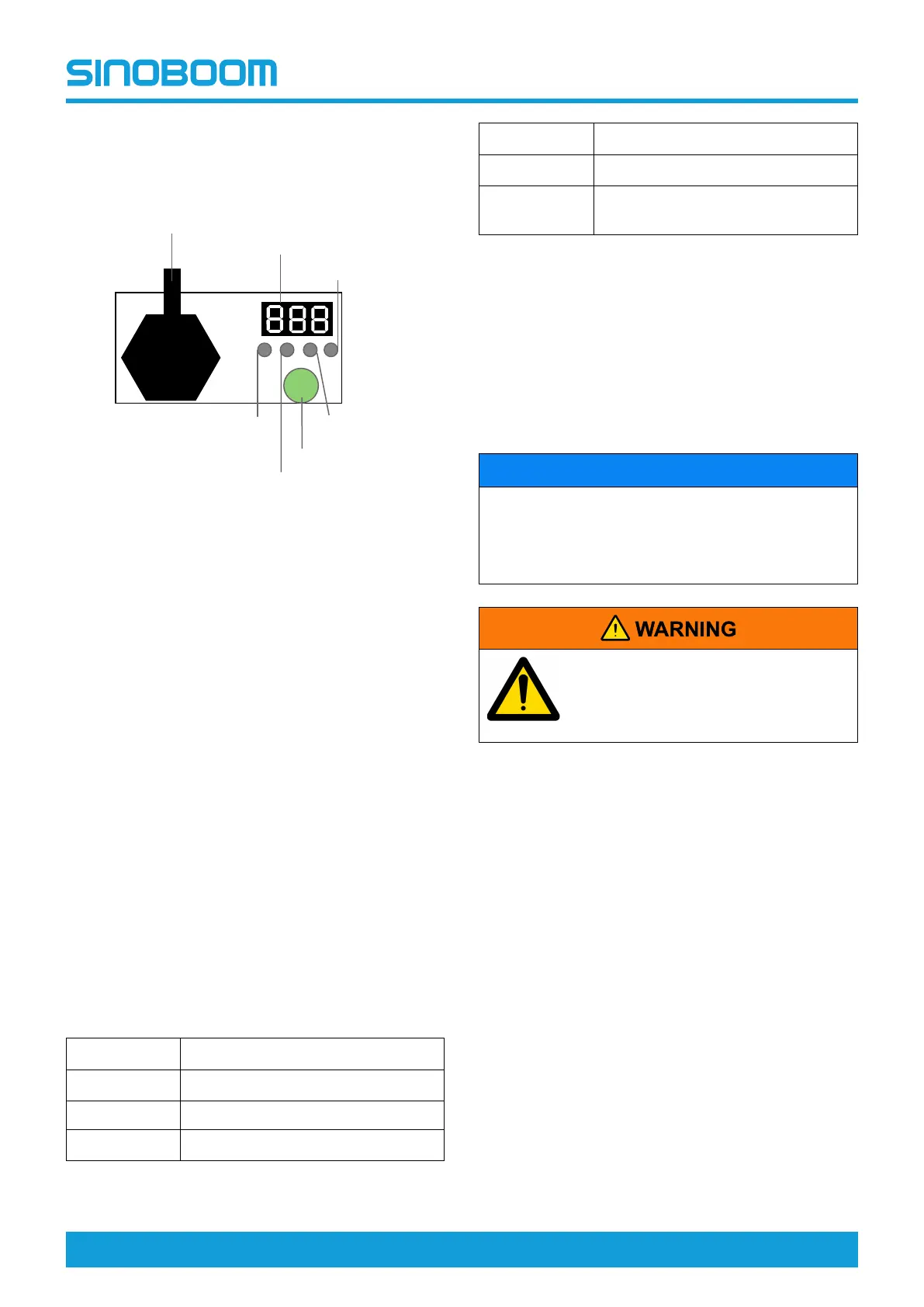

CHANGING CHARGER
BATTERY CURVE
Figure 7-5
To switch the curve:
1. Press and hold the Select key for 5s and release,
the display will indicate the current curve code.
2. Press gently for 1s and release to switch the
charging curve codes.
3. After selection of charging curve code, press and
hold Select key for 5s, the charging curve code will
flash quickly, release the key, and the battery curve
has been configured.
4. Repeat the steps above if re-change is needed.
To enter EQ mode manually:
1. Press and hold Select key for 10s, when the display
shows EQ in quick flashing, release the key and the
charger has been set in EQ mode.
2. To exit the EQ mode, likewise, press and hold the
Select key for 10s, when the display shows OFF in
quick flashing, release the key and the charger will
exit the EQ mode.
Charger in-built curve codes and respective battery
models
Table 7-3
Curve codes Battery models
B02
Trojan T105
B04 Discover AGM
B05
US Battery Flooded
Curve codes Battery models
B07
Trojan T125
B11
Trojan T1275
(two in series and two in tandem)
Note: the default curve code is B02.
INDOOR/OUTDOOR MODE
SETTING
Note：This mode setting is intended for GTJZ0808E
only.
NOTICE
The machine provides indoor/outdoor mode for user
selection. The max platform height is 6m（20ft）in
outdoor mode and 8.1m(27ft) in indoor mode. The
indoor-only machine is not allowed to set for outdoor
use.
The indoor mode must not be used
for outdoor applications.
Do not tamper with other set
parameters of the program.
Indoor/outdoor mode can be selected from the ground
controls.
• When operating in the outdoor mode, the max
platform height is limited to 6m. The platform will be
prevented from further lifting when raised at
platform height of 6m, meanwhile the alarm will
sound and “CL” shown on the platform display.
Return the control handle to neutral position and
release, and then hold the enable switch on the
control handle and push forward the control handle,
the platform will not raise.
• When operating in the indoor mode, the max
platform height is 8.1m. The platform will be
prevented from further lifting when raised at
platform height of 6m, meanwhile the alarm will
sound and “id” shown on the platform display.
Return the control handle to neutral position and
release, and then hold the enable switch on the
control handle and push forward the control handle,
the platform will continue raising up to 8.1m.
Observe the following procedure for indoor/
outdoor mode setting：
1. Turn the key switch to ground control position.
%
V
A
B
EQ/
Select
Battery
voltage indicator
Charging
current indicator
Charging capacity
Display
Charging voltage indicator
EQ/Select Button
Battery program
update interface
