PRE-OPERATION FUNCTION TEST
GTTZ10EJ Operation Manual 6-5 © Nov. 2020

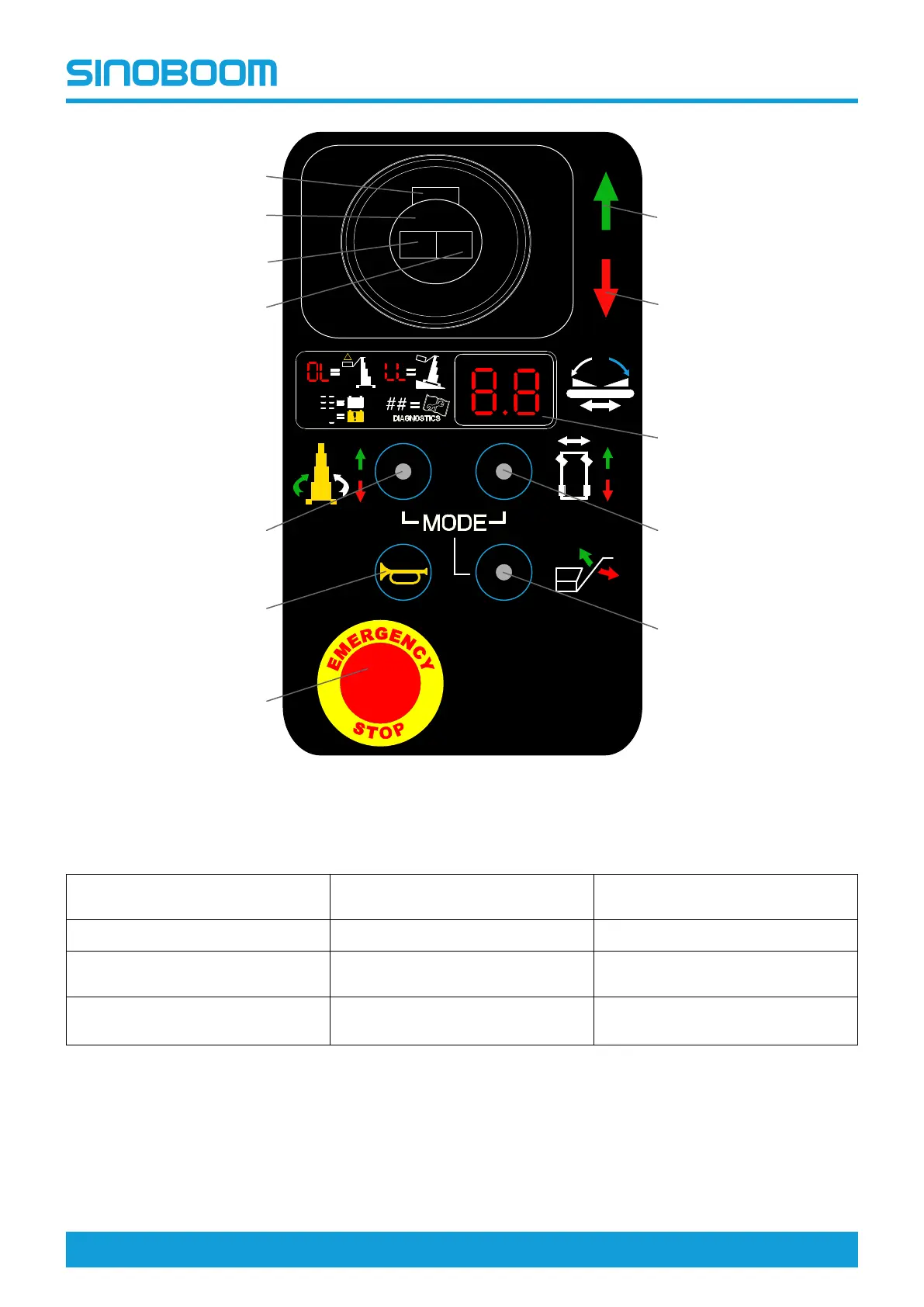

Figure 6-2 Platform controls
Table 6-2
1. Enable button
5. Mast lift/turntable rotate function
button
9. Drive reverse/lower direction
arrow
2. Joystick 6. Horn button 10. Display
3. Rocker switch for turntable rotate
left/wheel steer left functions
7. Emergency stop button 11. Drive function button
4. Rocker switch for turntable rotate
right/wheel steer right functions
8. Drive forward/lift direction arrow 12. Jib boom lift function button
