© Nov. 2020 6-6 GTTZ10EJ Operation Manual
PRE-OPERATION FUNCTION TEST

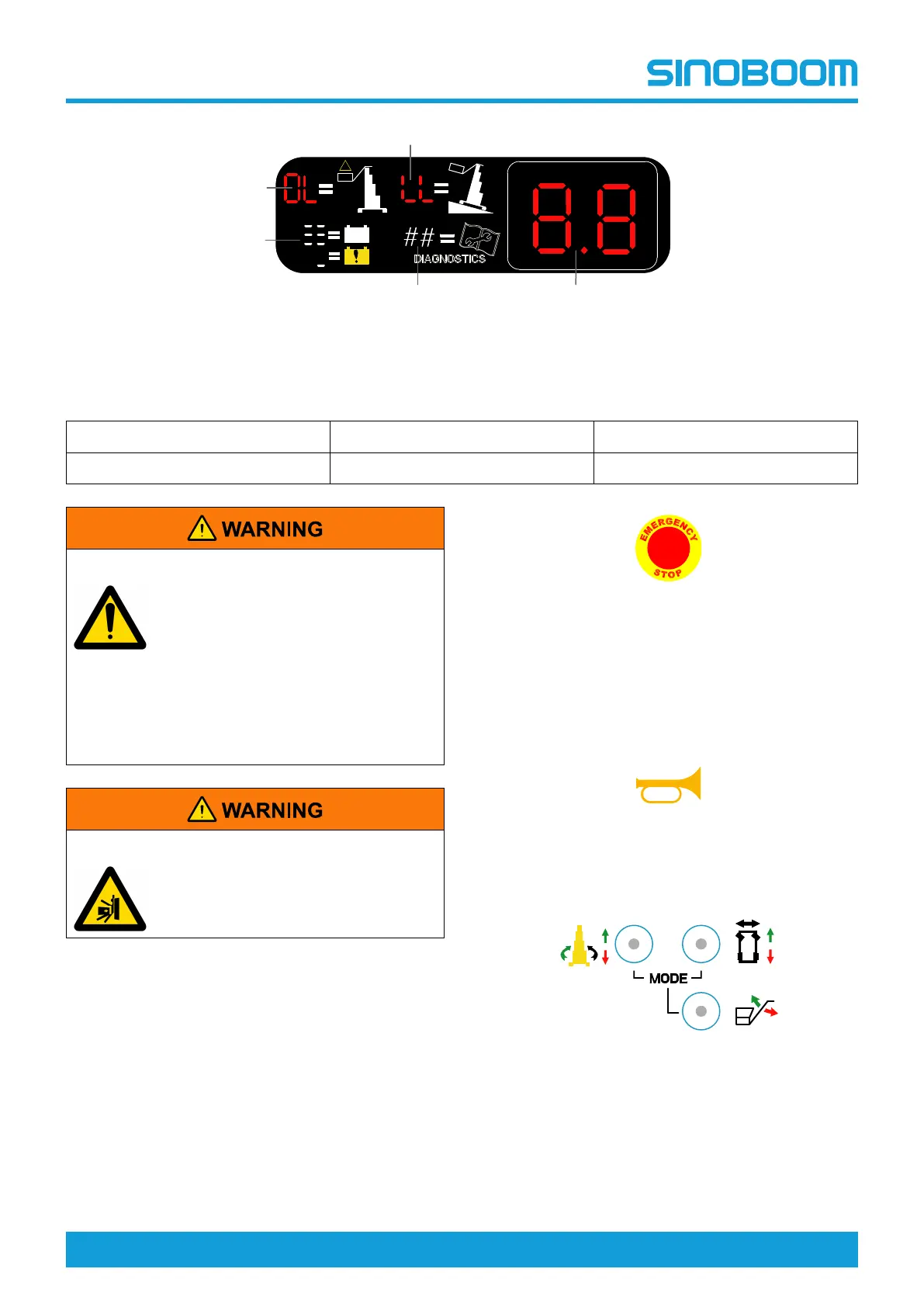

Figure 6-3 Platform controls display
Table 6-3
1. Overload symbol (OL) 3. Tilt symbol (LL) 5. Alarm display
2.Battery level symbol 4. Fault code
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate from the ground
controls if there are still persons
on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
COLLISION HAZARD
Before operating the boom, ensure
the area near or under the platform is
clear of persons or obstructions.
Preparation
1. Turn the key switch at ground controls to the
platform control position.
2. Pull out the emergency stop buttons at ground and
platform contorls to ON position.
3. Be sure the associated indicator lights are on and
no alarm messages shown on the display.
Emergency stop button
1. Push in the emergency stop button at platform
controls to OFF position, all functions should not
operate.
2. Pull out the emergency stop button at platform
controls to ON position.
Horn button
Push the horn button, the horn should sound to alert
personnel around.
Function button
Push the function button before activating the
associated function, otherwise the function should
not operate.
Enable button
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
技术要求
1、PVC 不干胶自粘面膜。
2、面膜底色为黑色。
3、颜色要求：上下台切换图标中底座颜色为蓝色，转换方向图案黄色，叉子及平台颜色为黄色，
升降切换图标底座颜色为蓝色，上升图案黄色，下降图案为红色，
急停开关图标底色为黄色、字体颜色为红色,小时指示图标为绿色。
4、所有孔尺寸公差为±0.1；
1
1
2
2
A A
B B
50.0
88.0
更改文件号
审 核
工 艺
处数
标记
设 计
日 期
共 页
签 字
标准化
日期
图 样 标 记
第 页
比 例
重 量
0.45
李申奥
银友国
刘奇志
2018.11.15
1
刘晓
面膜
101013060005
1:1
1
101013060005
To Next Page
