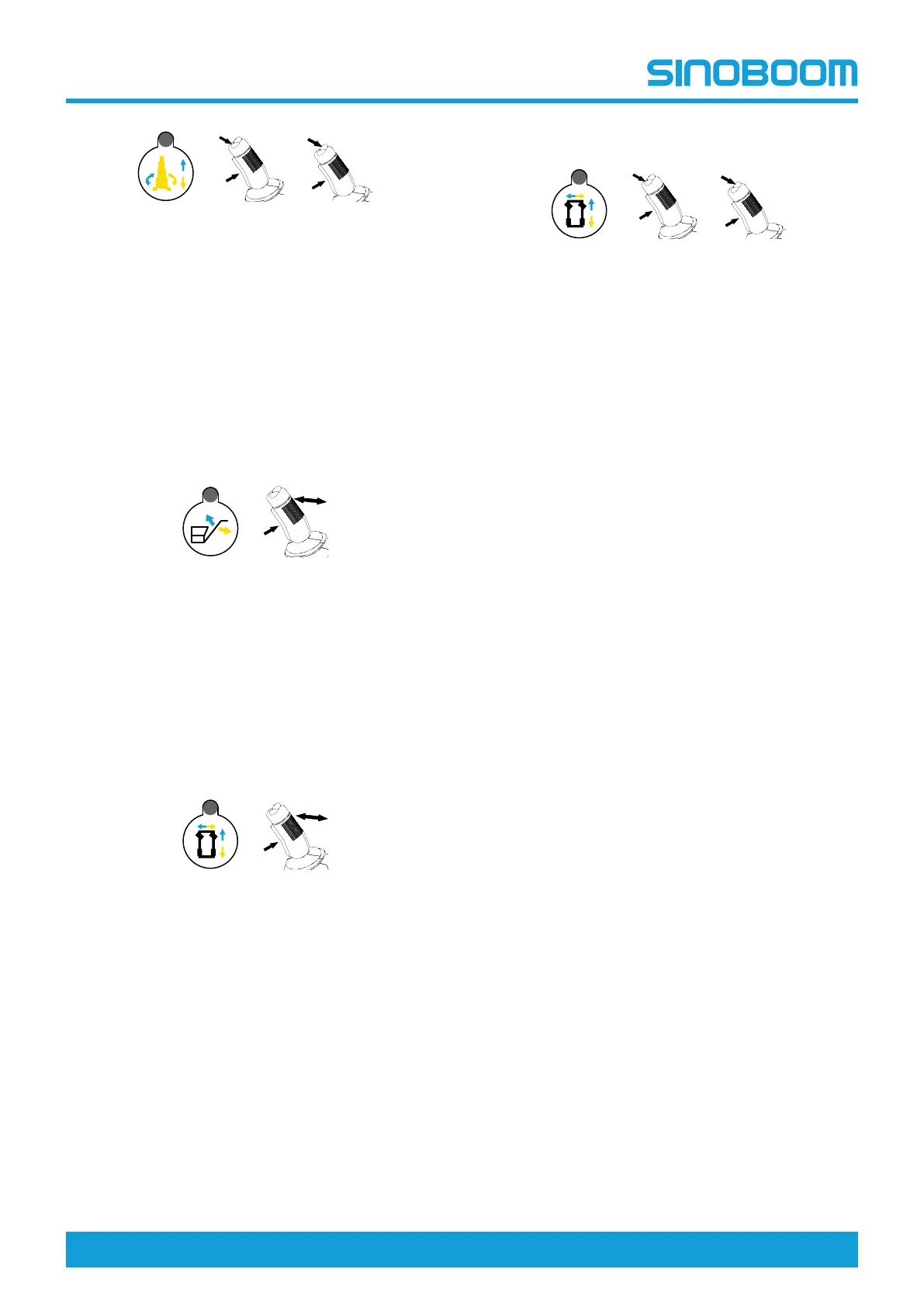

PRE-OPERATION FUNCTION TEST
1. Push the main boom lift/turntable rotate function
button, and then the indicator light will turn green.
2. Press and hold the enable button on the joystick,
and press on the left side of the rocker switch on
top of the joystick, the turntable should rotate to
the left.
3. Press and hold the enable button on the joystick,
and press on the right side of the rocker switch on
top of the joystick, the turntable should rotate to
the right.
Jib boom up/down
1. Push the jib boom lift function button, and then
the indicator light will turn green.
2. Press and hold the enable button on the joystick,
and slowly push forward the joystick, the jib boom
should rise.
3. Press and hold the enable button on the joystick,
slowly pull backward the joystick, the jib boom
should descend.
Drive function
1. Push the drive function button, and then the
indicator light will turn green.
2. Press and hold the enable button on the joystick,
slowly push forward the joystick, the machine
should drive forward.
3. Release the joystick, the machine should come to
an immediate stop.
4. Press and hold the enable button on the joystick,
slowly pull backward the joystick, the machine
should drive reverse.
5. Release the joystick, the machine should come to
an immediate stop.
Note: The drive speed is in direct proportion to the
joystick stroke.
Steer function
1. Push the drive function button, and then the
indicator light will turn green.
2. Press and hold the enable button on the joystick,
and press on the left side of the rocker switch on
top of the joystick, the machine should steer left.
3. Press and hold the enable button on the joystick,
and press on the right side of the rocker switch on
top of the joystick, the machine should steer right.
TESTING THE DRIVE SPEED
1. Draw two lines on the ground as reference, with the
spacing of the two lines being 30m (98ft 5in)
2. Start the machine in stowed position.
3. Push the drive function button, then press and hold
the enable button on the joystick and slowly deflect
forward the joystick to the full stroke.
4. When the max drive speed is achieved and the front
wheels reach the first line, start the time counting.
5. When the front wheels reach the second line, stop
the time counting, and slowly bring the machine to a
stop.
6. The time counted should be 27s.
7. If the time counted is less than 27s, immediately
stop the testing and tag the machine, otherwise, go
on to the next step.
8. Raise the mast approx. 1m (3ft 3in).
9. Push the drive function button, then press and hold
the enable button on the joystick and slowly deflect
forward the joystick to the full stroke.
10. When the max drive speed is achieved and the front
wheels reach the first line, start the time counting.
11. When the front wheels reach the second line, stop
the time counting, and slowly bring the machine to a
stop.
12. The time counted should be 180s.
13. If the time counted is less than 180s, immediately
stop the testing and tag the machine.
