TRANSPORTING AND LIFTING THE MACHINE
LIFTING THE MACHINE
WITH A FORKLIFT
Follow these requirements when lifting the machine by
forklift:
1. Make sure the extending platform, controller and
chassis components are stable. Remove all loose
parts from the machine.
2. Fully lower the platform. Keep the platform down
during transportation.

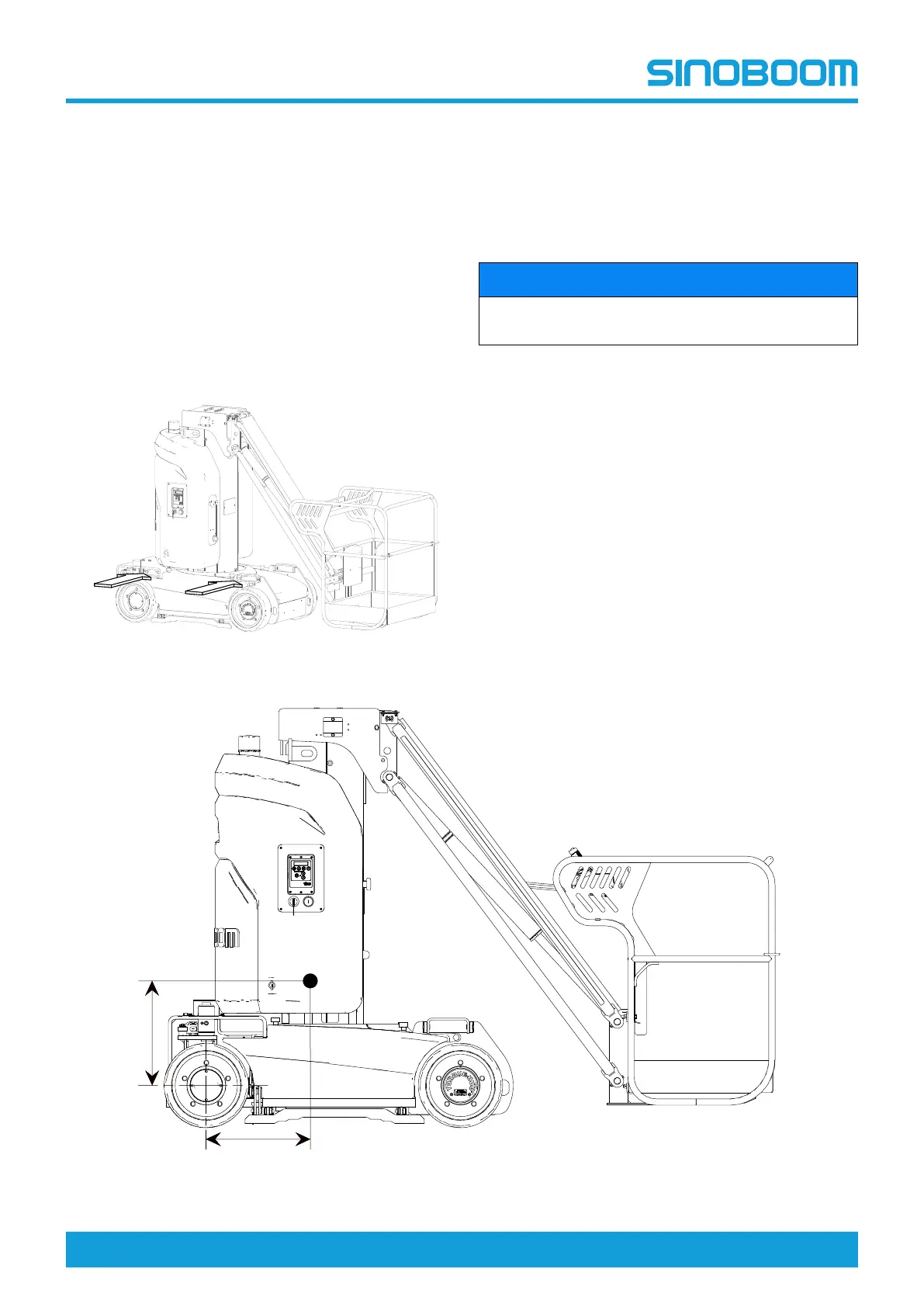

3. Locate the forklift slots on the side of the chassis,
and align the forklift fork with the forklift slots.
Figure 8-1
4. Drive forward to fully insert the fork frame.
5. Lift the machine by 16 in. (0.4 m) and then tilt the
fork frame backward slightly to keep the machine
stable.
6. Keep the machine horizontal when lowering the fork
frame.
NOTICE
Failure to use the forklift slot while lifting machine
may result in component damage.
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. The machine must be in stowed position while lifting
the machine with a crane.
2. Ensure the boom is positioned in the same direction
as the chassis travels.
3. Remove all loose parts of the machine.
4. Determine the center of gravity of the machine (X:
513mm/1ft 8.2in; Y: 510mm/1ft 8.1in).
