OPERATING THE MACHINE
GTTZ10EJ Operation Manual 7-3 © Mar. 2022

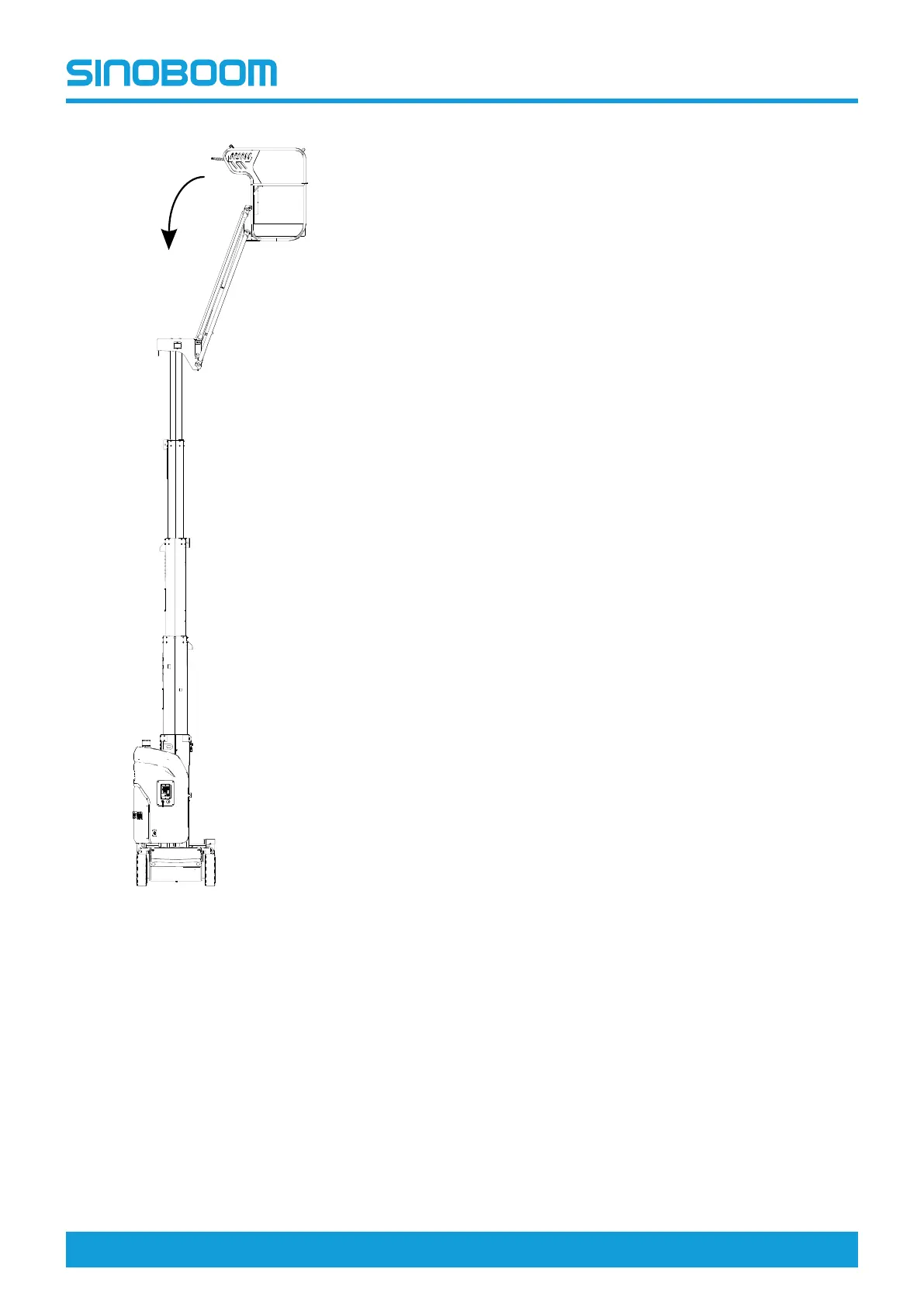

Figure 7-2 Position of least
backward stability
1. Mast fully raised;
2. Jib boom fully raised；
3. Turntable rotated 90°;
4. The machine will tip over in the direction as indicated by the
arrow if overloaded or operated beyond the limits of the
maximum operating slope.
EMERGENCY STOP
• Push in the emergency stop button at the platform
or ground controls to OFF position, all machine
functions will not operate.
• Push in the power disconnect switch at the left
turntable cover to OFF position, the system will be
disconnected from power supply and all machine
function will not operate. The power disconnect
switch is located as shown in the Figure below.
