14
14. Transportation
If you want to transport this machine to other district, you
must take apart all the part that you have installed. If
possible use original carton for shipping.

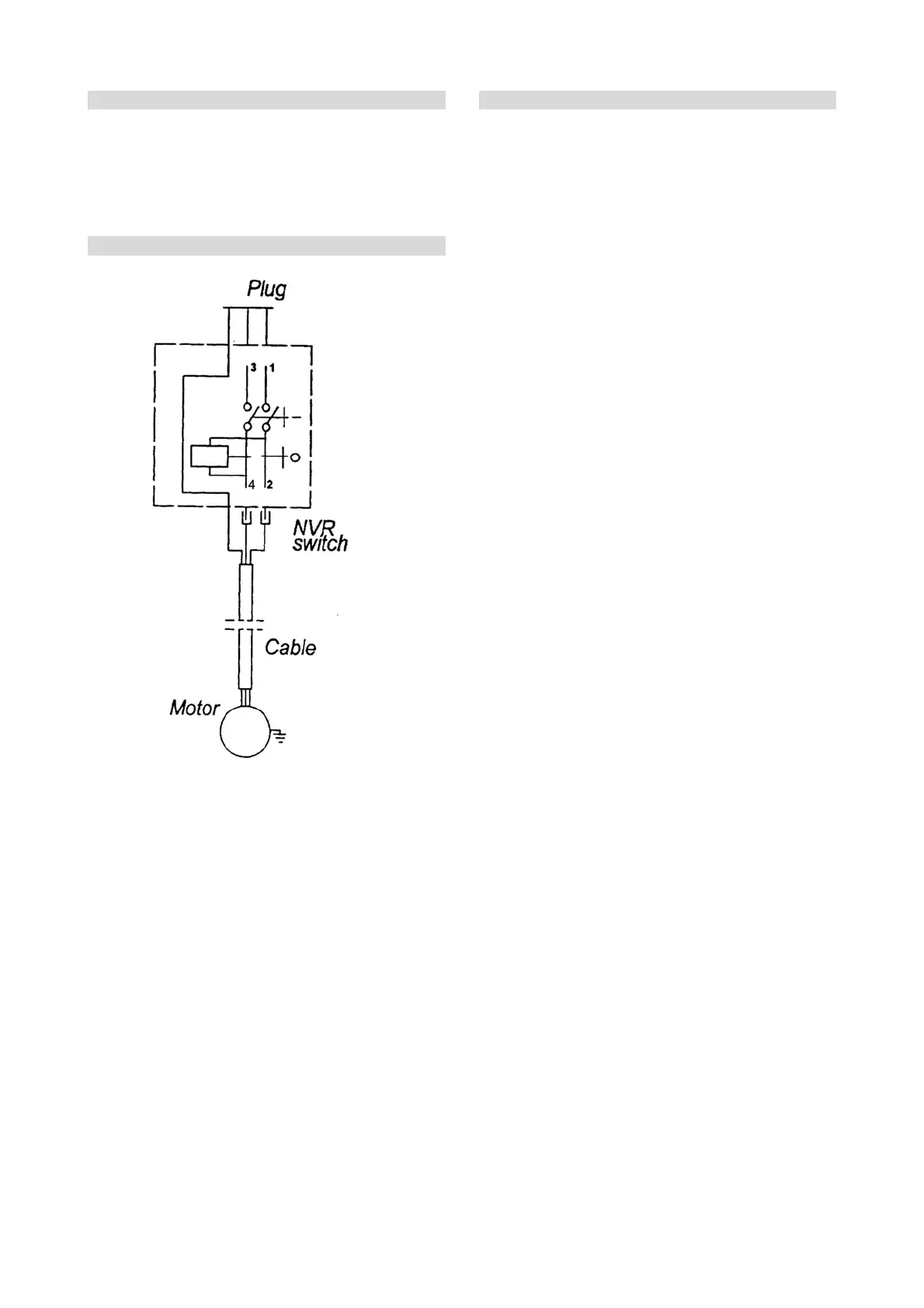

15. Circuit diagrams
16. Instruction for thermo cutout in motor
There is thermo cutout inside the motor, this device
protect motor from being damaged in high temperature’s
condition. When the motor’s temperature is too high the
fuse will shut off automatically, you should check the
reasons to cause the high temperature or be carried out
by qualified specialists at once. The thermo cutout will
return to normal automatically once the temperature low
down.
The end user shall provide a 10A over-current protection
device in supply system for this machine.
