8
5. Adjust the rear and front rails to keep the rip fence
1mm above the table.
6. Place the rip fence against the saw blade, check the
red line of scale mount right lens with the scale “0” on
the front rail.
7. Lock down the rip fence handle after adjusting the rip
fence to the proper position.
7.6 Installing blade guard

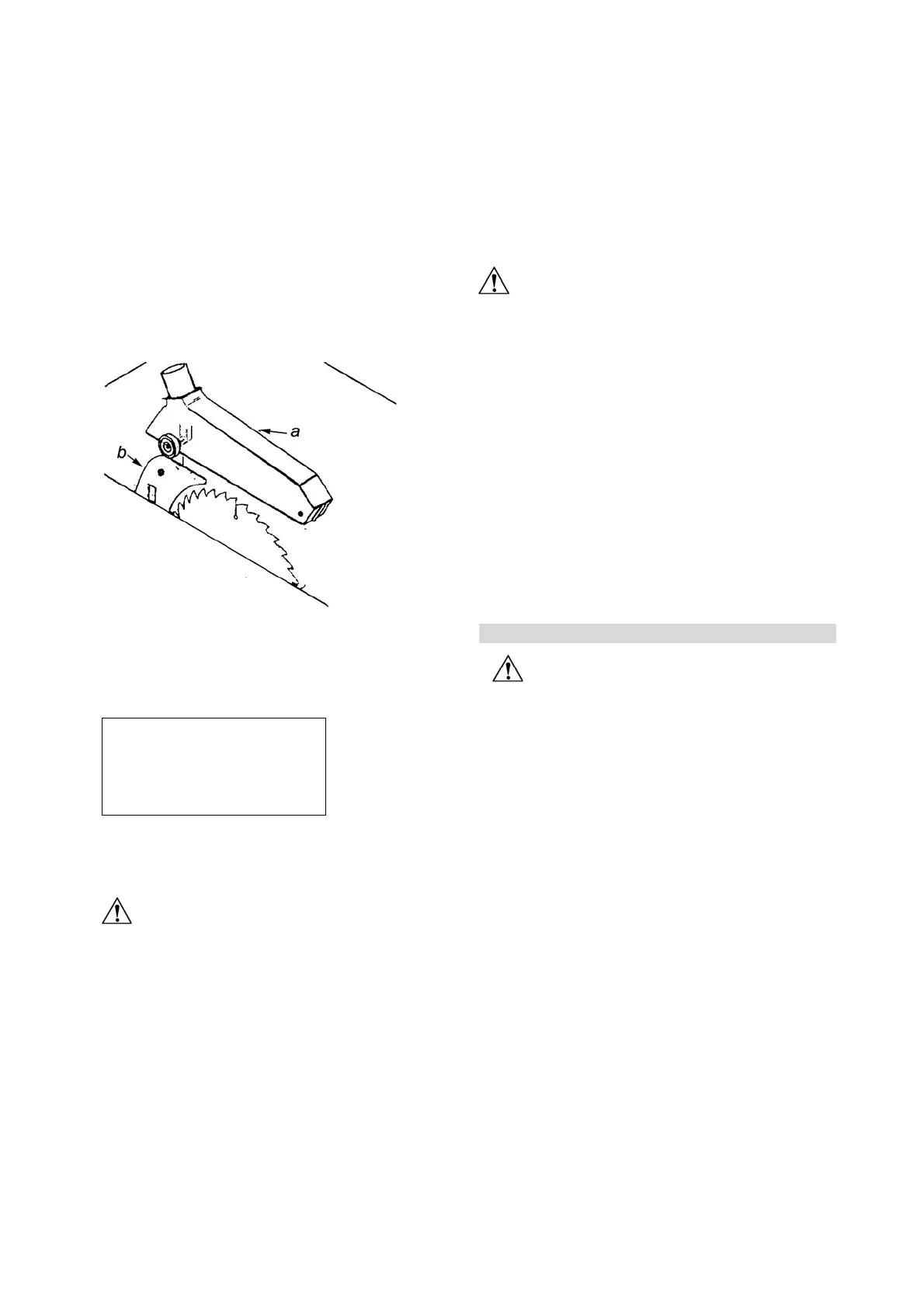

Installing blade guard (a) on riving knife (b).
Riving knife information
8.7 Connection of dust collector
Danger!
Dust of certain timber species (e.g. beech, oak, ash)
can cause cancer when inhaled. Use a suitable dust
collector when working in enclosed spaces, the dust
collector must meet the following requirements:
- Hoses must fit the outer diameter of the dust
extraction ports (blade guard 30mm and the chip
case 100mm)
- Air flow volume ≥ 460m
3
/h;
- Volume at dust extraction port of saw:≥530Pa
- Air speed at dust extraction port of saw:≥ 20m/s;
Operation without a dust collector is only possible:
- outdoors;
- for short-term operation;
(up to a maximum of 30 minutes)
-with dust respirator.
8.8 Mains connection
Danger! Electrical Hazard
Operate saw in dry environment only.
Operate saw only on a power source matching
the following requirements:
- mains voltage and system frequency conform
to the voltage and frequency shown on the
saw’s name plate;
- outlets properly installed, earthed and tested.
Position power supply cable so it does not
interfere with the work and is not damaged.
Protect power supply cable from heat, aggressive
liquids and sharp edges.
Do not pull on power supply cable to unplug.
9. Operation
Rrisk of injury!
This saw may only be operated by one persons at
a time. Other persons may stay only at a distance
from the saw for the purpose of feeding or
removing stock.
Before starting work check to see that the
following are in proper working order:
power source range: 230v±10%, 50hz ± 1hz
environment humidity requirement for operation:
≤50% @40℃ or 90% @20℃
environment humidity requirement for storage and
transport: -25℃～55℃
- power cable and plug;
- ON/OFF switch;
- riving knife;
- blade guard;
- push stick;
Use personal protection gear;
- dust respirator;
- hearing protection;
- safety goggles.
Thickness: 2.8mm
Blade Diameter: 254mm
Slot Width: 8.2mm
