Warning:
Do not lift the saw until without help.
The saw blade is too heavy to lift without help,
customers should seek assistance from staff to
lift this item.

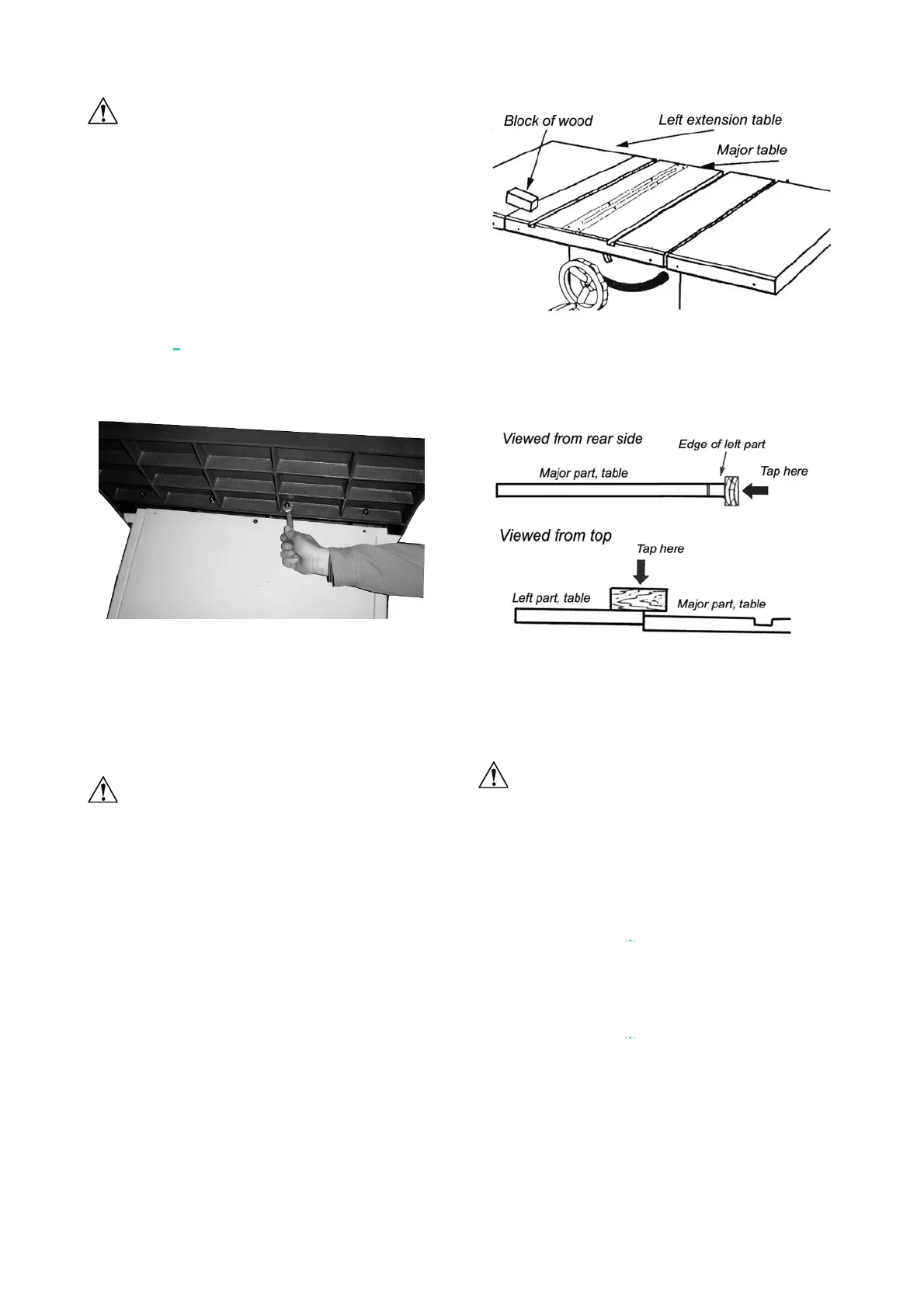

8.2 Installing the extension table
1. Take off the extension table from the major carton,
put 8-M8x
20 hex head screws with 8mm washer in
holes, so the screw heads extend outward 10mm.
Warning:
Installing extension table needs another- man’s help.
2. Lift the extension table slightly, and sure four screws up
on holes of major table.
3. Center the extension table over the edges and tap it.
Check the surface alignment.
4. Tighten 8-screws with a 12mm wrench.
Caution
The left and right extension table can be exchanged.
8.3 Installing the front rail
Take out the front rail from rip fence carton.
Warning:
The front and rear rails must be carefully aligned
to reduce the risk of kickback, which can cause
serious injury.
Install the front rail needs following hardware:
5-square head bolt M8x
25
5-8mm flat washer
5-M8hex nuts
Right and left end cap for front rail
6-tapping screw ST3.9x
12
1. Insert the 5 square head bolts into the table and
extension, so the bolt heads extend out 6mm.
2. Loosely attach a flat washer and a hex nut to each
bolt.
