5

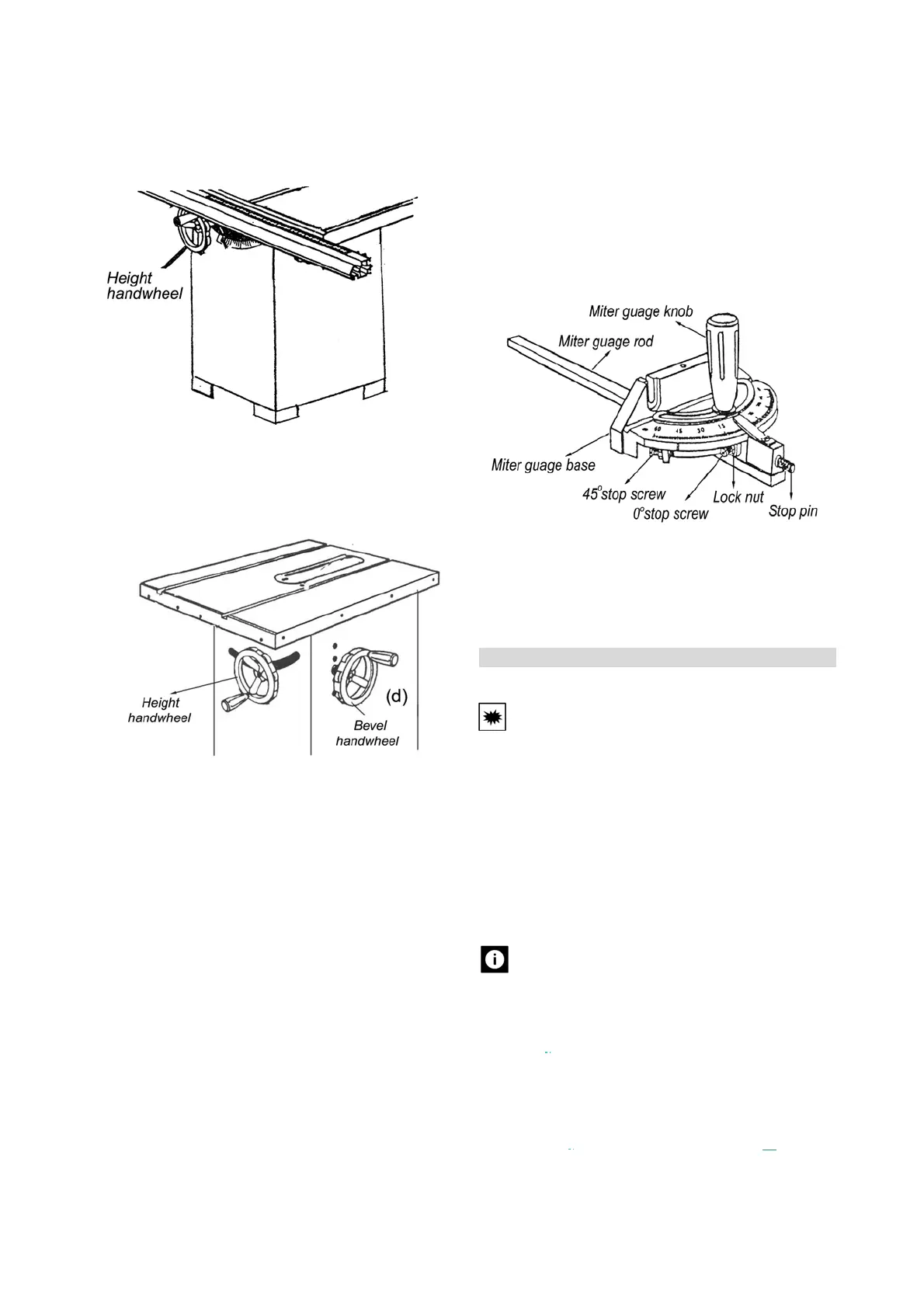

Height hand-wheel for setting the depth of cut
The depth of cut can be adjusted by turning the
hand-wheel
Bevel hand-wheel for blade tilt setting
With the handwheel (d) the saw blade can be steplessly
tilted to the right from 0° (vertical) through 45°.
Rip fence
The rip fence slides on the saw table’s front rail and rear
rail.
Adjusting the miter gage
You can set the mitre gage at 0° and plus or minus 45°
with the mitre gage stop pin and adjustable stop screws.
Note: the mitre gage provides close accuracy in angled
cuts. For very close tolerances, test cuts are
recommended.
z Loosen knob and pull out on stop pin to rotate mitre
gage base past atop screws.
z Loosen the lock nut of the 0° stop screws at the stop
pin with an 8 mm wrench.
z Place a 90° square against the mitre gage rod and
the mitre gage base.
z If the rod is not square, loosen the knob, adjust the
rod, and tighten the knob.
z Adjust the 0° stop screw until it rests against the stop
pin.
z Adjust the plus and minus 45° stop screws using a
45° triangle and the steps above.
8. Initial Operation
Caution:
Before changing the fuse, you must make sure the
power cable be unplugged in order to avoid injury.
8.1 Assembling the box stand
Unpacking the master carton, take off the plastic foam and
find four pieces stand panels, four stand level feet and a
bag of hardware.
Note:
Remaining hardware from this bag is used for assembly
box stand.
Use 8-M8x
12 hexagon head bolt with 16-￠8 washer,
8-M8 nut tighten the front panel and side panel, then
tighten the rear panel and side panel.
Place 4-stand level foot on the down side of stand, then
also use 8-M8x12 hexagon head bolt with 16-￠8 washer,
8-M8 nut tighten the stand and level foot.
