Fig. 6-14

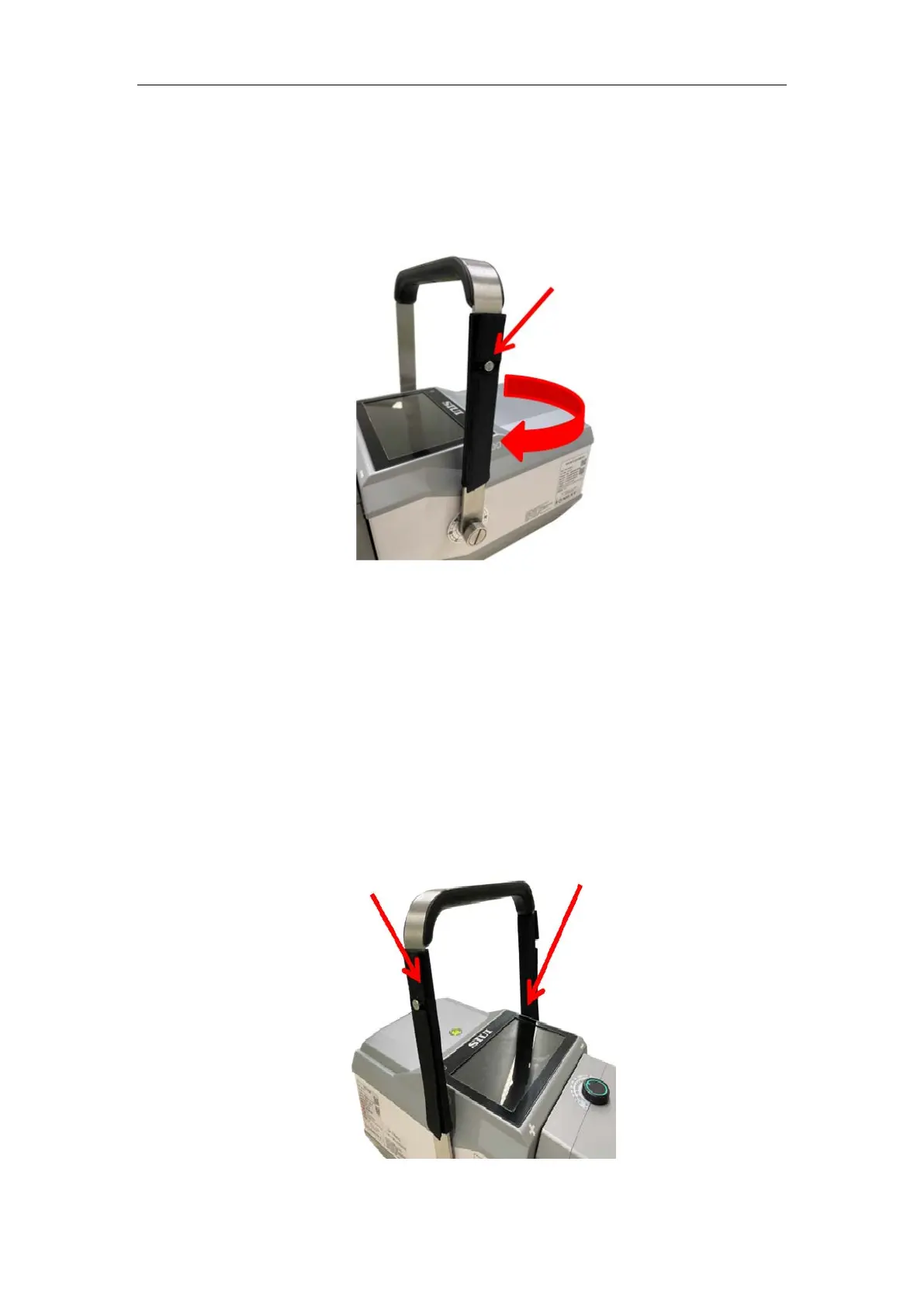

d) Fold the hook side of the handle pad inward. The notch shall bypass the screw on
the handle.See Fig. 6-15.
Fig. 6-15
e) After finishing the installation of the first handle pad, install the second handle pad.
The second handle pad is symmetrical with the first one, and it will be installed on
the right side of the carry handle of the portable X-ray unitfollowing steps b)~ d). Pay
attention that the orientation of Velcro openingof the left and right handle pads shall
be the same as the collimator of the portable X-ray unit. See Fig. 6-16.
Hookside
folded
Handle pad 1
Handle pad 2
