6.8 Installation of Handle Pads(Option)
a) Prepare one portable X-ray unit and two handle pads.

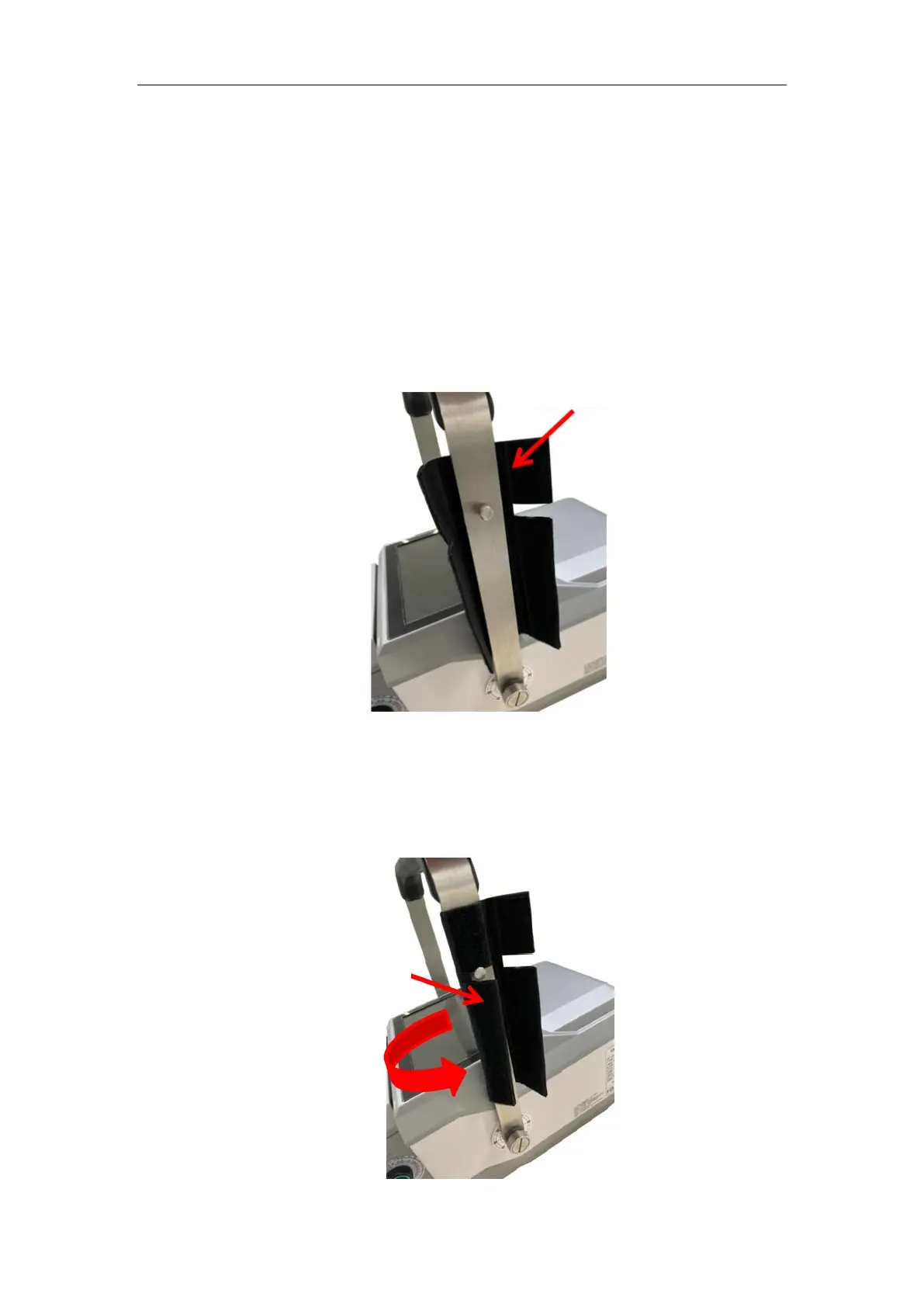

b) Firstalign one handle pad against the left handle of the portable X-ray unit. Be noted
thatthe hookside of the handle padshall face outward. SeeFig. 6-13.
Fig. 6-13
c) Fold the loop side of the handle pad inward. The notch shall bypass the screw on
the handle. See Fig. 6-14.
range of mAs will be decreased.
Hookside outward
Loop side
folded
