1.7 Indicator Definition
The status indicators on MK15E transmitter and Air Unit use three different colors
and different blinking frequencies to indicate the system’s working or abnormal
status.

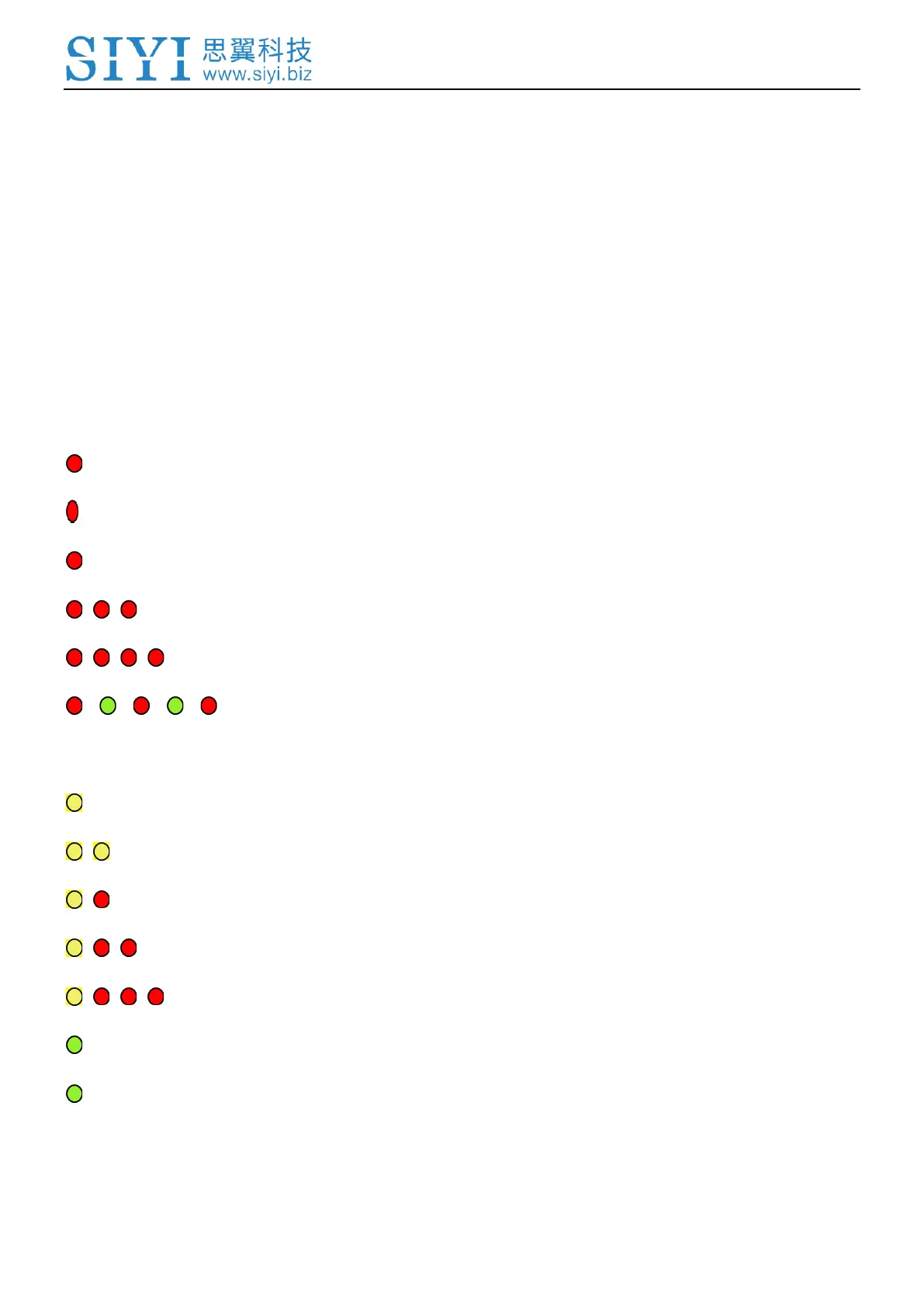

1.7.1 Transmitter Indicator
Solid Red: No communication between transmitter and Air Unit.
Fast Red Blinks: Transmitter is binding to Air Unit.
Slow Red Blinks: Firmware does not match.
Triple Red Blinks: Image transmission initialization failed.
Four Red Blinks: Transmitter requires calibration.
Red-Green-Red-Green-Red Blinks: Unexpected power off of MK15
Android system.
Slow Yellow Blinks: Transmitter power voltage abnormal.
Two Yellow Blinks: Transmitter Bluetooth is not identified.
Yellow-Red Blinks: Transmitter high-temperature alert, level one.
Yellow-Red-Red Blinks: Transmitter high-temperature alert, level two.
Yellow-Red Blinks: Transmitter high-temperature alert, level three.
Solid Green: Perfect communication, 100% data package received.
Green Blinks: Blinking speed indicates MK15 system’s signal strength. The faster it
blinks, the worse the signal is.
