SKF Multilog On-line System IMx-16Plus
User Manual
Revision Letter A
To dismount (remove any connectors/wiring), then snap the lower part of the bracket
from the DIN rail and lift it up a little. The IMx-16Plus is now free to be lifted away
from the DIN rail.
2.3 Power requirements
The SKF Multilog IMx-16Plus is designed to be powered from a 24 to 48 V DC
supply, typical power consumption 10 W. The supply to the device should be fused at
2 A, slow-blow, refer 3.2.2.
On the IMx-16Plus top cover, there are two sets of DC + and -, terminals. The
incoming DC supply for the IMx-16Plus, should be connected only to the lower set of
terminals, as highlighted in green, Figure 4:

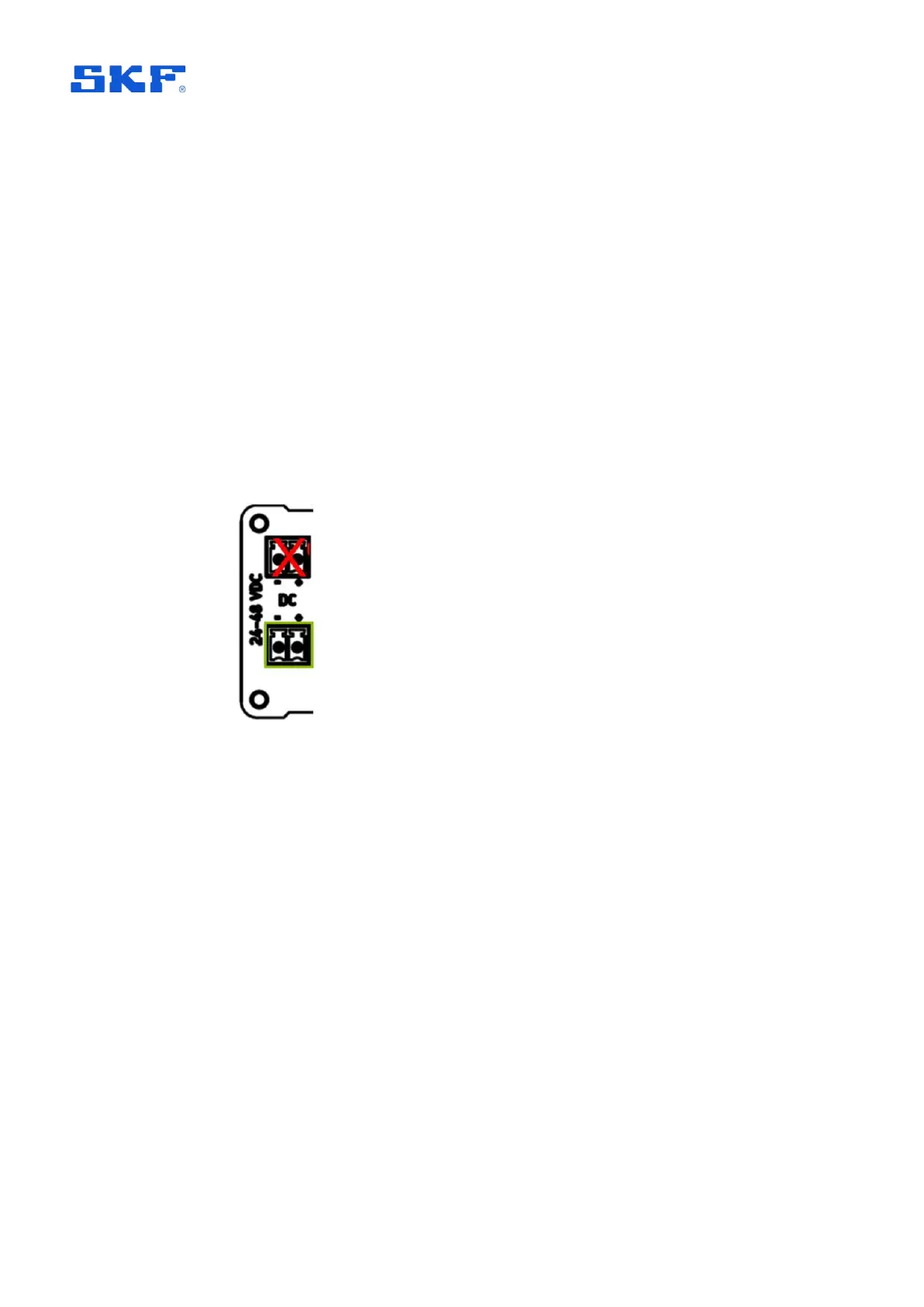

Figure 4 Location of the IMx-16Plus, power terminals
The incoming DC supply is isolated from GND (chassis).
Refer also to the important safety warnings on the following page.
Note that (except in specific circumstances), the IMx-16Plus also supports PoE
(Power over Ethernet). This can be used as either a single or as a redundant power
source, refer 2.5.3 and 3.2.2.
SKF can supply a DIN rail mounting power supply under part number reference
CMON 4137. This provides a 24V DC output suitable for an IMx-8 or an IMx-16Plus
and has a wide-ranging AC/DC input, see 3.2.2.
