3.4 Enclosure and cabinet mechanical drawings
3.4.1 IMx-16Plus enclosure
The immediate IP30 enclosure for the SKF Multilog IMx-16Plus is shown in, Figure
19, below.

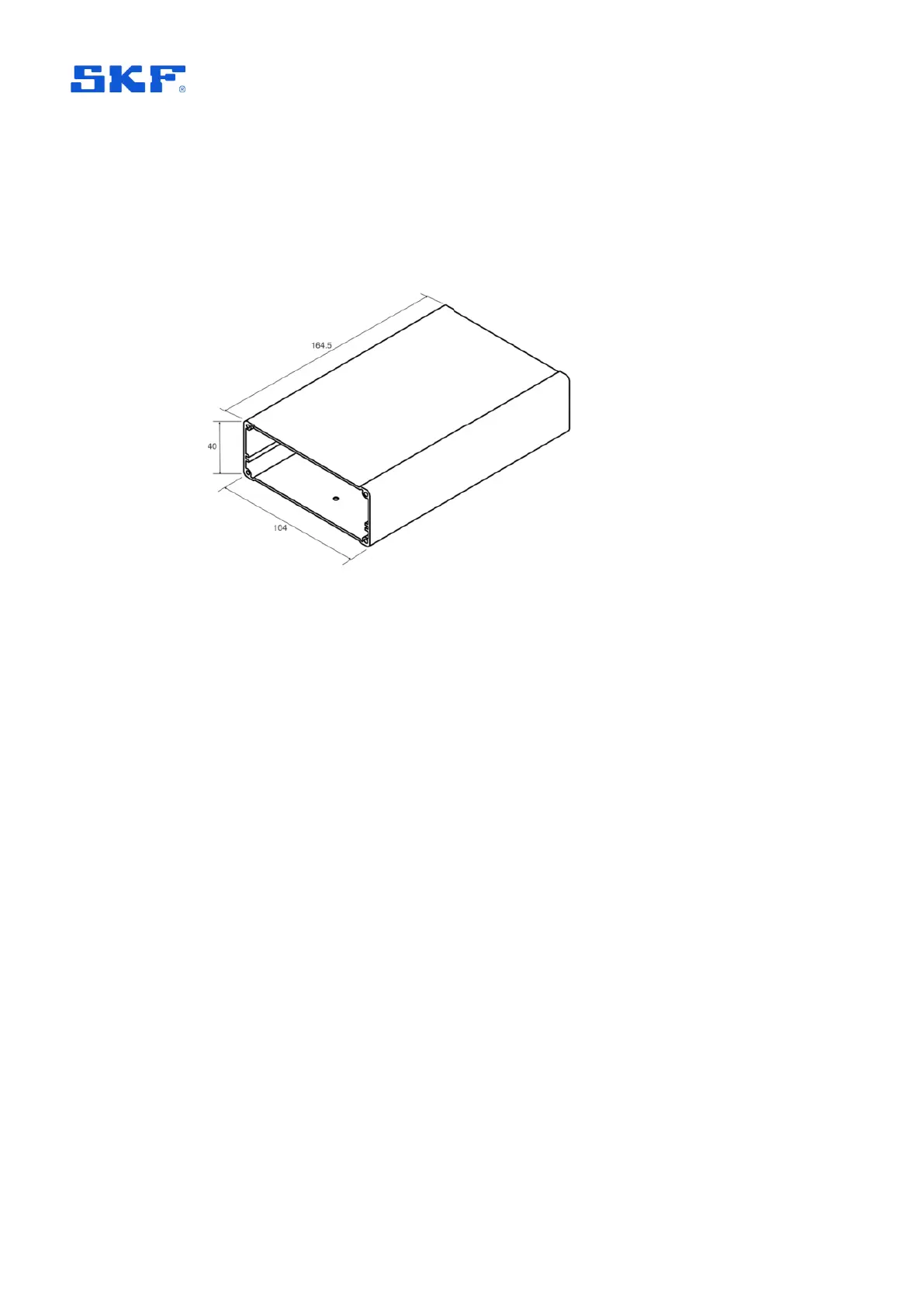

Figure 19 IMx-16Plus enclosure drawing
Note that the height dimension shown here (164,5 mm), excludes end caps and their
mounting screws, as also connectors, dongle etc. Refer also to product
specifications, section 3.2.1, for overall dimensions and further notes.
3.4.2 IMx-16Plus IP65 cabinets (optional)
The SKF Multilog IMx-16Plus
is usually housed within an IP65 cabinet. Two versions
of these optional cabinets are available from SKF:
CMON 4150: with a pre-drilled gland area
CMON 4151: without a pre-drilled gland area
In the pre-drilled cabinet, the lower (short) wall is predrilled for 17 glands (refer to
Figure 20 for the drilling pattern/arrangement). One entry for a M25 x 1,5 mm gland
(shown as drawing item 14/15) and sixteen entries for M12 x 1,5 glands (typified by
drawing item 16/17), are provided. All (17) cable entries are supplied with blind plugs
fitted, only remove those that will be actively used for cabling and cable glands.
