SKF Multilog On-line System IMx-16Plus
User Manual
Revision Letter A
55 (66)

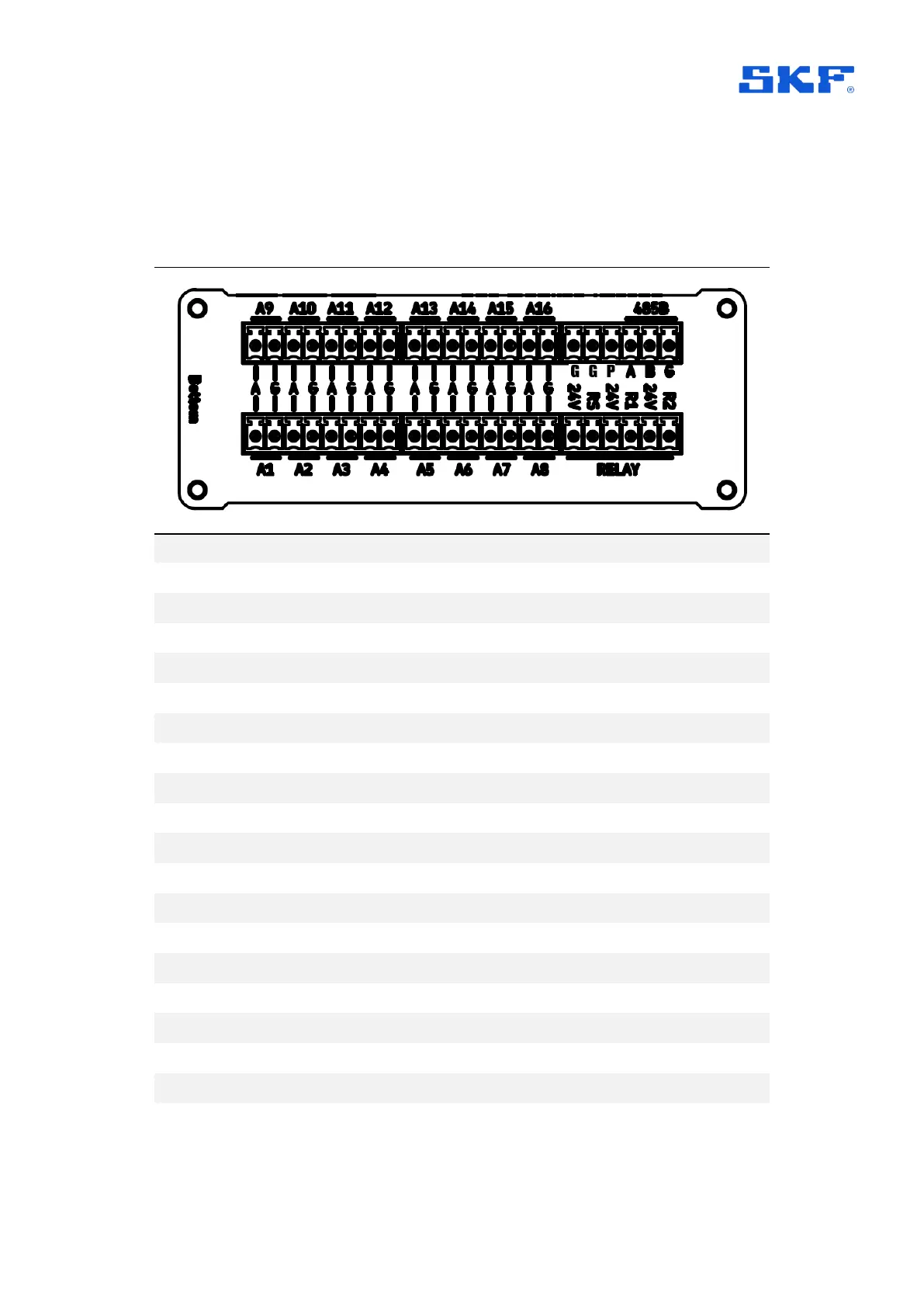

3.3.2 IMx-16Plus bottom end cap
Table 6 IMx-16Plus bottom end cap connections
Terminal
Description
A1-A8
Analogue inputs 1 to 8 (Analogue, Ground terminals for each)
Connect signal to A
A9-A16*
Analogue inputs 9 to 16 (Analogue, Ground terminals for each)
Connect signal to A
R2
Relay 2, relay driver output (open collector)
24V
24 V DC power for relay coil
R1
Relay 1, relay driver output (open collector)
24V
24 V DC power for relay coil
RS
System relay, relay driver output (open collector)
24V
24 V DC power for relay coil
G (G)
Two GND connections (general use)
P
24 V DC power (can be used to power the optional GPS module)
485B
A/B connections are not in use. G (GND) can be used.
* A9 to A16 can be used for 2-wire PT1000 temperature sensors
Demountable terminal connectors
For the bottom connectors, four 8-way (A1 to A16) and two 6-way are provided.
