PRODUCT SPECIFICATIONS
GPS module (optional)
SKF Multilog On-line System IMx-16Plus
User Manual
Revision Letter A
It has a single, central, anti-rotation mounting that requires a 15 by 15 mm square
entry through the enclosure wall (maximum corner radius of 1 mm). Externally the
maximum installed dimensions of the circular antenna and gasket part are 146 mm in
diameter by 32 mm high.
The 0,5 m integral cable has appropriate connectors for the LTE 1, LTE 2 and Wi-Fi
connections on the IMx-16Plus.The following frequencies/standards are supported:
• AMPS 850 MHz
• GSM 900 MHz
• 3G UMTS 2,1 GHz
• Wi-Fi 2,4 GHz
• DCS 1800 MHz
• PCS 1900 MHz
• LTE 2,6 GHz
• 4G/LTE 791-960, 1710-2690 MHz
Note that Bluetooth support in the IMx-16Plus remains via the USB Bluetooth dongle
and not the optional antenna. This antenna does not support the 699 to 791 MHz
range (typically North American LTE).
3.6 GPS module (optional)
The GPS module, CMON 4139, is connected to the IMx-16Plus via a 5-metre integral
cable and should be fitted externally to the cabinet in a location that allows satellite
tracking. An M12 cable gland is included. The overall dimensions and fixing centres
are shown in the figure below.

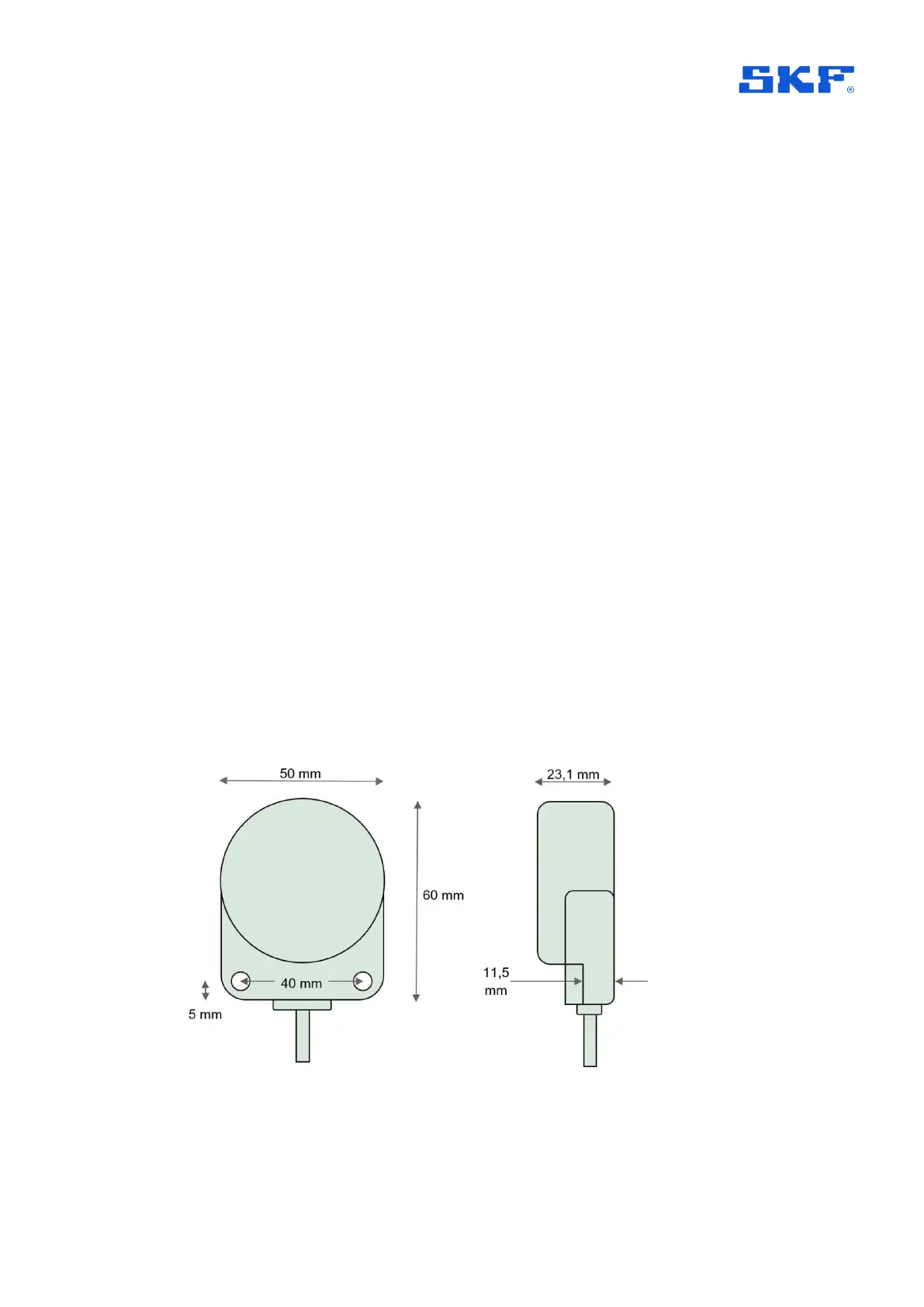

Figure 23 GPS module dimensions
The GPS module is designed to be fitted to a flat mounting surface and has two
clearance holes for M5 fixings, 40 mm pitch, which straddle the cable exit.
