PRODUCT SPECIFICATIONS
Connector details
54 (63)
SKF Multilog On-line System IMx-8/IMx-8Plus
User Manual
Revision E

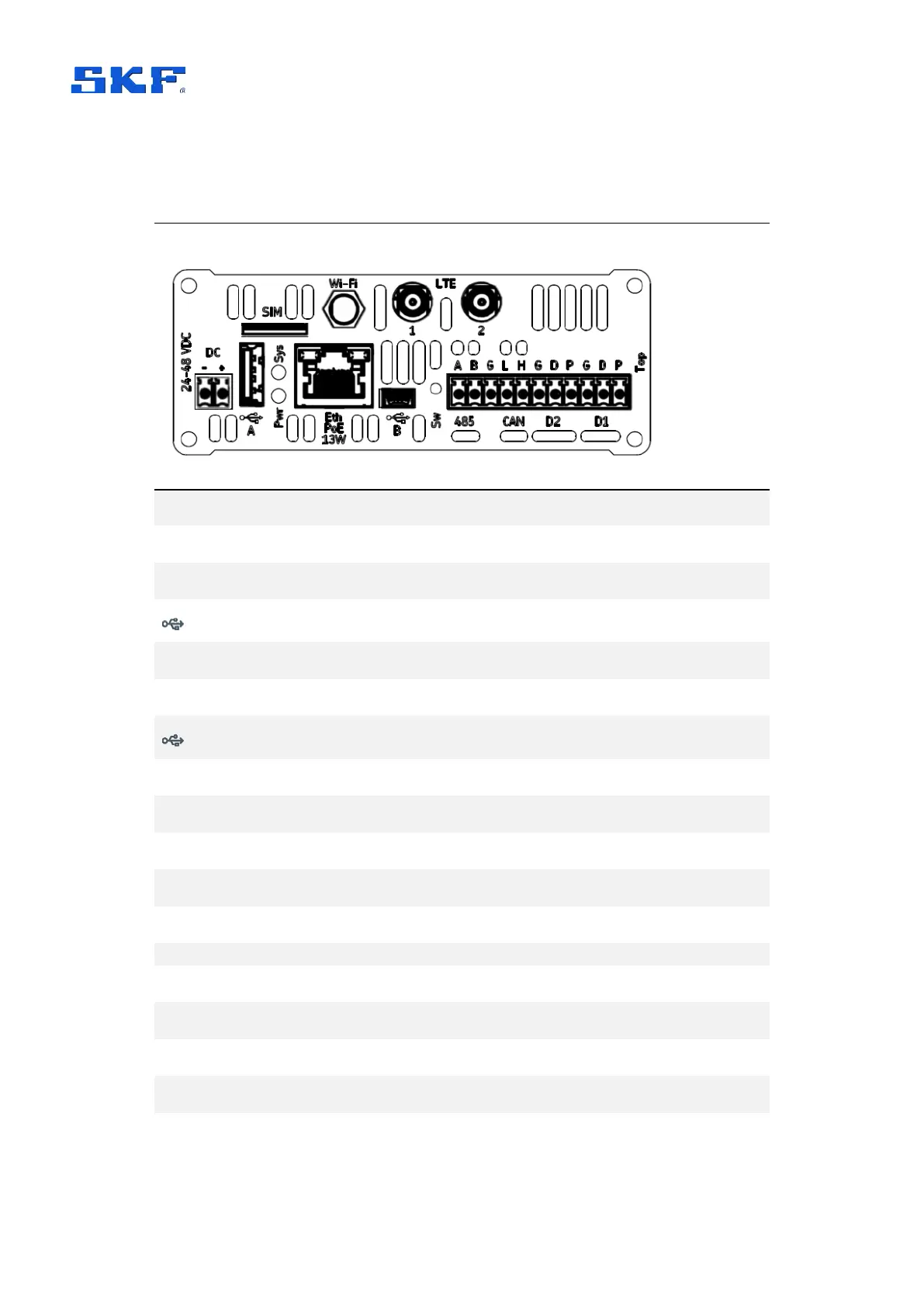

3.3.3 IMx-8Plus top end cap
Table 8 IMx-8Plus top end cap connections
Terminal
Description
DC
± for 24–48 V DC supply
SIM
Micro-SIM card slot – refer 2.5.4 for SIM card orientation
A
USB A, host interface, Bluetooth dongle normally fitted here
Eth
RJ45 Ethernet connector with support for Power over Ethernet
Wi-Fi
Connector for an external antenna, where Wi-Fi is used
B
USB mini-B connector, service interface
LTE 1/2
Mobile data connectors for external antenna, where LTE is used
485 A/B
RS485 2-wire A and B terminals
G
Ground connection for use as required by RS485 and/or CAN
CAN L/H
CAN bus for vehicle systems (No current firmware support)
D1 – D2
2 digital inputs (Ground, Digital, Power terminals for each)
LEDs
Pwr – Power (green, normal: on), Sys – System (red, normal: off)
Sw
Switch/push button – rescue button, enters maintenance mode
Demountable terminal connectors
For the top connectors, one 11-way and one 2-way are provided.
