SKF Multilog On-line System IMx-8/IMx-8Plus
User Manual
Revision E

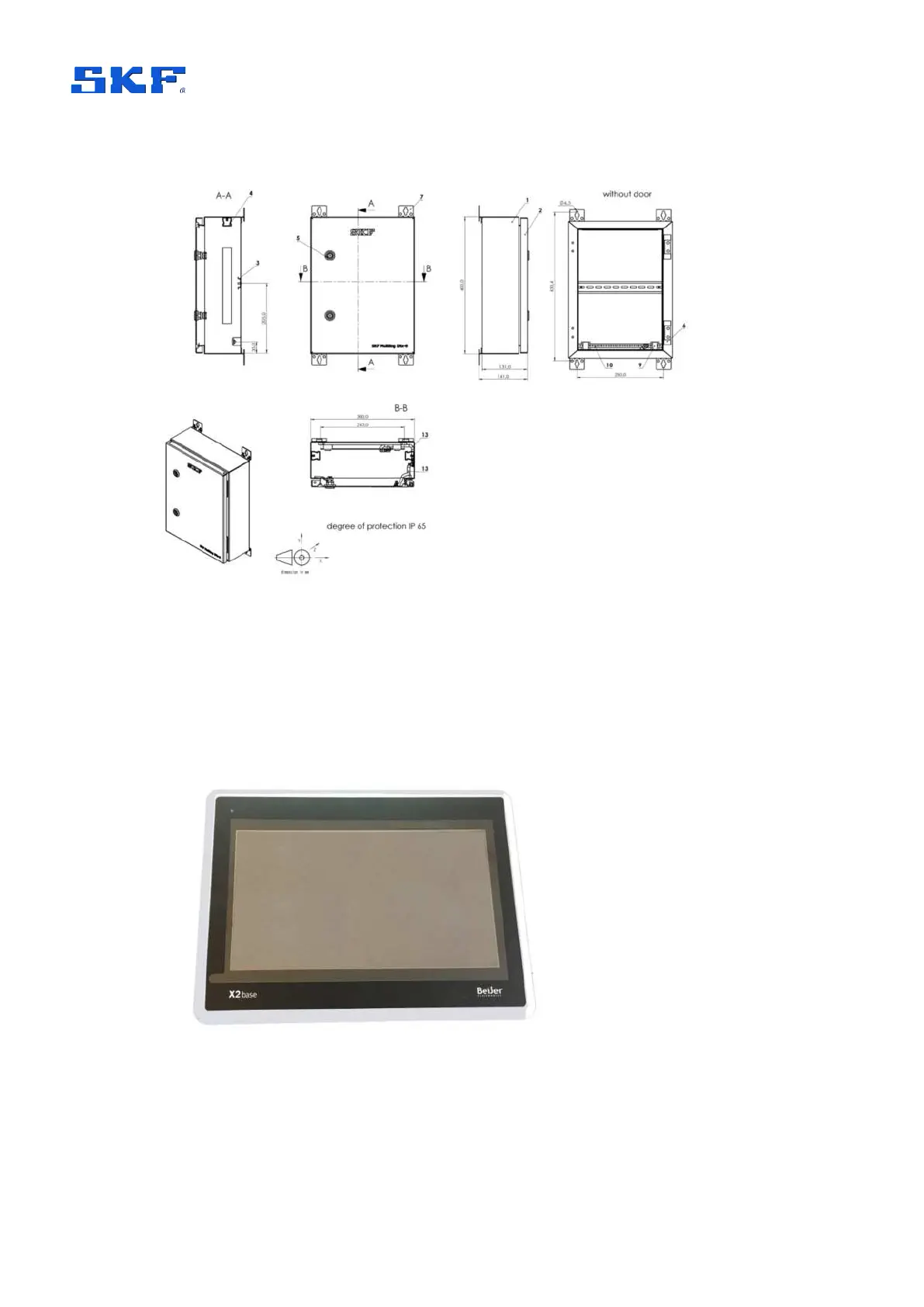

Figure 21 below, illustrates the IP65 cabinet, without pre-drilling.
Figure 21 CMON 4151 cabinet without pre-drilled gland area
3.5 HMI display (optional)
An HMI display that can be integrated into existing cabinets is available to order
under the SKF reference CMON 4146. The HMI display is used for visualization of
monitored machine health such as warning/alarm status and includes both Ethernet
and serial communications capabilities.
Figure 22 HMI display CMON 4146
It is 24 V DC powered (less than 10 W), provides a 7” (diagonal sized) screen and
the external face has an IP65 rating. Overall dimensions are 192 x 146 x 52 mm and
it requires a cut out sized at 186 x 136 mm.

SKF IMx-8 Specifications

General

Brand	SKF
Model	IMx-8
Category	Control Systems
Language	English
